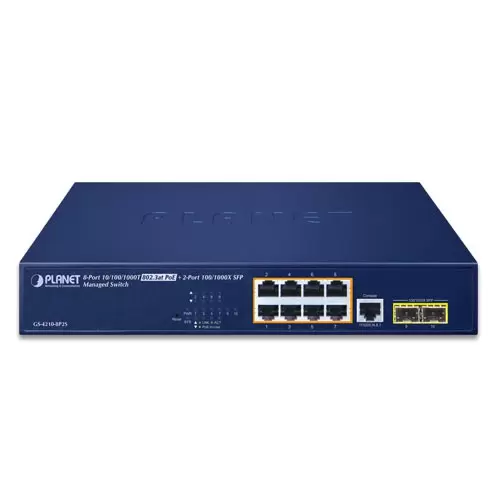

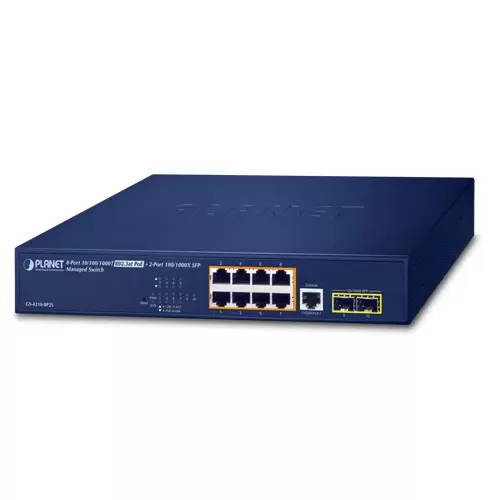

Planet - GS-4210-8P2S - IPv4/IPv6, 8-Port Managed 802.3at POE+ Gigabit Ethernet Switch + 2-Port 100/1000X SFP
Product Overview
The Planet GS-4210-8P2S is a managed Gigabit PoE+ switch with 8 × Gigabit PoE+ ports and 2 × SFP fiber uplink slots, providing a total PoE budget of up to 120W. It supports IPv4/IPv6 management, intelligent PoE features such as PD alive check, scheduled reboot, PoE scheduling, usage monitoring, and Extend mode up to 250 m, along with remote monitoring through PLANET CloudViewer NMS.
Key Configuration
• PoE: 8 × 802.3af/at PoE+ ports, up to 36W per port; 120W total budget (100W at 50°C)
• Ports: 8 × Gigabit RJ45, 2 × 100/1000BASE-X SFP uplinks with DDM support
• Performance: 20Gbps switching capacity, 14.88 Mpps forwarding rate
• Capacity: 8K MAC addresses, 10K jumbo frames, 4.1 Mbit packet buffer
• Size: 330 × 155 × 43.5 mm
• Weight: 1.69 kg
Key Features
8 × PoE+ ports with a 120W power budget, supporting PoE Extend mode up to 250 m, PD alive check, scheduled reboot, power scheduling, and usage monitoring. Includes CloudViewer remote monitoring, VLANs, QoS, link aggregation, IPv4/IPv6 management, advanced security features, and dual SFP fiber uplinks.
Technical Context
Designed for SMB and edge network deployments, the switch combines intelligent PoE management with remote monitoring and traffic prioritization. Fiber uplinks support long-distance backbone connections, while built-in device recovery functions reduce maintenance and downtime.
Installation Notes
Compact desktop metal enclosure (330 × 155 × 43.5 mm, 1.69 kg) with operating temperature of 0–50°C. Powered by 100–240V AC with up to 165W consumption and a single smart fan. Supports 100BASE-FX and 1000BASE-SX/LX SFP modules, includes ESD protection, status LEDs, reset button, console cable, power cord, and SFP dust caps.
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces Supports 100/1000Mbps dual mode and DDM |
| PoE Injector Port | 8 ports with 802.3at / af PoE injector function with port-1 to port-8 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps / non-blocking |
| Switch Throughput@64Bytes | 14.88Mpps |
| Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: PWR x1(Green) SYS x1 (Green Per PoE Port (Port 1 to Port 8): LNK/ACT x1 (Green) PoE-in-use x1 (Orange) Per Gigabit SFP Port (Port 9 to Port 10): 1000 LNK/ACT x1 (Green) 100 LNK/ACT x1 (Orange |

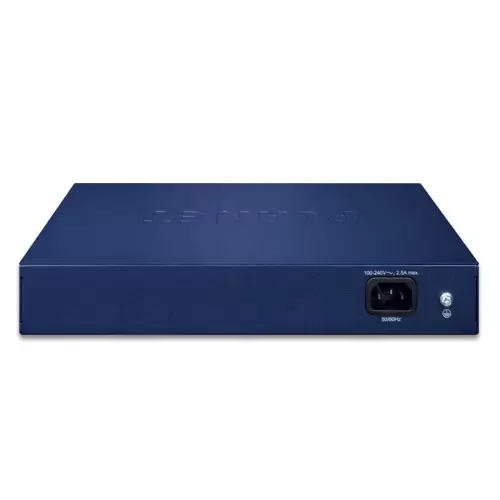

| Power Requirements | 100~240V AC, 50/60Hz, auto-sensing |
| Dimensions (W x D x H) | 330 x 155 x 43.5 mm, 1U height |
| ESD Protection | Contact Discharge 4KV DC Air Discharge 8KV DC |
| Enclosure | Metal |
| Weight | 1687g |
| Power Consumption / Dissipation | 165 watts (max.) / 563 BTU |
| Fan | 1 smart fan |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE+ PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 52V DC, 36 watts (max.) |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 120 watts (max.) @ 25 degrees C 100 watts (max.) @ 50 degrees C |
| PoE Ability PD @ 9 watts | 8 units |
| PoE Ability PD @ 15 watts | 8 units |
| PoE Ability PD @ 30 watts | 4 units |
| PoE Management | PD Alive Check Scheduled Power Recycling PoE Schedule PoE Usage Monitoring PoE Extension |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/both Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 8 trunk groups with 8 ports per trunk group |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping | IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List | IPv4/IPv6 IP-based ACL / MAC-based ACL |
| QoS | 8 mapping ID to 8 level priority queues – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP field in IP packet Traffic classification based, strict priority and WRR |
| Security | IEEE 802.1X port-based authentication Built-in RADIUS client to cooperate with RADIUS server RADIUS / TACACS+ user access authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Management Functions | |
| Basic Management Interfaces | Web browser / Telnet / SNMP v1, v2c Firmware upgrade by HTTP / TFTP protocol through Ethernet network Remote / Local Syslog System log LLDP protocol SNTP |
| Secure Management Interfaces | SSHv1/v2, TLS v1.2, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB RFC 3621 Power Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE, LVD |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree protocol IEEE 802.1s Multiple Spanning Tree protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
