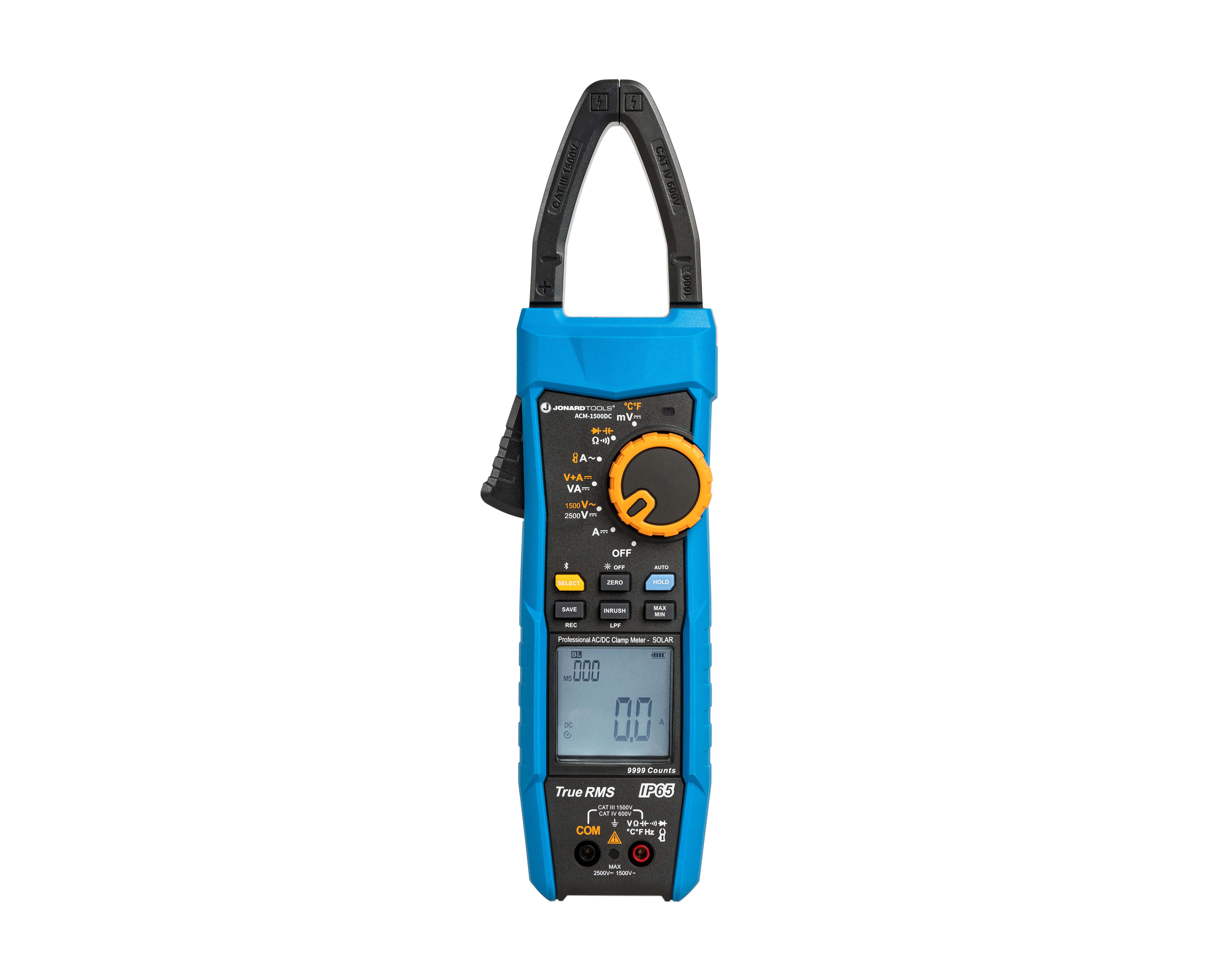

Jonard - ACM-1500DC - Solar+ Clamp Meter CAT III 1500 V
Part number:
Price:
- • Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
- • CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

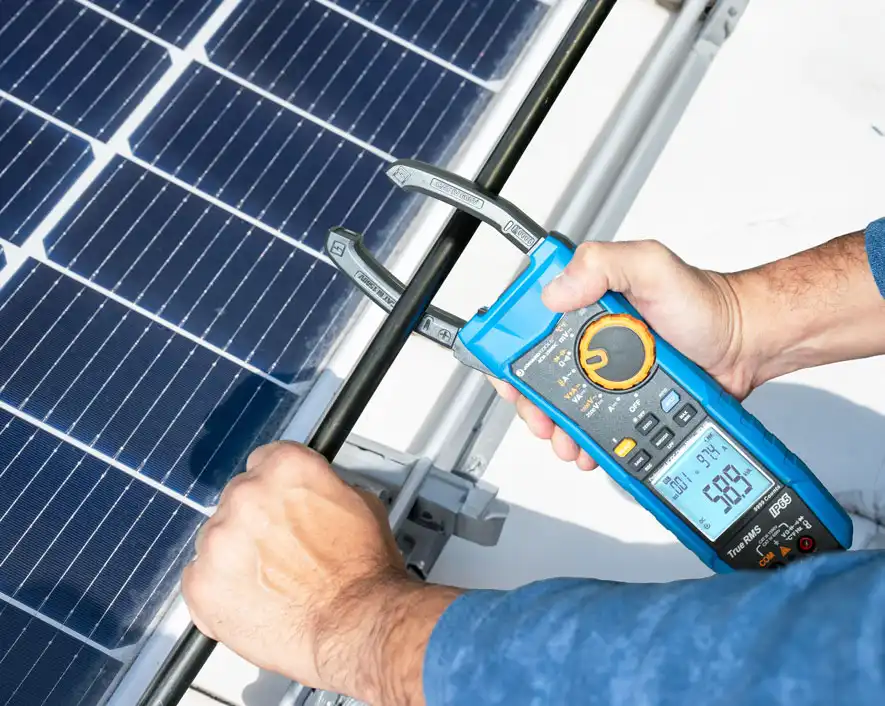

- • Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter
- • Test results can be saved onto onboard storage and can be transferred via Bluetooth
- • IP 65 rating for dust and water resistance for ultimate protection while working outdoors
| Max AC Current | 999.9 A |
| Max DC Current | 999.9 A |
| Max AC Voltage | 1500 V |
| Max DC Voltage | 2500 V |
| Power (DC) | 999.9 kVA/2500 kVA |
| Resistance | 999.9 Ohm/9.999 kOhm/99.999 MOhm |
| Capacitance | 100.0 uF/1000 uF |
| Temperature | -40°C~400°C / -40°F~752°F |
| Jaw Opening | 35 mm |
| Overvoltage Category | CAT III 1500V / CAT IV 600V |
| Bluetooth App | BT 5.0 |
| Inrush Current | ✓ |
| PEAK | ✓ |
| LPF | ✓ |
| True RMS | ✓ |
| Dimensions | 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm) |
| Weight | 2.04 lb (924.344 g) |
Name
Description
Size
Downloads
File
ACM-1500DC_DataSheet.pdf
0.5mb
File
ACM-1500DC_Instructions.pdf
1.4mb
This is a high-voltage and high-current clamp meter designed for electrical measurement in demanding environments. It can measure up to 2500 V DC and 999.9 A (DC or AC) through its slim-tip clamp jaws, which open to accommodate conductors up to 1.38" (35 mm) in diameter. The device includes onboard data storage and Bluetooth connectivity for transferring test results. The meter is built for safety, featuring double insulation and ratings of CAT IV 600V and CAT III 1500V. It is protected against dust and water ingress with an IP65 rating, making it suitable for outdoor use.
