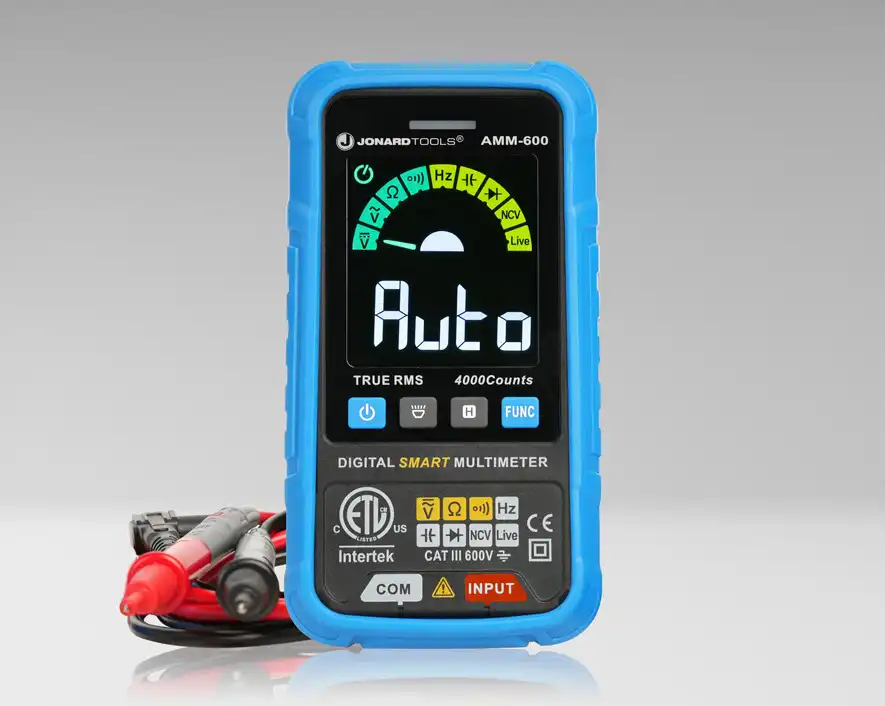

Jonard - AMM-600 - 600V Automatic Intelligent Digital Multimeter
Part number:
Price:
- • It tests AC and DC voltage, resistance, capacitance, frequency, diodes, duty cycle and continuity. It also has automatic current input detection and live testing and non-contact voltage detection (NCV).
- • It provides maximum, minimum and average readings, as well as relative measurements.
- • CAT III 600 V, Class 2, double insulation safety rating.
- • The backlit display is ideal for low-light and high-contrast environments.
- • Its unique design features a grooved housing for a superior grip.
| AC voltage | 600V |
| Resistance | 400Ω-40MΩ |
| Capacitance | 4nF-40mF |
| Frequency | 4Hz-4MHz |
| Counts | 4000 |
| Overvoltage Category | CAT III 600v |
| Dimensions | 6 in x 3 in x 2 in (15.24 cm x 7.62 cm x 5.08 cm) |
| Weight | 0.73 lb (331.42 g) |
Name
Description
Size
Downloads
File
DataSheet_600A_Automatic_Intelligent_Digital_Multimeter.pdf
0.8mb
File
AMM-600_Instructions.pdf
0.5mb
This is a digital multimeter designed for comprehensive electrical testing. Its core functionality includes measuring AC/DC voltage, resistance, capacitance, frequency, duty cycle, and continuity, as well as testing diodes. It features automatic current input detection, live circuit testing, and non-contact voltage detection (NCV). The device can log maximum, minimum, and average readings and perform relative measurements. The multimeter has a CAT III 600V safety rating with double insulation. Its ergonomic design includes a grooved housing for grip and a backlit display for use in various lighting conditions.
