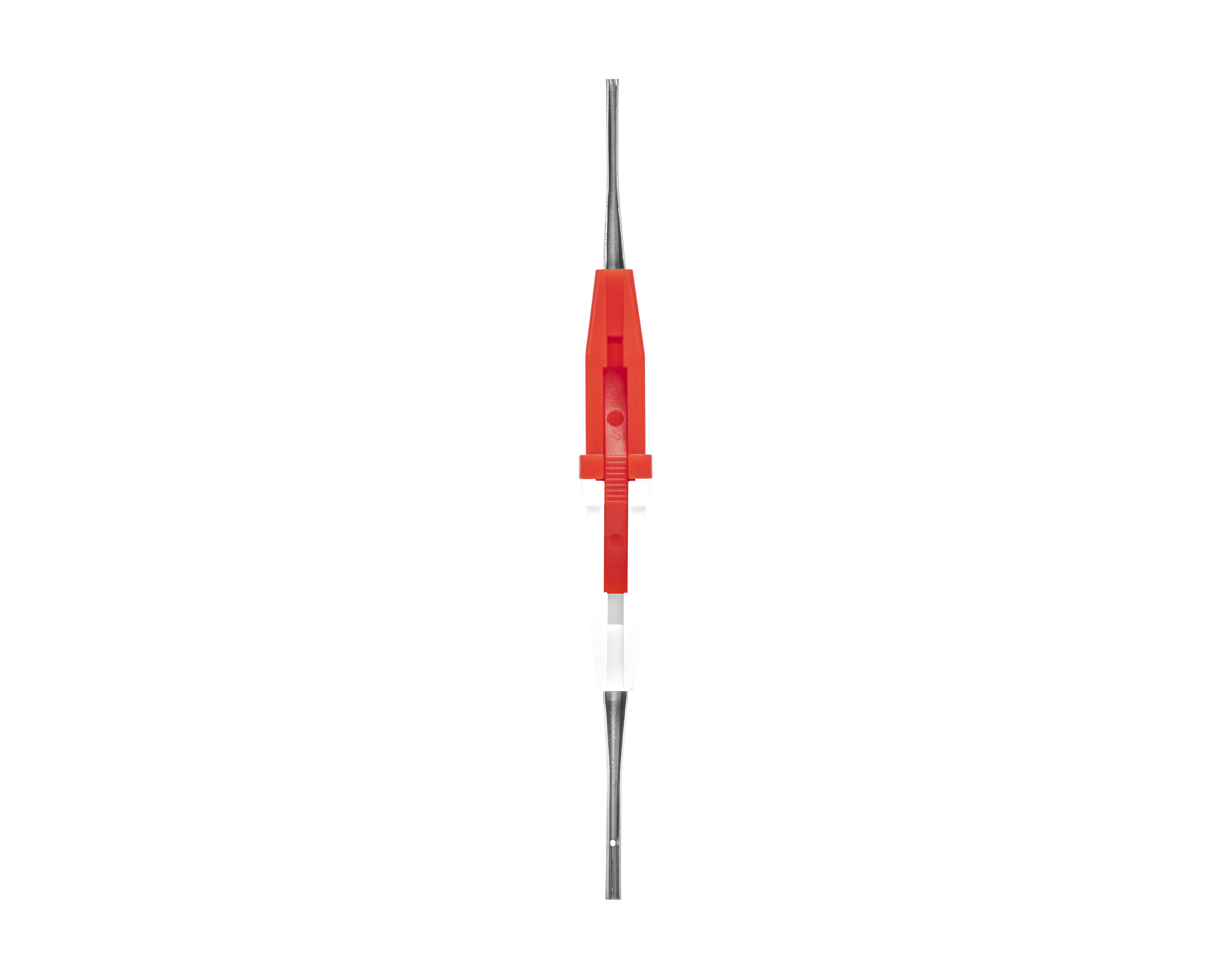

Jonard - AR-910672 - Insertion & Extraction Tool, Contact Size 20

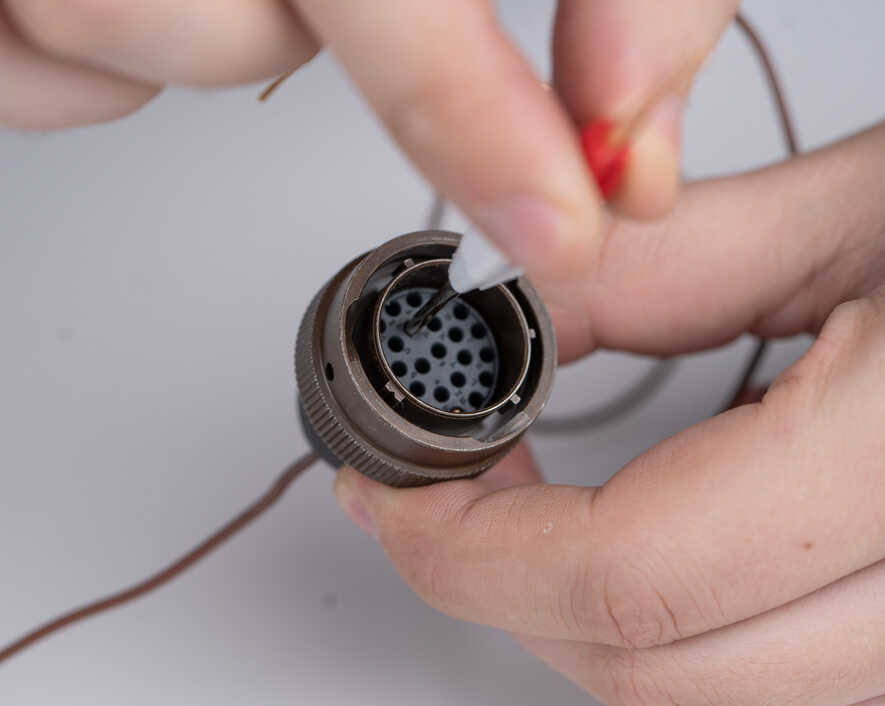

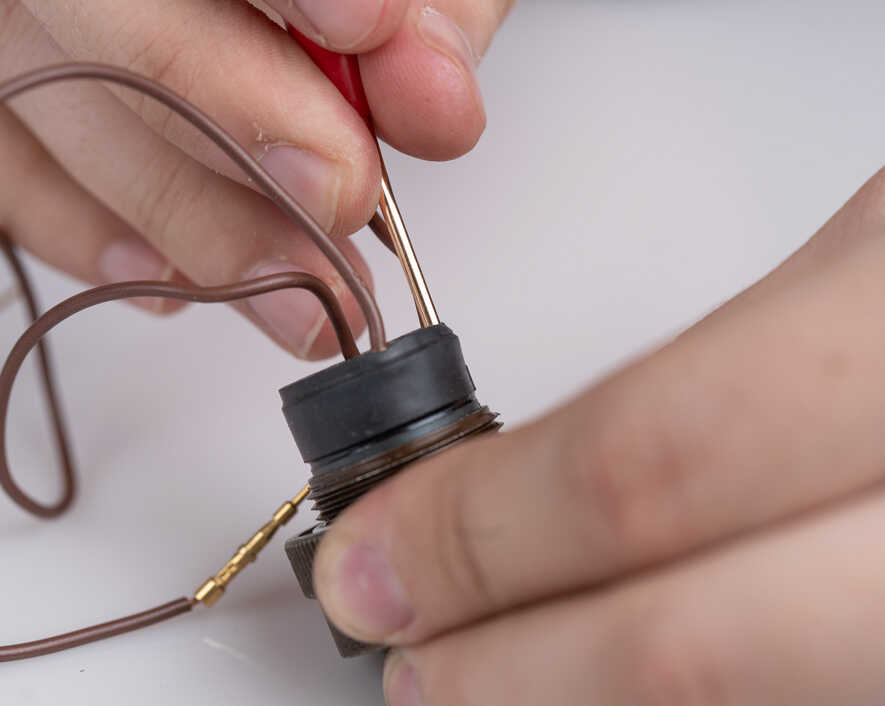

This tool is perfect for inserting and extracting size 20 front release contacts made by most manufacturers. This insertion tool features the following:

Features:

• Probes constructed from brass to prevent damage to contacts

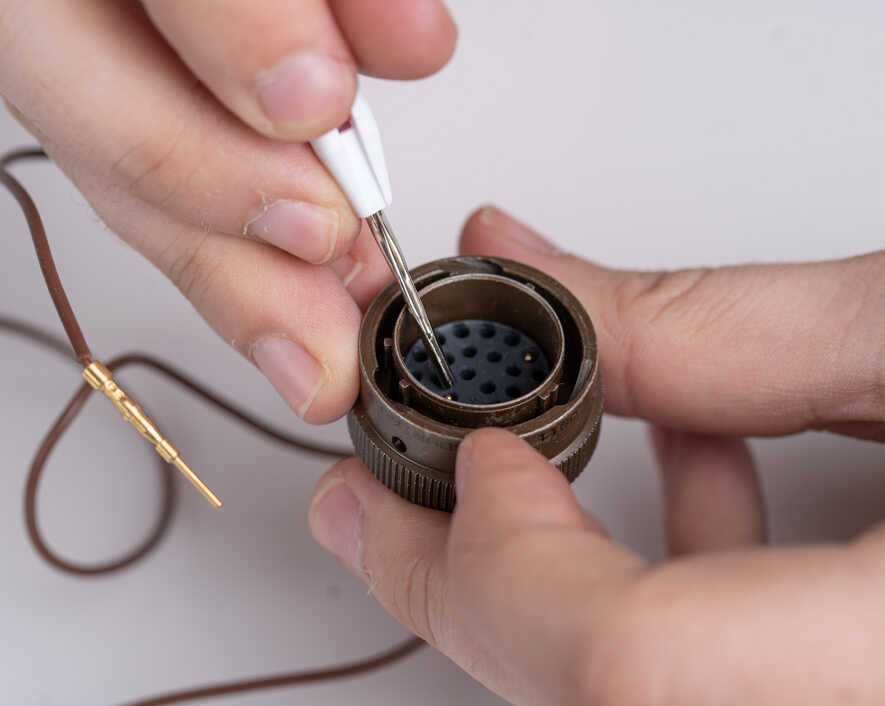

• Housing made from color-coded ABS: Red side is for insertion and white side is for extraction
• For use on TE Connectivity Amplimite series HDP-20 plugs and pins, including the following:
  • 215712-1 Plug 15 POS Crimp Snap
  • 215711-1 Plug 9 POS Crimp Snap
  • 1218266-1 Pin 18 AWG Gold Crimp
  • 194081-1 Pin 1.04 mm without Louver Band
  • 205089-2 D-Sub Pin 20-24 AWG Crimp
