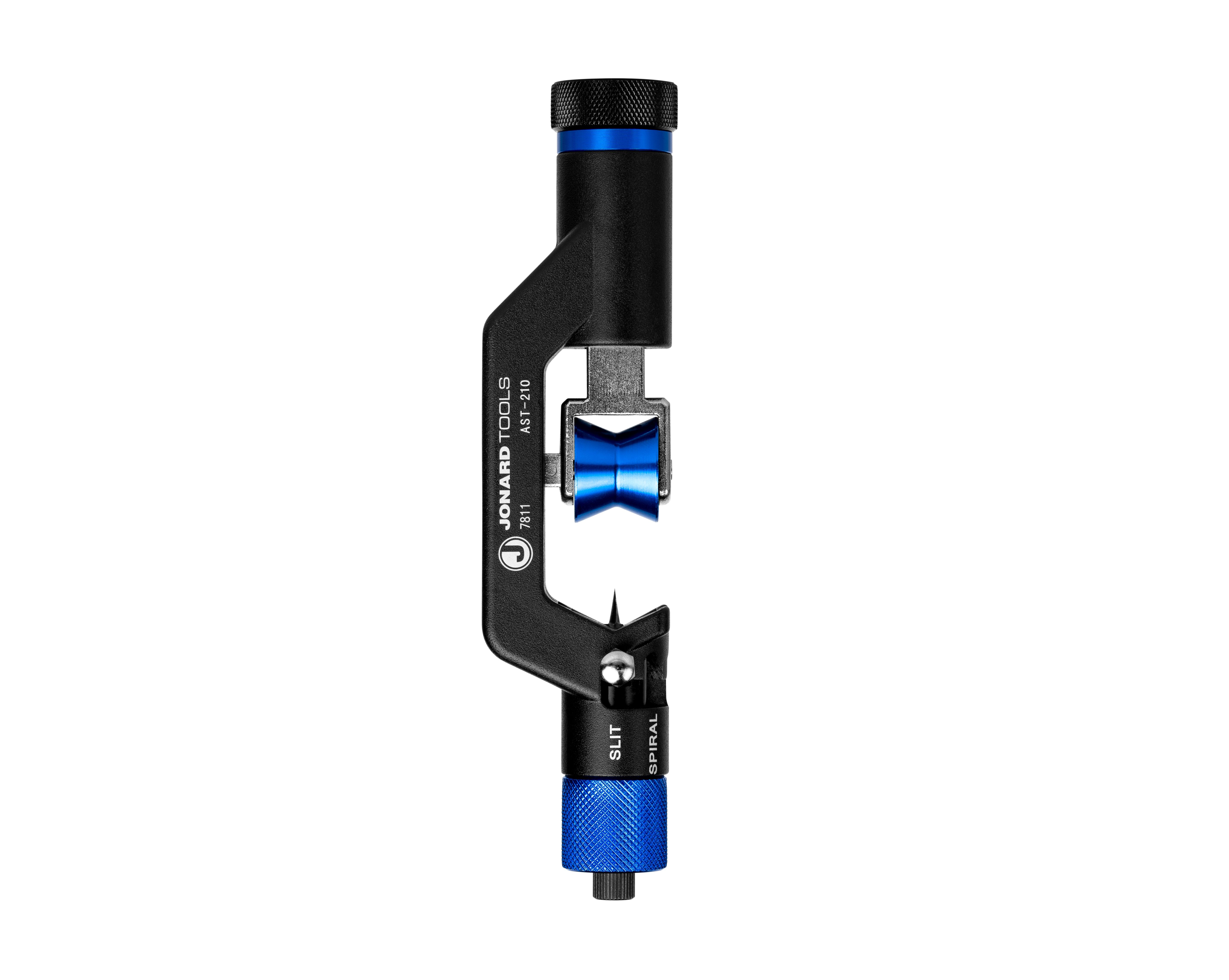

Jonard - AST-210 - CableSaber+ Armored Mid-Span Cable Slit & Ring Tool (4 - 30 mm)
Part number:
AST-210
Price:

The Jonard Tools CableSaber+ is the ultimate tool for gaining mid-span access to armored or thick jacketed cables 4 mm-30.0 mm (0.157”-1.181”) in diameter, such as Corning's 1728 RocketRibbon cable. This mid-span cable slit and ring tool also features the following:



Features:

  • Perfect for use on Corning Optical's 144F - 1728F RocketRibbon cables
  • Adjustable blade depth up to 6.5 mm (0.256”)
  • Precision steel blade will cut through the toughest materials, ensuring no damage to the internal fibers
  • Blade can be set to be longitudinal for slitting or radial for ringing
  • For use on cables 4 mm-30.0 mm (0.157”-1.181”) in diameter
  • Aluminum shaft provides tremendous stability while slitting or ringing, preventing spiraling from occurring
  • Shaft housing acts as a handle, providing greater leverage while slitting for convenience while ringing
  • Thumb screw allows blade depth to be adjusted quickly by hand
  • Rugged anodized aluminum and steel construction for maximum durability
Specifications
Cut TypeSlit, Ring, Spiral
Cable TypeArmored, Jacket
Cable Diameter4 mm - 30.0 mm (0.157”-1.181”)
Product MaterialAnodized Aluminum
Product Main ColorBlack
Handle MaterialAnodized Aluminum
Dimensions7.88 in x 2.1 in x 1.01 in (20 cm x 5.33 cm x 2.57 cm)
Weight0.77 lb (349.58 g)
UPC #8E+11
Name
Description
Size
Downloads
File
Datasheet
0.9mb
