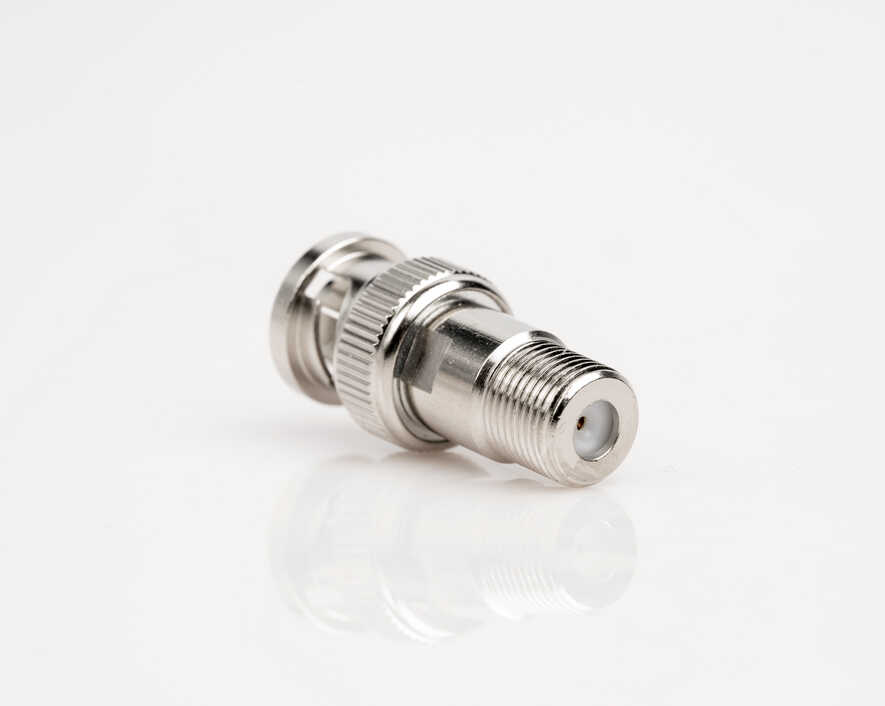

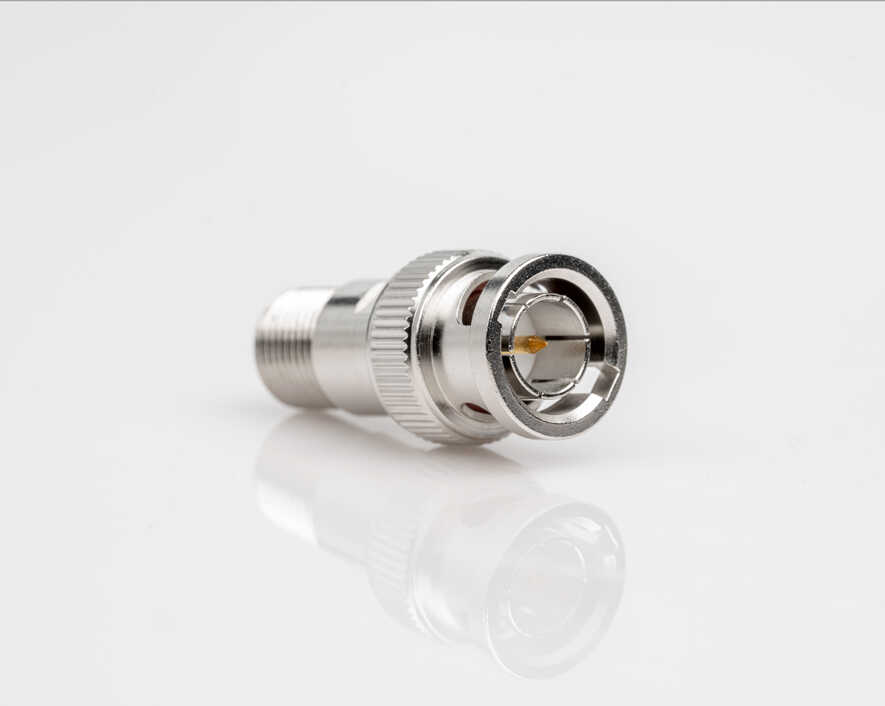

Jonard - BNC-FM - BNC-Female to Male Adapter (Pack of 2)
Part number:
BNC-FM
Price:
These adapters are designed to convert BNC connections to CATV F connections and come in a pack of 2. These connectors feature the following:
Features:
- Converts BNC connections to CATV F connections
- Professional grade Gold tipped adapters for premium transmission of digital and analog data
- Includes 2 adapters
| SPECIFICATIONS | |
| CONNECTOR TYPE | F-Female to BNC-Male |
| STANDARDS | IEC 60169-8 |
| TEMPERATURE RANGE | ‘-25~+85°C |
| IMPEDENCE | 75 Ω |
| FREQUENCY RANGE | DC~1GHz |
| WORKING VOLTAGE | 500V |
| WITHSTAND VOLTAGE | 1500V |
| CENTER CONTACT RES. | ≤ 1.5 mΩ |
| OUTER CONTACT RES. | ≤ 1 mΩ |
| INSULATION RES. | ≥ 5000 MΩ |
| INSERTION LOSS | ≤ 0.5 dB |
| VSWR | ≤ 1.45 |
| WEIGHT | 0.03 lb (13.62 g) |
| UPC # | 810053351680 |
