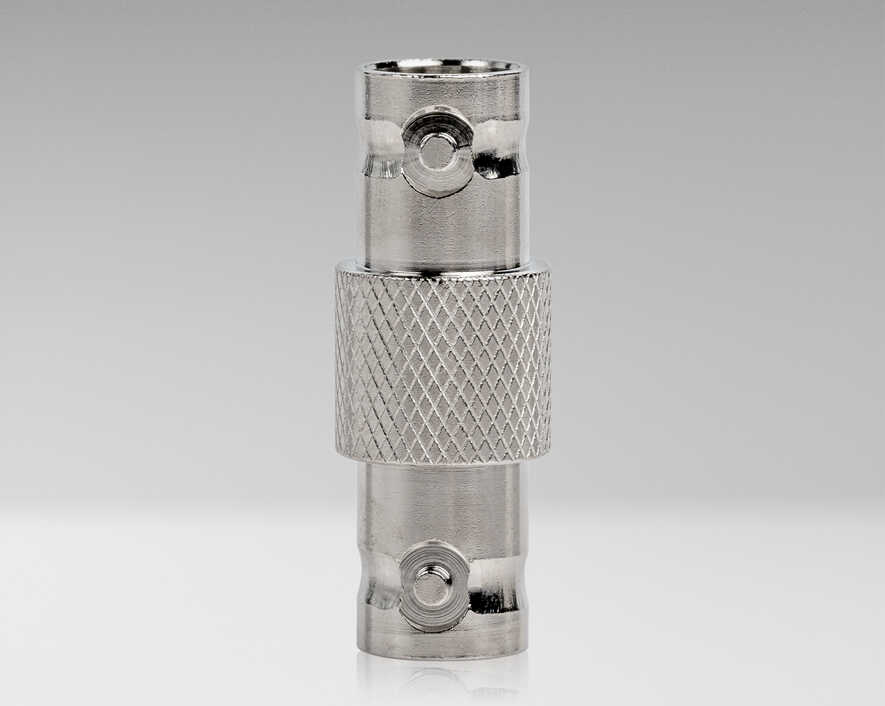

Jonard - BNC-SA - BNC Straight Adapter (Pack of 1)
Part number:
BNC-SA
Price:

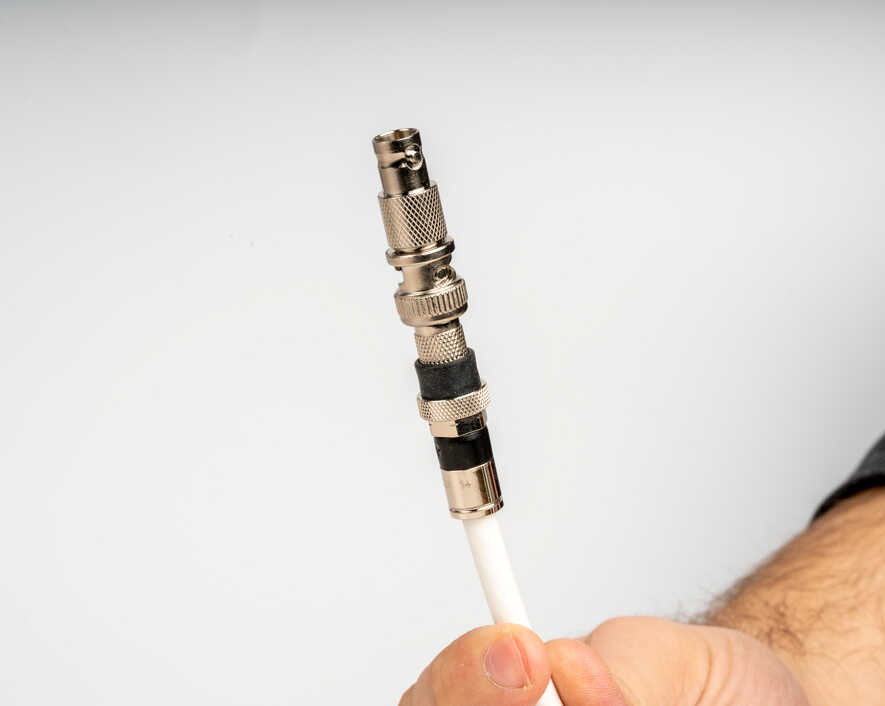

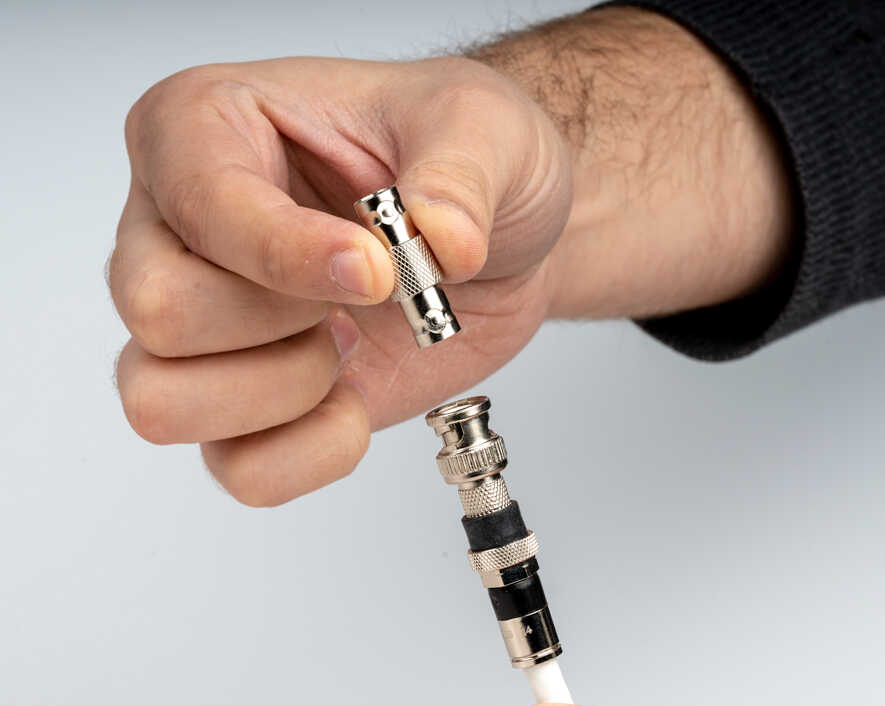

These adapters are designed to join two BNC connectors. These adapters also feature the following:
Features:
- For use with male BNC plugs/connectors
- Includes 1 BNC adapter
| SPECIFICATIONS | |
| CONNECTOR TYPE | BNC Female Splice Adapter |
| STANDARDS | IEC 60169-8 |
| TEMPERTAURE RANGE | -25~+85°C |
| WORKING VOLTAGE | 500 V |
| WITHSTAND VOLTAGE | 1500 V |
| CENTER CONTACT RES. | ≤ 1.5 mΩ |
| OUTER CONTACT RES. | ≤ 1 mΩ |
| INSULATION RES. | ≥ 5000 MΩ |
| VSWR | ≤ 1.3 |
| INSERTION LOSS | ≤ 0.5 dB |
| WEIGHT | 0.02 lb (9.08 g) |
| UPC # | 810053351697 |
Name
Description
Size
Downloads
File
Datasheet
0.5mb
