Jonard - BTR-6 - Buffer Tube Ringer (up to 6 mm)
Part number:
BTR-6
Price:

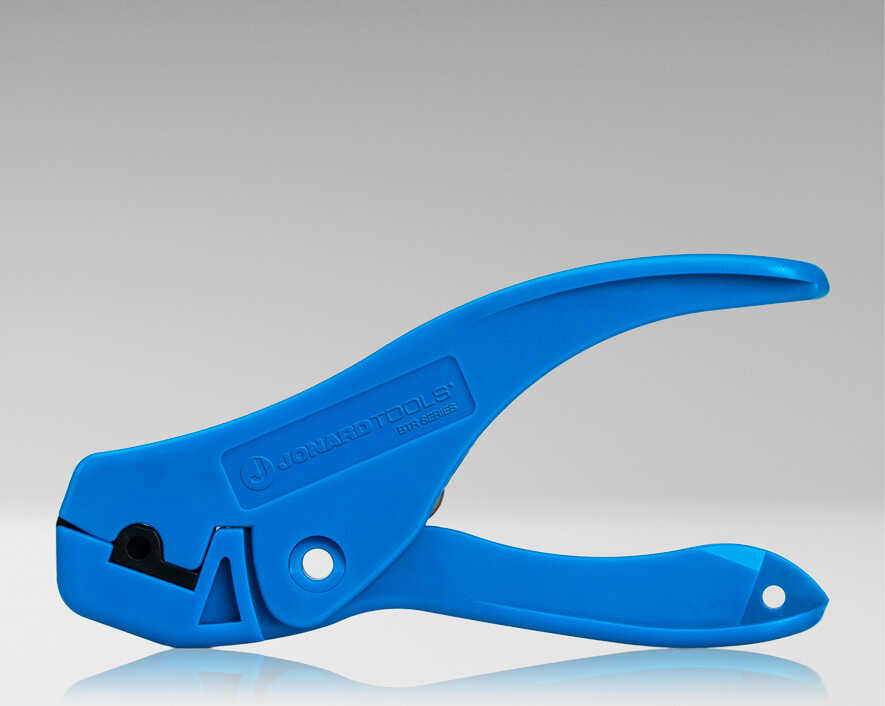

The Jonard Tools BTR-6 Buffer Tube Ring tool provides quick access to fibers inside buffer tubes from 1.2 mm to 6 mm in diameter and will work with buffer tubes with wall thicknesses from 0.2 mm to 0.5 mm. The tool is light and durable with a hardened steel blade for long life and includes a hole for tethering.



Features:

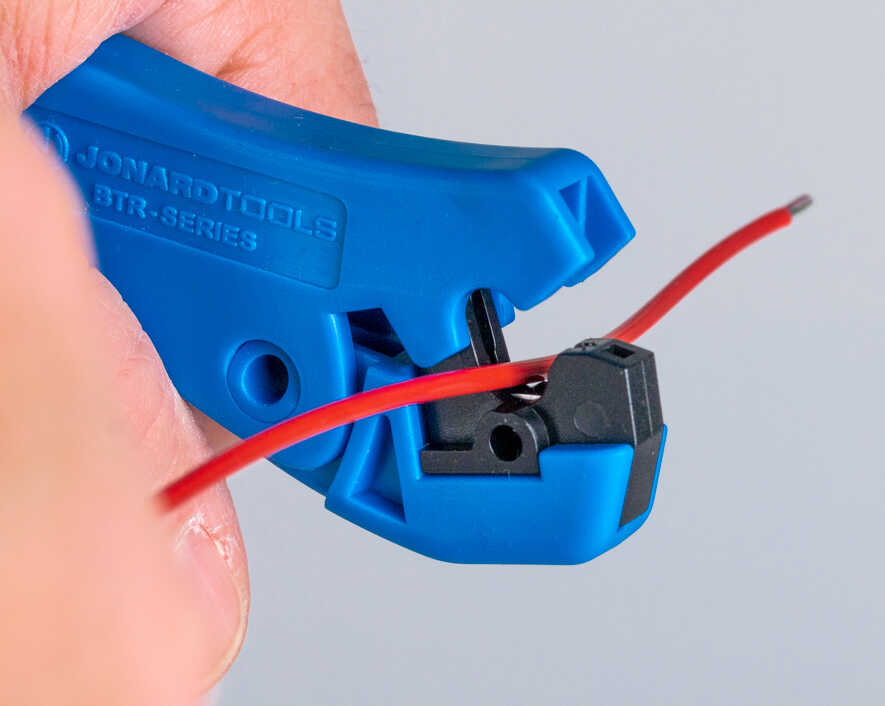

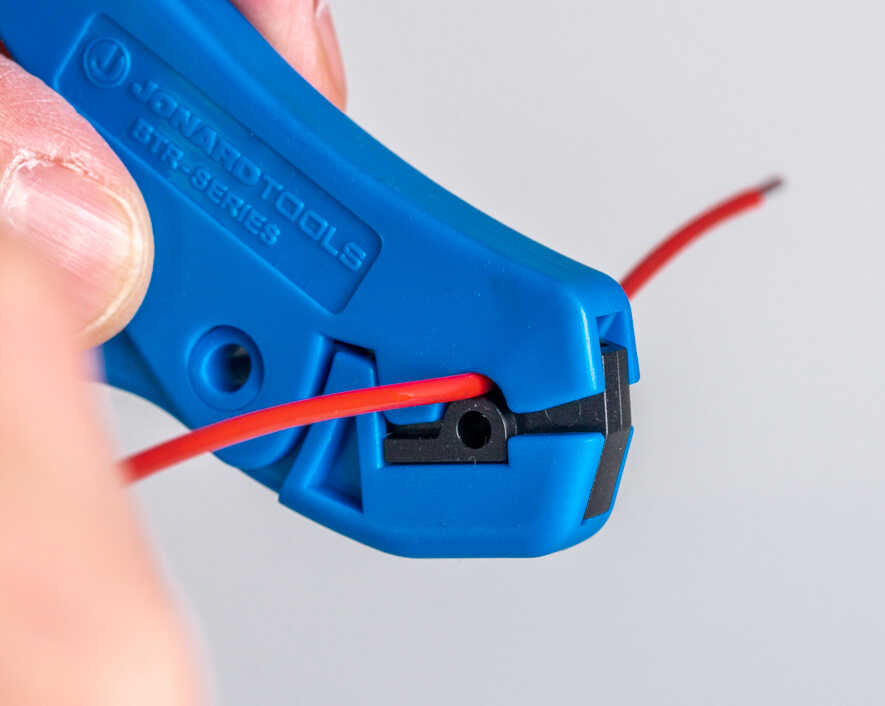

  • Simply use by squeezing the handles to open the jaws, insert the buffer tube, release the handles, and rotate the tool
  • Provides quick access to optical fibers inside buffer tubes (from 1.2 mm to 6 mm in diameter) and will work on buffer tubes with wall thicknesses from 0.2 mm to 0.5 mm.
  • Factory-fixed hardened steel blade for precise nick-free jacket entry
  • Weighing only 0.53 oz and measuring 3.75” x 1.94” x 0.375” with included tethering hole, this tool is perfect to use on the go
  • Jonard Tools makes high-quality products that are Made for Life and are backed by our lifetime warranty
SPECIFICATIONS-
TYPEBuffer Tube Ring
COLORBlue
MATERIALPlastic
BUFFER TUBE DIAMETER RANGE1.2 mm to 6 mm
BUFFER TUBE THICKNESS RANGE0.2 mm to 0.5 mm
WEIGHT0.031 lbs (14 grams)
LENGTH3.75” (95.25mm)
Name
Description
Size
Downloads
File
Datasheet
0.7mb
