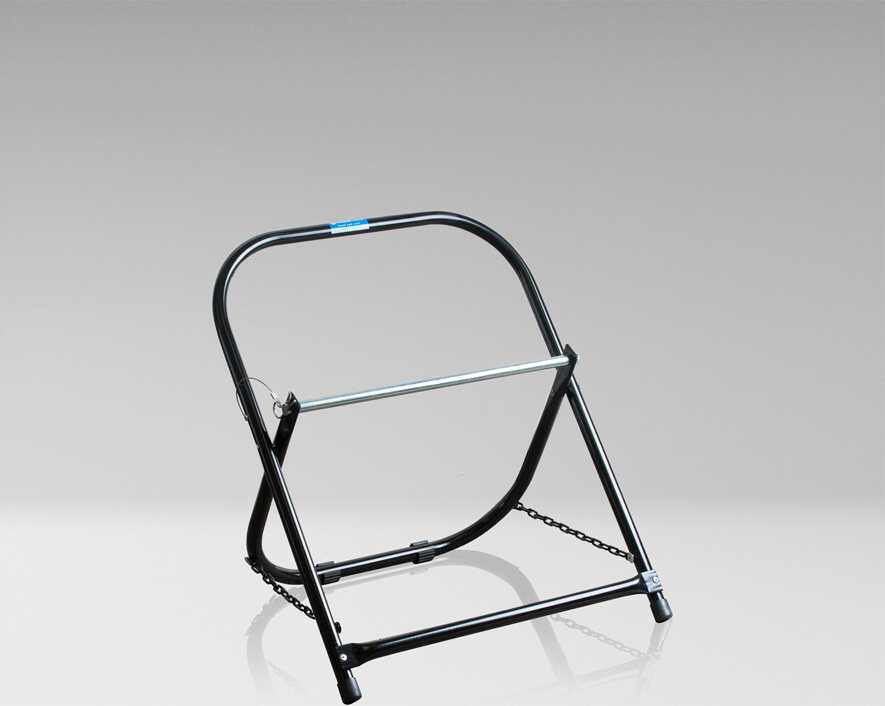

Jonard - CC-2721 - Steel Cable Caddy For 16" X 20" Wire Spools
Part number:
CC-2721
Price:

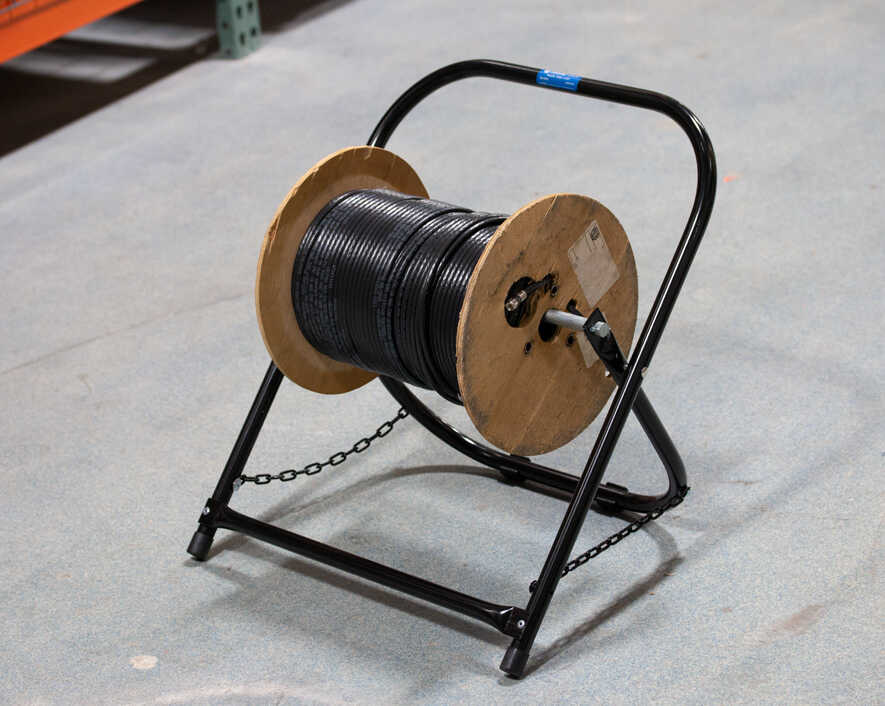

The Jonard Tools CC-2721 Cable Caddy keeps cable spools organized and easily accessible. This caddy facilitates the transportation and storage of spooled products in a wide range of spool sizes and is made of 7/8” (22 mm) diameter tubular steel and features the following:



Features:

  • Folding mechanism for easy storage
  • Sturdy steel construction with dual leg chains for increased stability and longer life
  • Portable and compact design to make it easy to store and move around job sites
  • Able to hold cable reels weighing up to 100 lb (45.4 kg) and measuring up to 20” (50.8 cm) wide and 17” (43.2 cm) in diameter
  • Easy setup by just placing cable caddy on the floor, removing the cotter pin, and loading the reel
  • Slip-resistant rubber feet to prevent the caddy from slipping while also protecting floors from damage
SPECIFICATIONSCC-2721
STYLEStandard
OVERALL WIDTH21” (53.3 cm)
OVERALL HEIGHT27” (68.6 cm)
SPOOL ROD DIAMETER5/8” (15.88 mm)
MAXIMUM SPOOL WIDTH17” (43.2 cm)
MAXIMUM SPOOL DIAMETER20” (50.8 cm)
MAXIMUM SPOOL WEIGHT100 lb (45.4 kg)
WEIGHT8 lb (3.6 kg)
Name
Description
Size
Downloads
File
Datasheet
0.8mb
