Jonard - CF-200 - WiSpy - Multipurpose Wireless Inspection Camera & Cable Pulling Tool
Part number:
CF-200
Price:

The WiSpy professional and durable inspection camera is ideal for any hard-to-see inspections. The WiSpy is a contractor-grade inspection camera that gives users the ability to see more; easier, and smarter. With app-controlled variable focus, easy attachment to a variety of extensions, and a free and easy-to-use app for IOS or Android, the WiSpy gets the job done faster.



Features:

  • App controlled variable focus lens

    The variable focus function on the app allows clear close-up viewing - as close as 2.5” (6cm) for finer detail. A big help if you need to check for specific detail (part numbers etc.) as part of your job.



  • "Always Up" viewing mode

    Using the WiSpy App settings screen, you can choose to have the image view either in normal mode or “always up” mode. In Always up mode, it does not matter which way you have the camera positioned during inspections; it will always display the image in the correct “always up” way.



  • Fast charging

    The rechargeable battery lasts up to 90 minutes while in use and recharges to 90% in just 60 minutes.



  • Change resolution and Wi-Fi channel

    Crisp clear images with 720p high resolution provides real-time video feed and captures photos directly to an iPhone, Android, or another smart device. View objects closer with the WiSpy App digital zoom.



  • Easy "Periscope Mode" built-in

    Designed with an integrated right-angle mount eliminating the need for an adapter when peering over obstacles.



  • FREE App and Wristband

    Includes a FREE, easy-to-use app (available on IOS and Android) to connect the WiSpy to your smart device and control the camera and a Jonard Tools Wristband to keep your hands free!

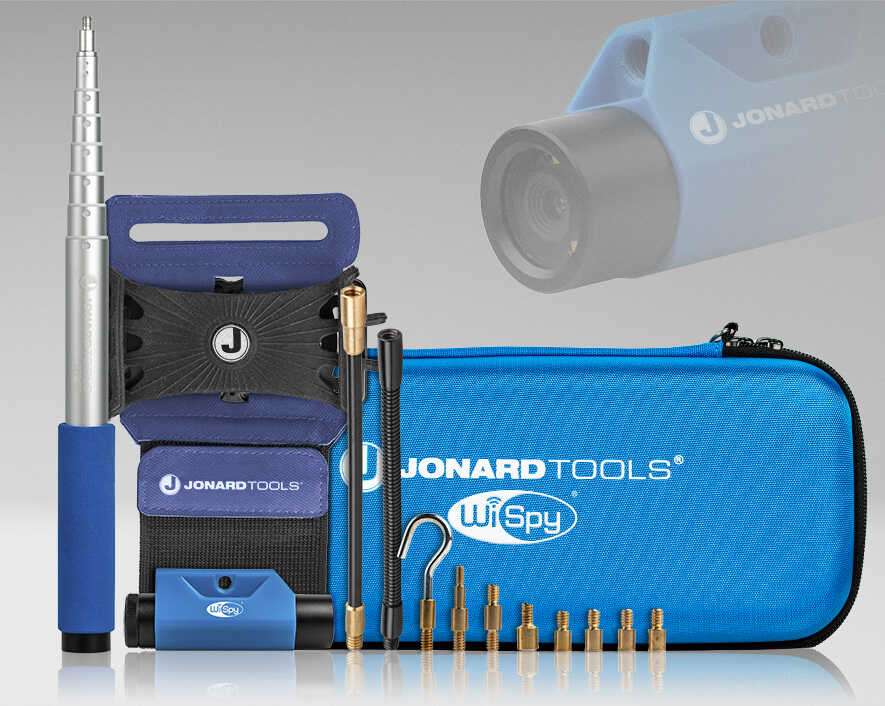

  • Kit Includes:
    • FREE CFP-60 Telescoping Pole
    • FREE CWB-11 Cell Phone Wrist Band
    • 8 adapters & USB charger
    • Gooseneck and rigid fishing extenders
    • Hook & Magnet
    • Spare O-rings
    • Protective EVA carrying case
    • Instruction Manual
SPECIFICATIONS-
CAMERA DIMENSIONS3.25 in x 1.25 in x 1.25 in (8.26 cm x 3.18 cm x 3.18 cm)
CAMERA WEIGHT0.1 lbs (45.4 g)
WIRELESS RANGEUp to 50’ (15 m) line of sight
OPERATING TIMEUp to 90 minutes (LED’s on medium brightness setting)
CHARGE UP TIMEAround 80 minutes (95% charged in 60 minutes)
FREQUENCY2.4 GHz
OPERATING VOLTAGE5V DC
OPERATING TEMPERATURE32°F to 95°F (0°C to 35°C)
STORAGE TEMPERATURE-4°F to 113°F (-20°C to 45°C )
WATER RESISTANCEIP67 Rated
CAMERA RESOLUTION720p HD
DIMENSIONS11 in x 5 in x 2 in (27.94 cm x 12.7 cm x 5.08 cm)
WEIGHT1.4 lbs (635 g)
