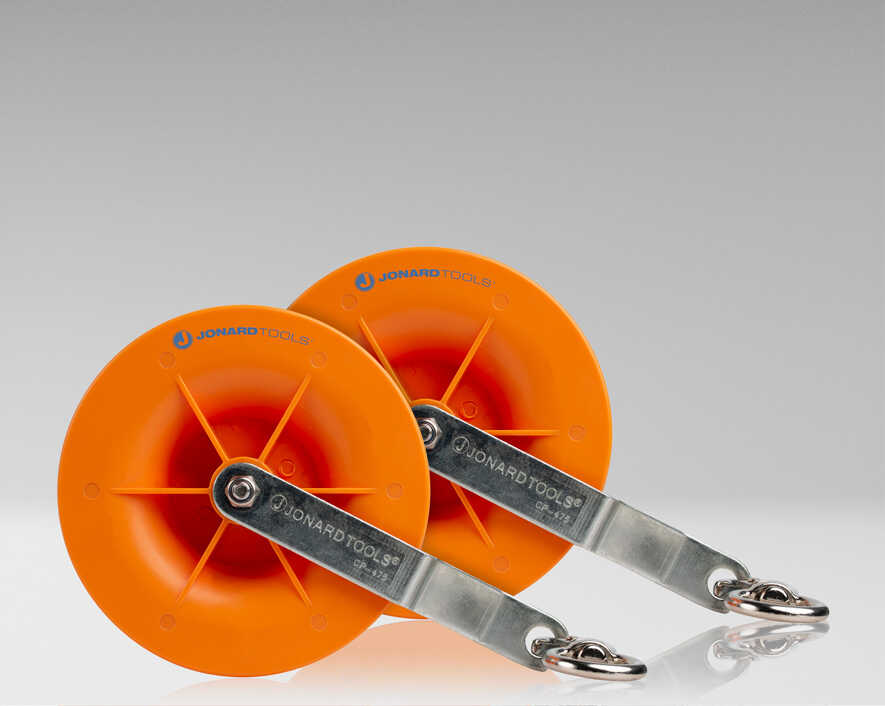

Jonard Tools - CP-475 - Pulley Set for Low Voltage Electrical, Network, & COAX Cables (Pack of 2)
Part number:
CP-475
Price:

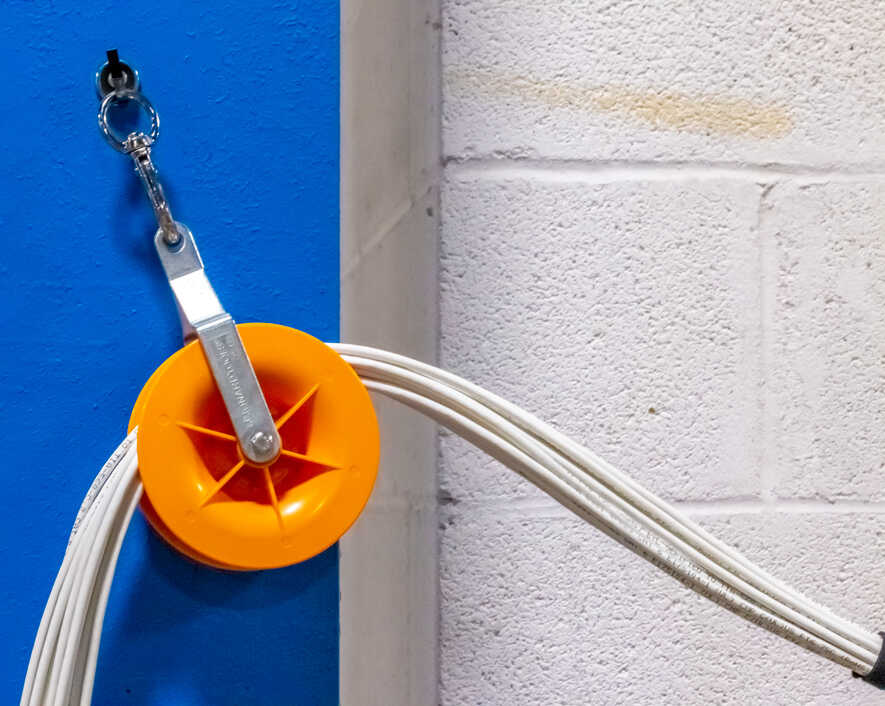

The CP-475 is a set of two cable pulleys designed to help install electrical, COAX, network, and other various low voltage cables. With their swivel snap hooks, deep grooves, and anti-friction bearings, these pulleys keeps cables aligned with the direction of the pull, preventing snags and kinks.



Features:

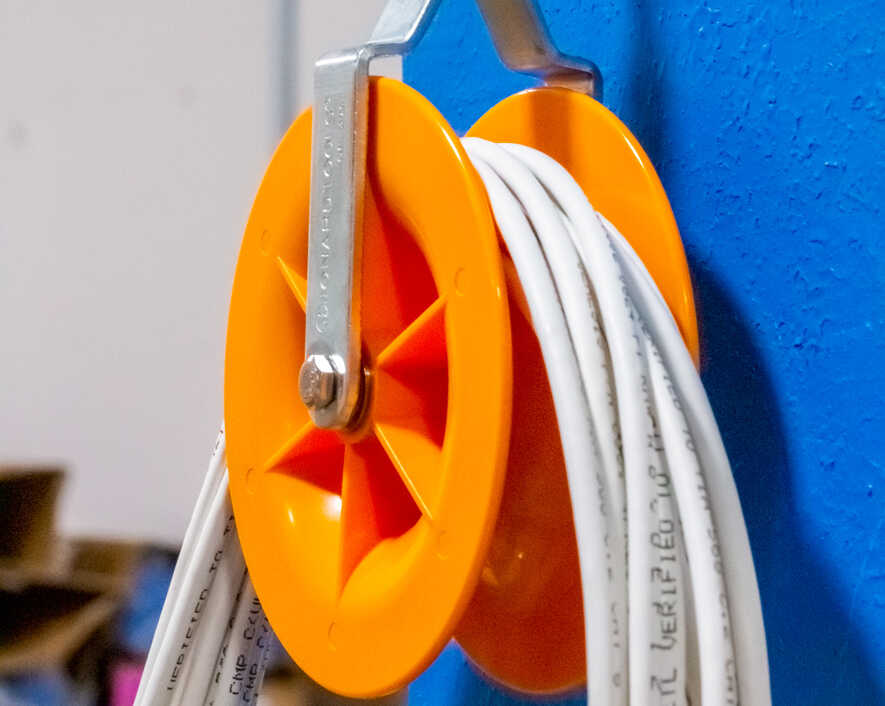

  • Holds up to 20 CAT5/6 network cables

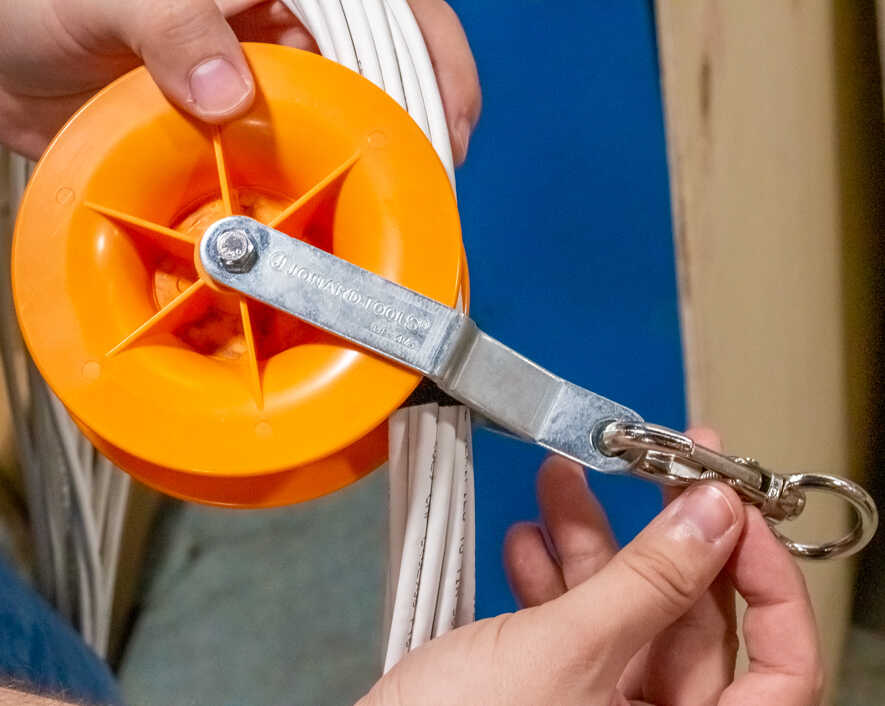

  • Swivel snap hook installs easily and keeps pulley aligned with direction of pull to prevent kinks
  • Anti-friction roller bearings and deep grooves allow cable to be pulled smoothly and easily
  • Made from a high strength ABS plastic and zinc coated steel to provide enhanced durability and longer life

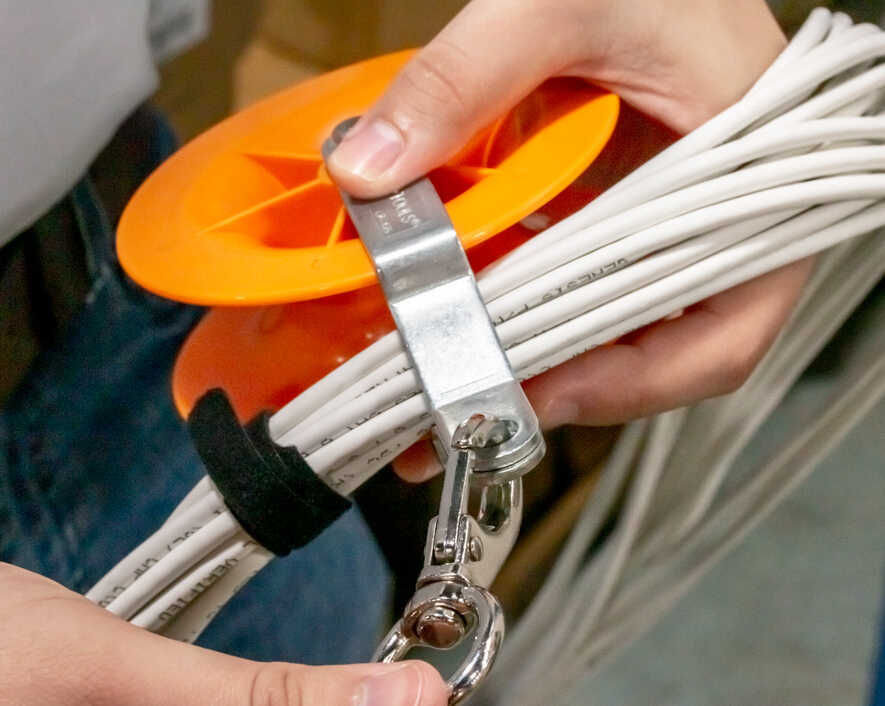

  • Easy to remove the pulley after cable is installed
  • Includes (2) pulleys
SPECIFICATIONS-
NUMBER OF CABLESUp to 20
MAXIMUM WEIGHT CAPACITY120 lb (54.43 kg)
CHANNEL WIDTH1.43” (36.41 mm)
DIAMETER4.75” (12.07 cm)
PULLEY WEIGHT.63 lb each (287.58 g)
TOTAL WEIGHT1.27 lb (576.06 g)
