Jonard - CSR-2 - Replacement Blade Set for CSR-1575
Part number:
CSR-2
Price:

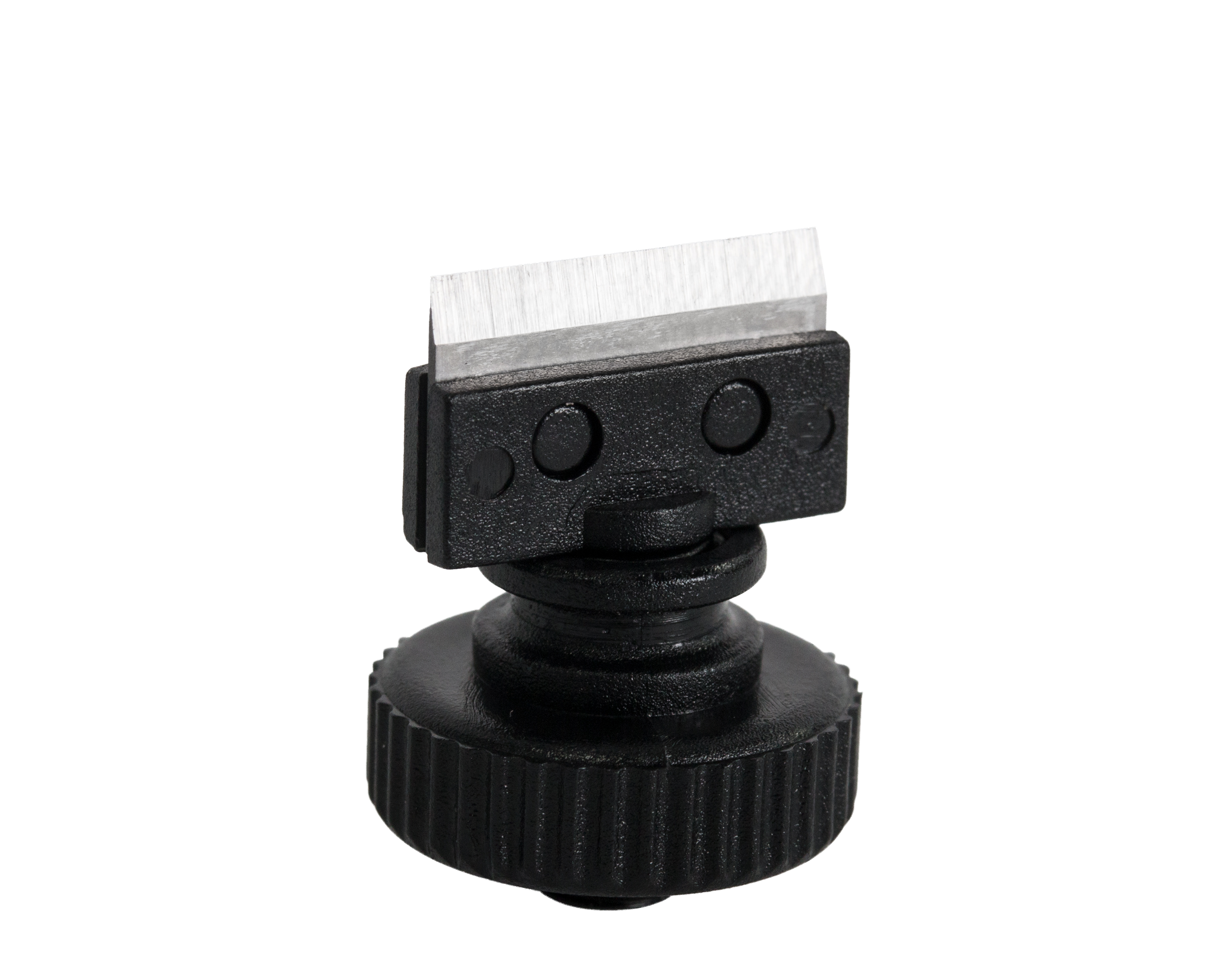

This product is the replacement blade set for the CSR-1575 Cable Slit & Ring Tool. This replacement blade set consists of (1) ring blade and (1) slit blade.



Features:

You can easily replace the blades according to the instructions below:

  • For the slitting blade, use either a slotted or Phillips screwdriver and remove the screw.
  • For the ring blade, push the two metal pins out then remove the blade by pulling on the knob.
Specifications
Cable TypeRound Distribution, Loose Tube, Simplex
Cable Diameter1/8"-3/8" (3.2 mm-9.6 mm)
Weight0.01 lb (2.724 g)
UPC #811490016545
