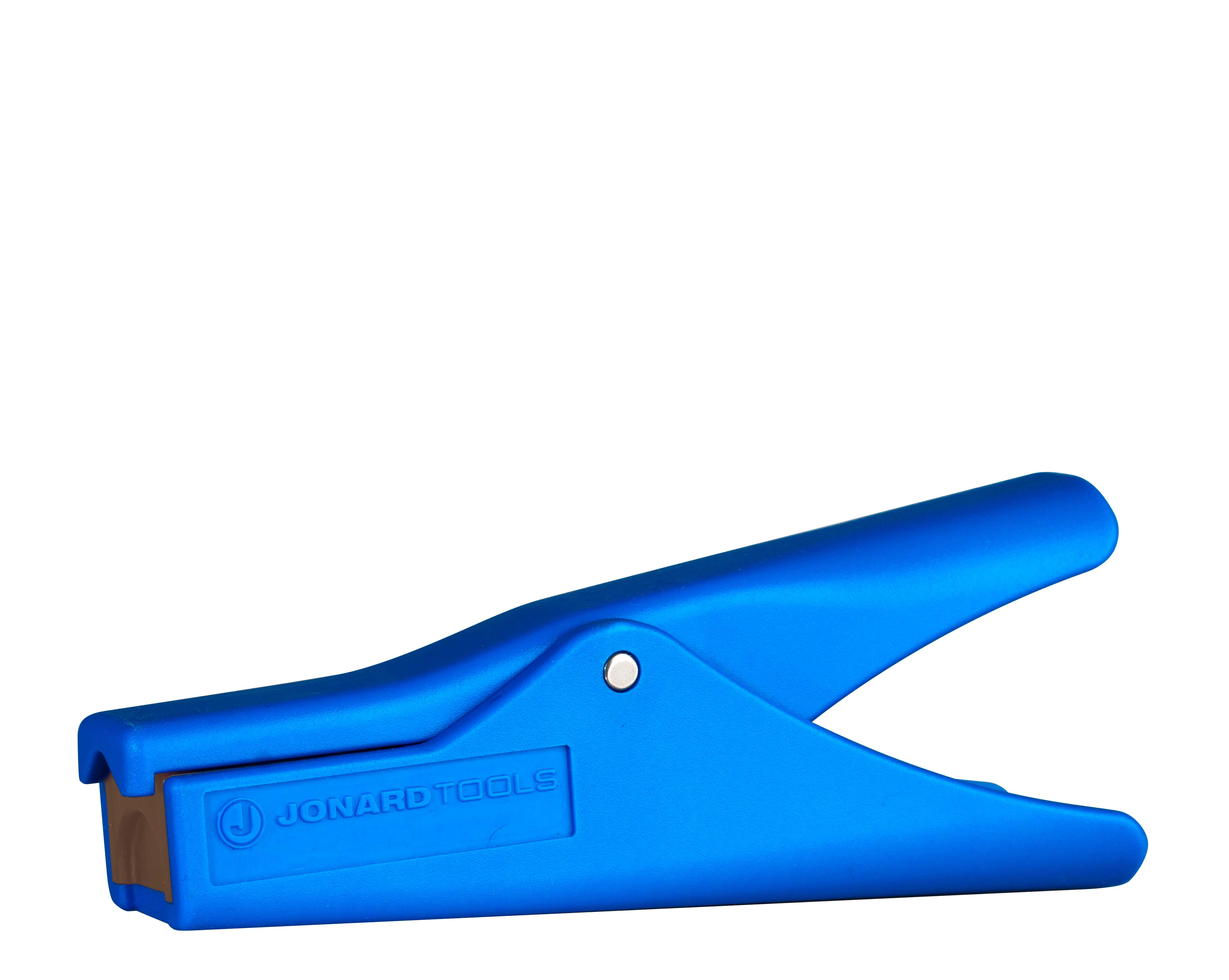

The CSS-5156 is a coaxial cable stripper specifically designed to strip the stub end of a coax cable in a wall outlet, exposing 15 mm of braid and 6 mm of the center conductor, which eliminates the need to run new cable. This coaxial cable stripper features the following:

Features:

• Easy to use: Simply insert cable, rotate like a screwdriver, and remove to strip
• Will not cut or damage the braid or score the center conductor
• High carbon steel blades last for over 5,000 strips on each side
• Hook and loop strip on bottom of tool is used to fold back braid on cable after being stripped
• Can be used with other blade cartridges, such as the CSS-105/110/115/120/125/135
• Replacement cartridge for this tool is: CSS-130

Blade Replacement Instructions:

• To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out.
• To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.
