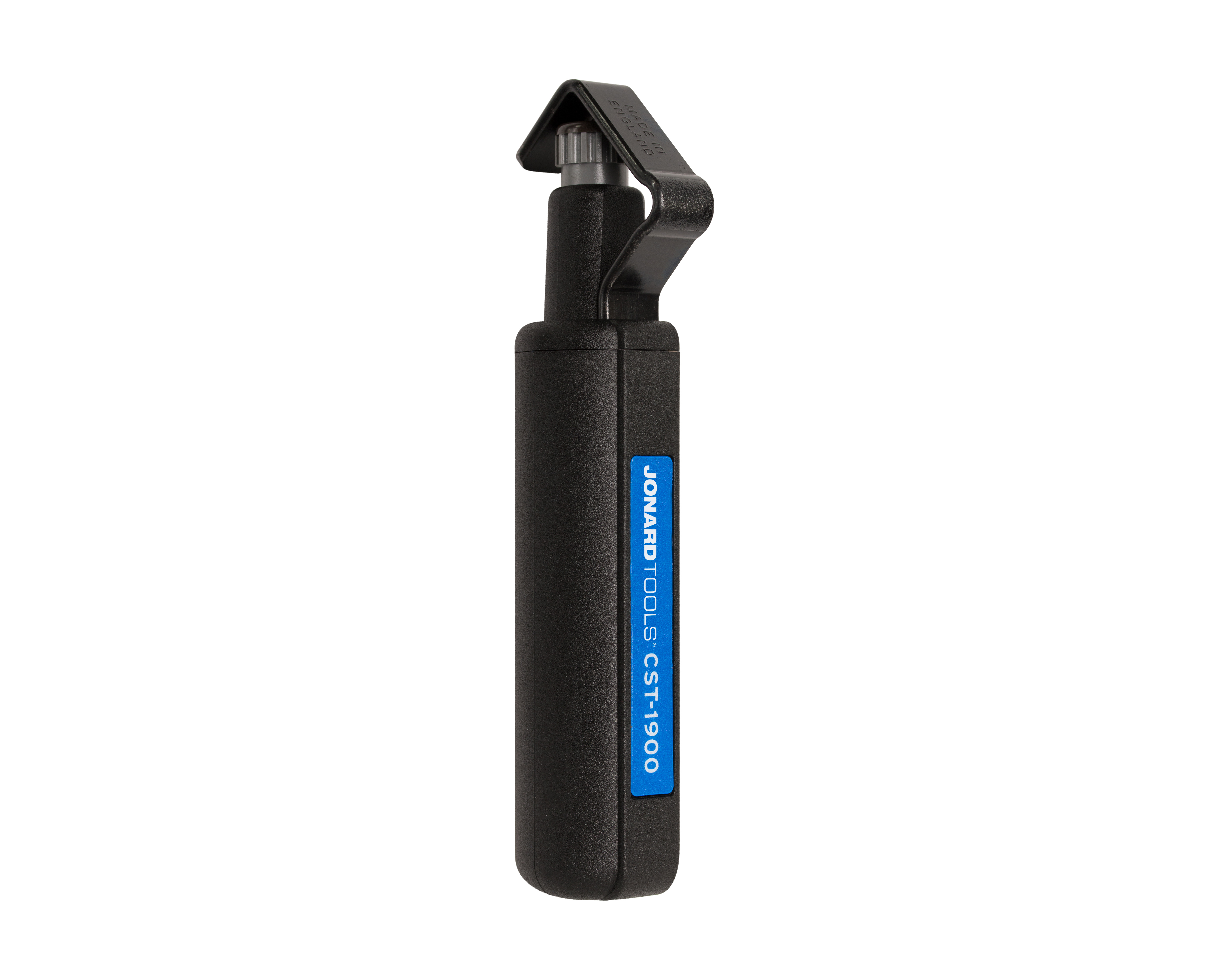

Jonard - CST-1900 - Round Cable Strip & Ring Tool
Part number:
CST-1900
Price:

The PATENTED CST-1900 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/16” to 1 1/8” (4.5 mm-29 mm) in diameter. This round cable stripper features the following:



Features:

  • Patented stripping mechanism provides a Spiral Stripping Mode to strip and remove tough insulations
  • Cuts through a variety of jacket materials such as PVC, rubber, PE, and many others

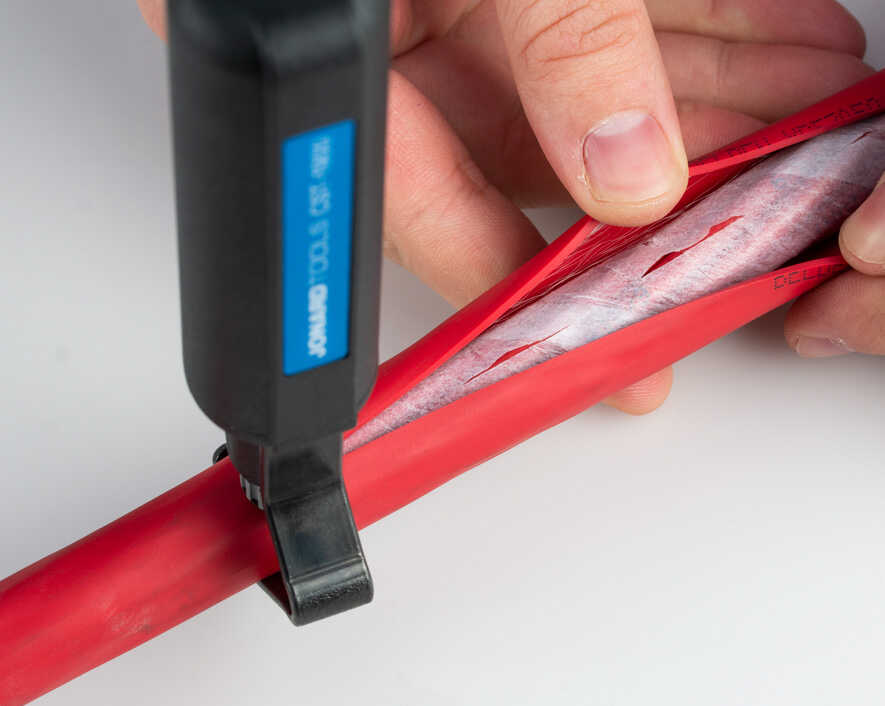

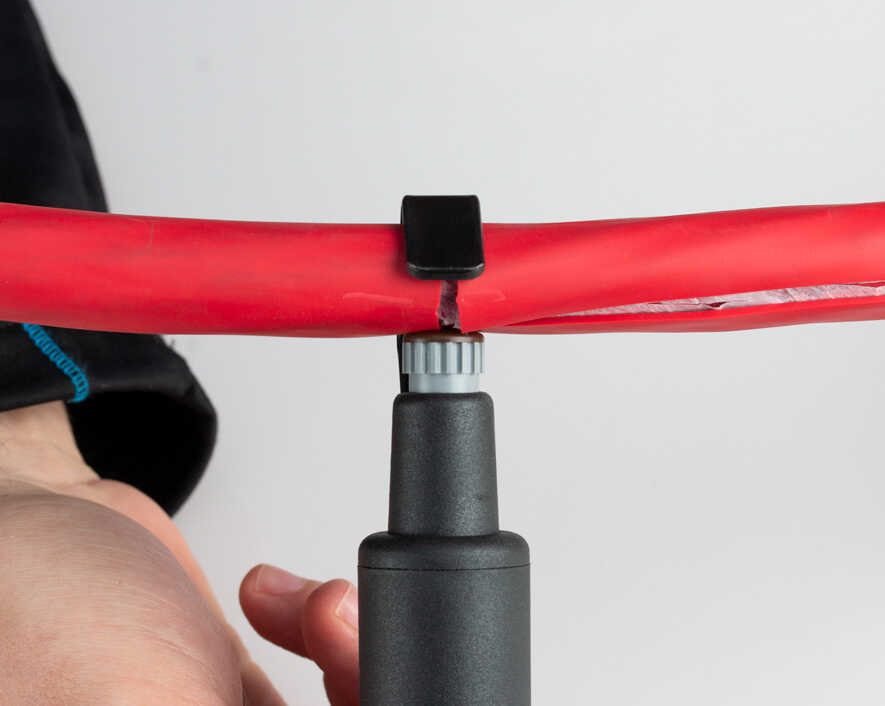

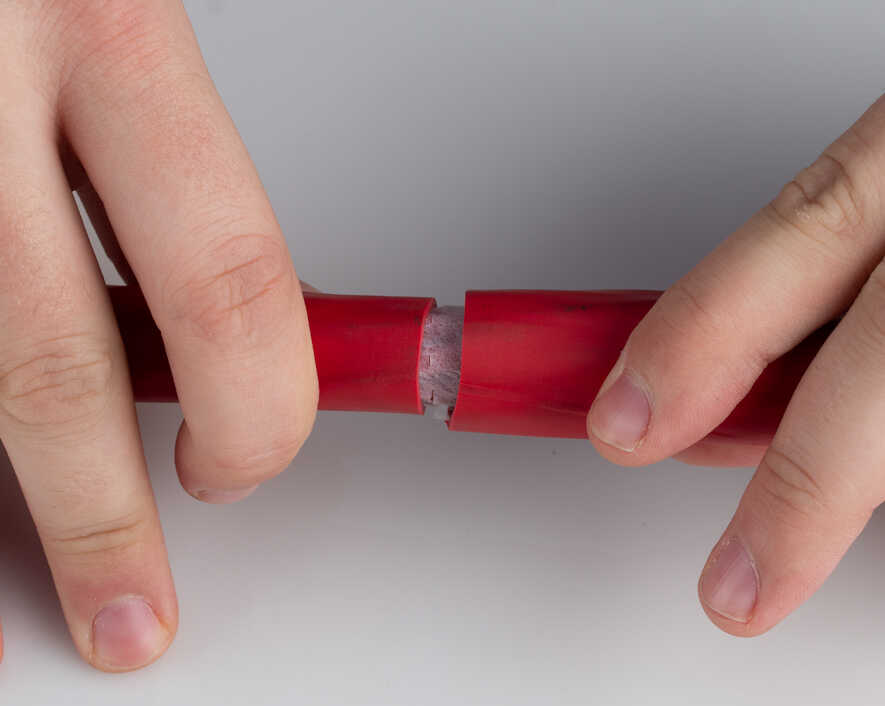

  • Triple action design makes longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal

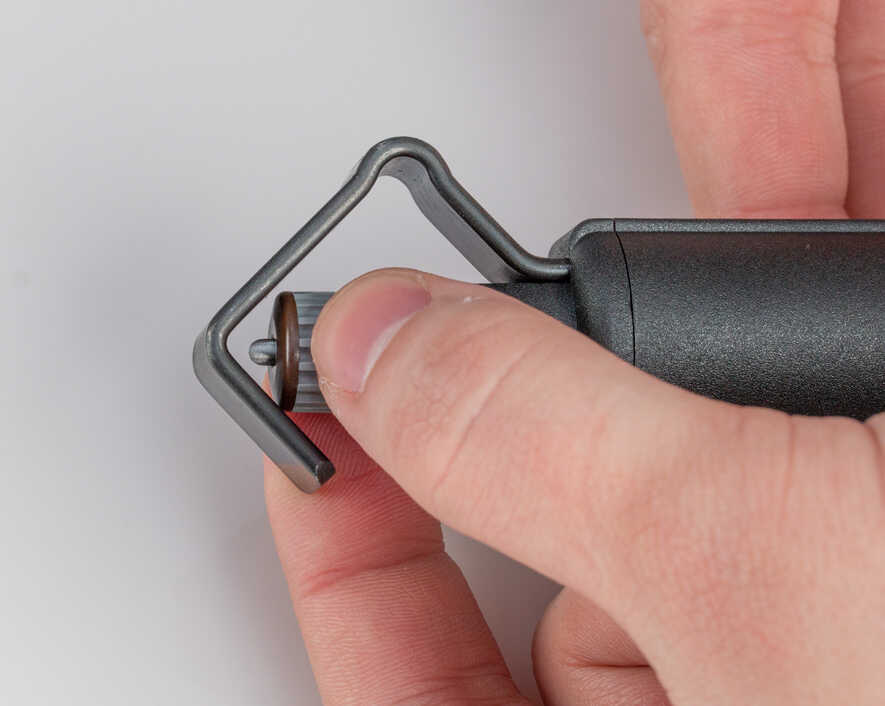

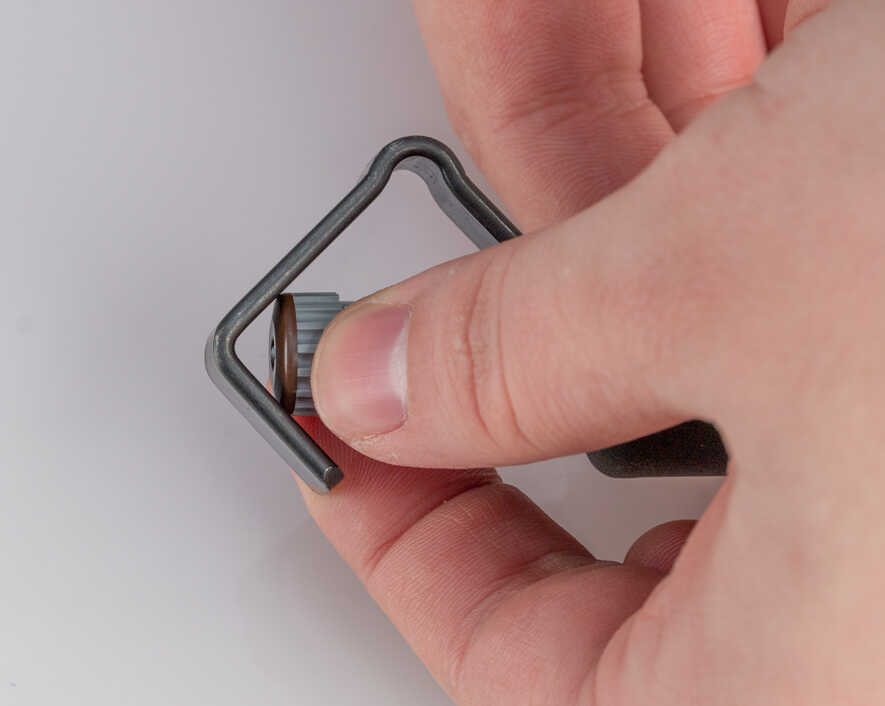

  • Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/16" to 1 1/8" (4.5 mm-29 mm) in diameter
  • Blade depth 0 mm-3 mm
  • Replacement blade is available (part #: CST-7915)
Specifications
Cut TypeSlit, Ring
Cable TypeJacket, Round Distribution
Cable Diameter3/16"-1 1/8" (4.5 mm-29 mm)
Blade Depth0 mm-3 mm
Overall Length5 1/4" (133 mm)
Dimensions5.4 in x 1.49 in x 1.2 in (13.7 cm x 3.78 cm x 3.04 cm)
Weight0.21 lb (95.34 g)
UPC #811490011977
