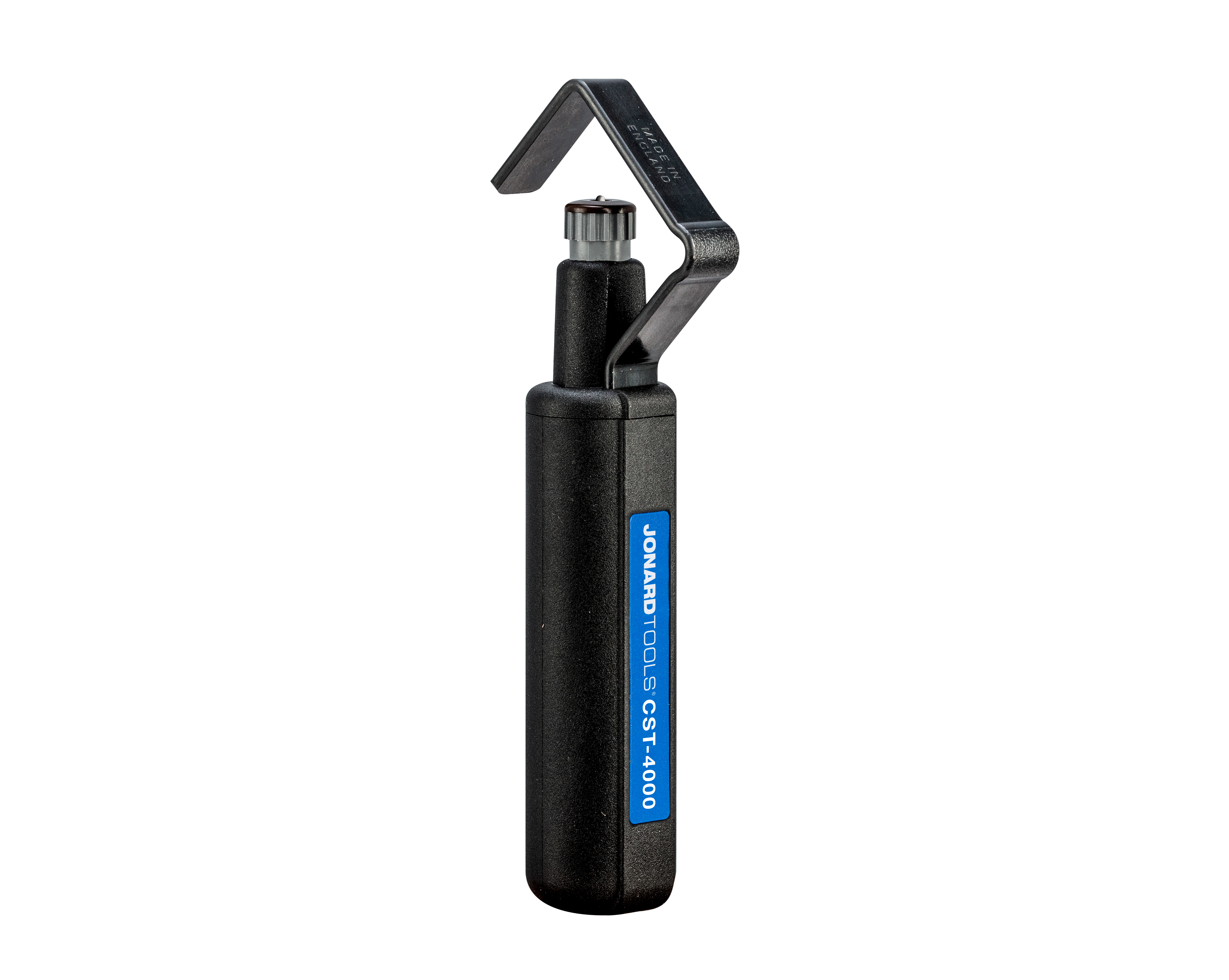

Jonard - CST-4000 - Round Cable Strip & Ring Tool for Large Cables
Part number:
CST-4000
Price:

The big brother to our popular CST-1900, the PATENTED CST-4000 Round Cable Strip & Ring Tool is designed for fast and precise removal of cable jackets from round cables that are 3/4” to 1 5/8” (19 mm to 40 mm) in diameter. This round cable stripper features the following:



Features:

  • Patented stripping mechanism provides a "spiral stripping mode" to strip and remove tough insulations
  • Can cut through a variety of jacket materials such as PVC, rubber, PE, and many more
  • Triple action design as it can make longitudinal cuts for end stripping, spiral cuts for end and mid span stripping, and circular cuts for jacket removal
  • Spring-loaded blade can be rotated 90 degrees for versatile slitting and can be adjusted for multiple round cable sizes from 3/4" to 1 5/8" (19 mm to 40 mm) in diameter
  • Blade depth 0 mm-3 mm
  • Replacement blade is available (part #: CST-7915)
Specifications
Cut TypeSlit, Ring
Cable TypeJacket, Round Distribution
Cable Diameter3/4"-1 5/8" (19 mm-40 mm)
Overall Length6.06” (154 mm)
Blade Depth0 mm-3 mm
Dimensions6.02 in x 2.17 in x 1.2 in (15.28 cm x 5.51 cm x 3.04 cm)
Weight0.23 lb (106.236 g)
UPC #811490018488
Name
Description
Size
Downloads
File
Datasheet
0.3mb
