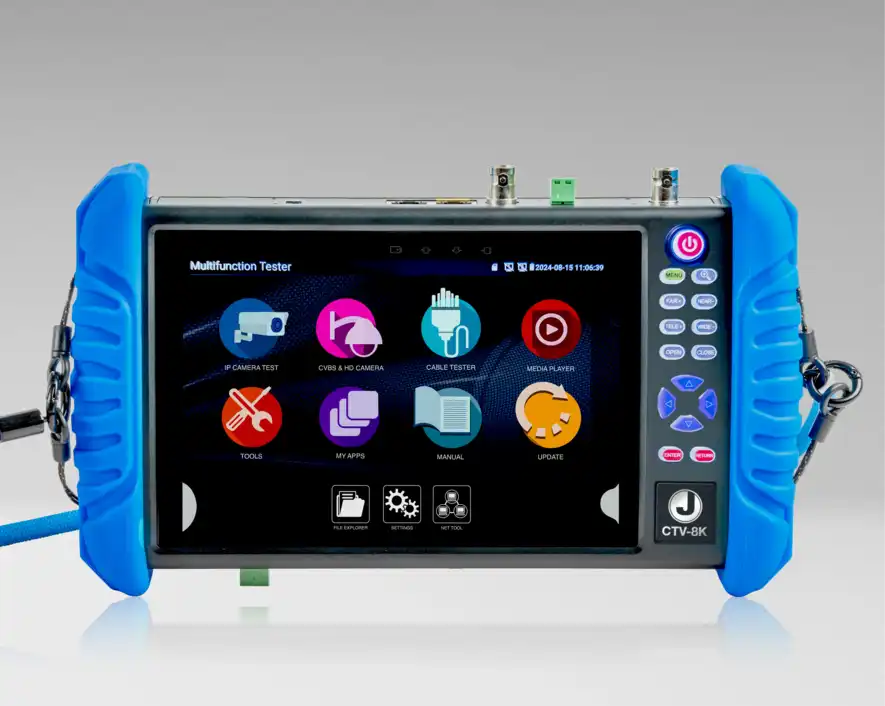

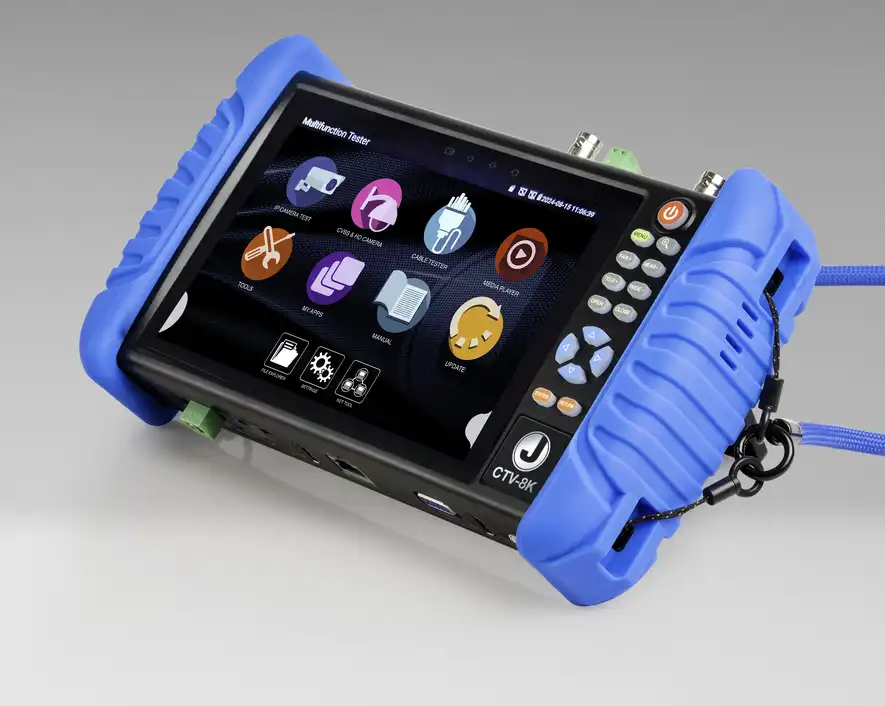

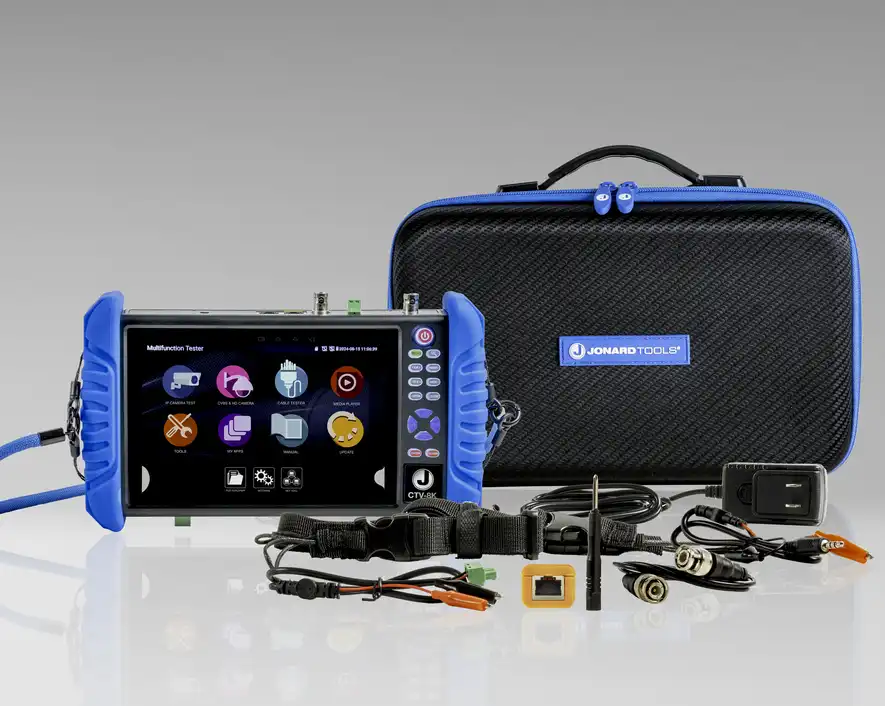

Jonard - CTV-8K - Multifunctional 8k CCTV Tester
Part number:
Price:
- • 8K IP camera test and 4K 60fps HDMI test.
- • Connect to various cameras via RJ45, Wi-Fi or BNC ports.
- • Power the camera using either a 12V Li-Ion battery or PoE/PoE+.
- • A comprehensive camera setup including aim, focus, PTZ, presets and network settings.
- • Set up security cameras using the analogue video port.
| IP Camera Test | 8K H.265 IP |
| HDMI Output | Max support 4K 60FPS; Open HDMI app output pure color interface |
| VGA Input | Supports up to 1920 x 1080P |
| Additional Functions | PoE protocol detection and testing; Real-time network traffic monitoring; Cable Length Measurement/TDR; RS485 input/output |
| Android System Version | 11 |
| Supported Camera Types | IP, CVBS, AHD, CVI, TVI |
| Battery | 7800mAh, 60 hours working time |
Name
Description
Size
Downloads
File
Data Sheet - Multifunctional 8k CCTV Tester - CTV-8K.pdf
0.6mb
Introducing the CTV-8K: the ultimate multifunctional CCTV tester supporting a wide array of camera types, making the setup and testing of your network a breeze. With built-in PoE and HDMI testing capabilities, as well as an RJ45 TDR tester, this all-in-one solution enables you to effortlessly verify and troubleshoot your entire system. Boost your productivity from start to finish with the CTV-8K installation and troubleshooting tester for digital/IP, HD coax and analogue CCTV camera systems.
