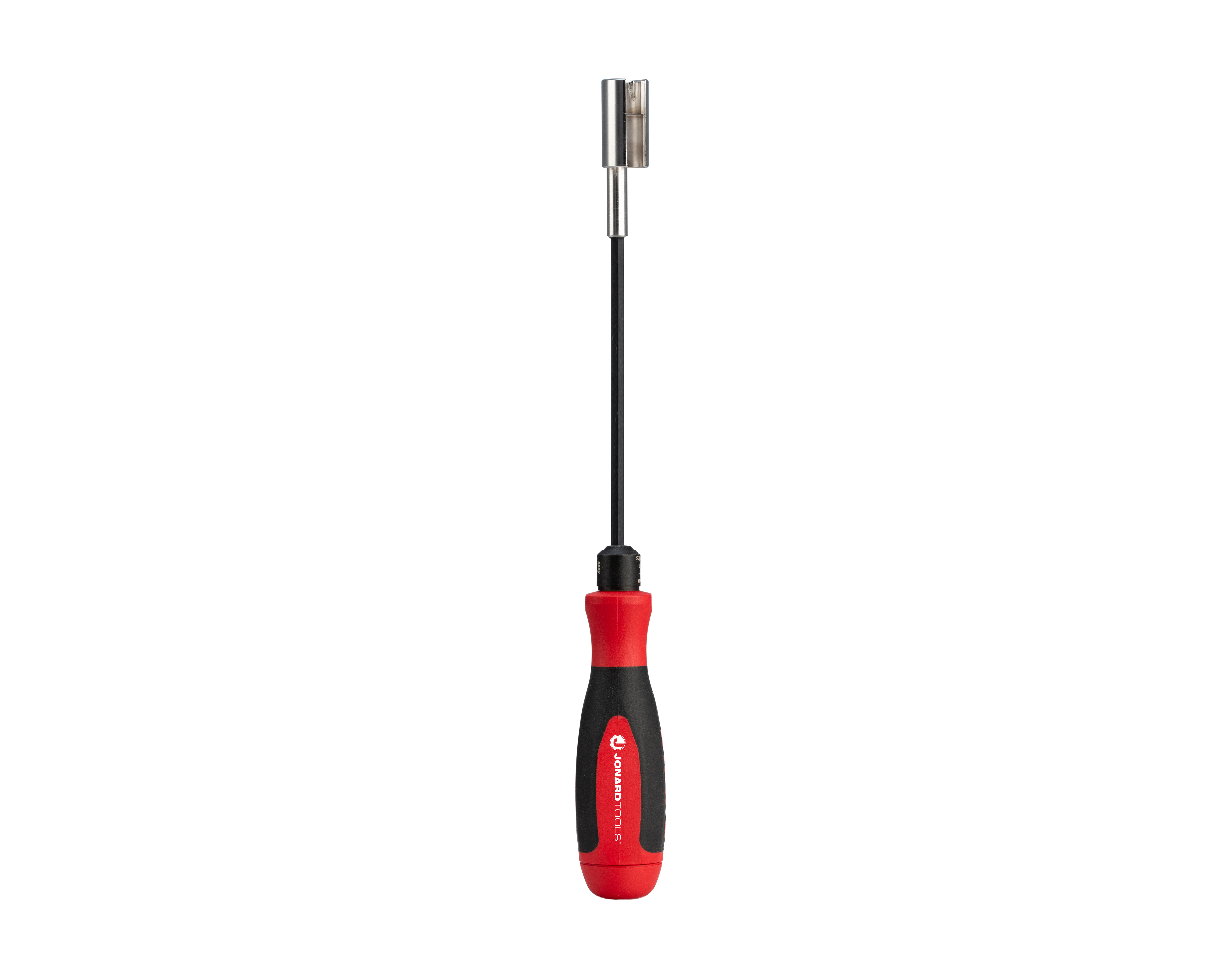

Jonard - CTW-716312 - F Connector Torque Wrench, 30 in-lb, 12"
Part number:
CTW-716312
Price:

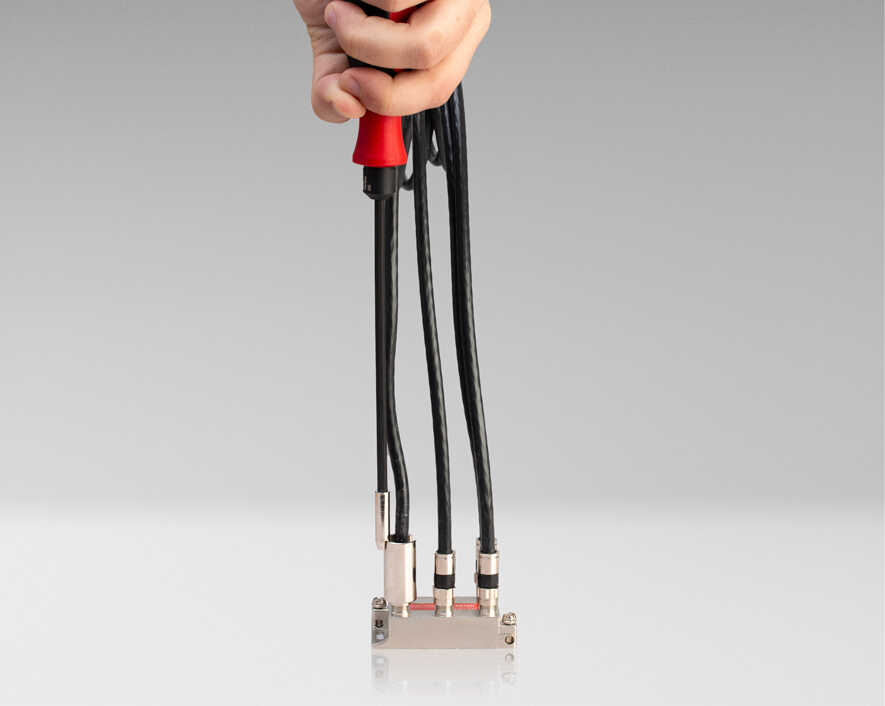

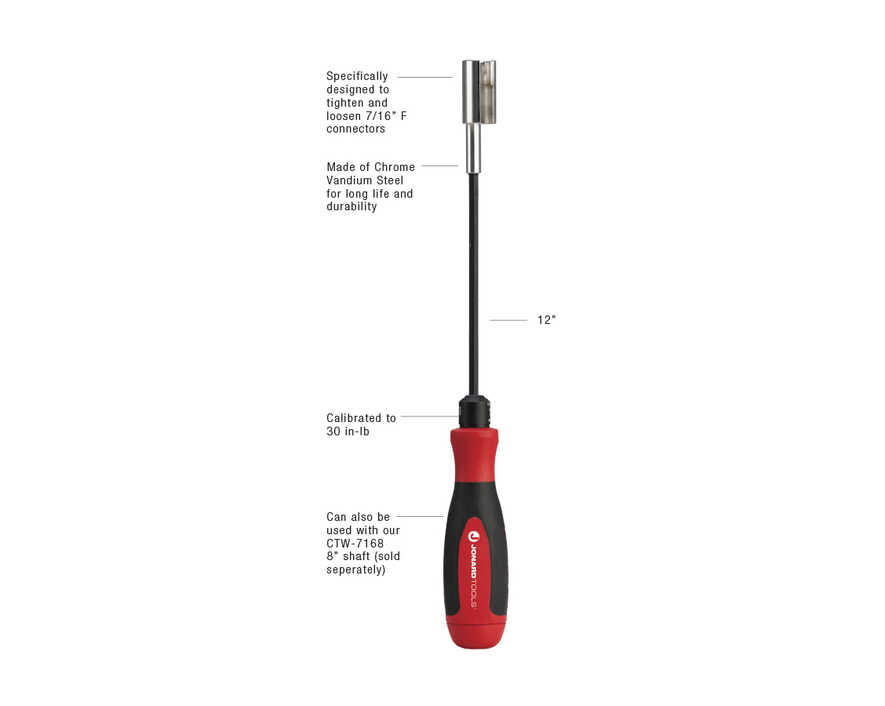

Designed for torquing F connectors to 30 in-lb (3.4 N-m), this torque wrench is perfect for tightening or loosening F connectors in high-density locations. This torque wrench features the following:



Features:

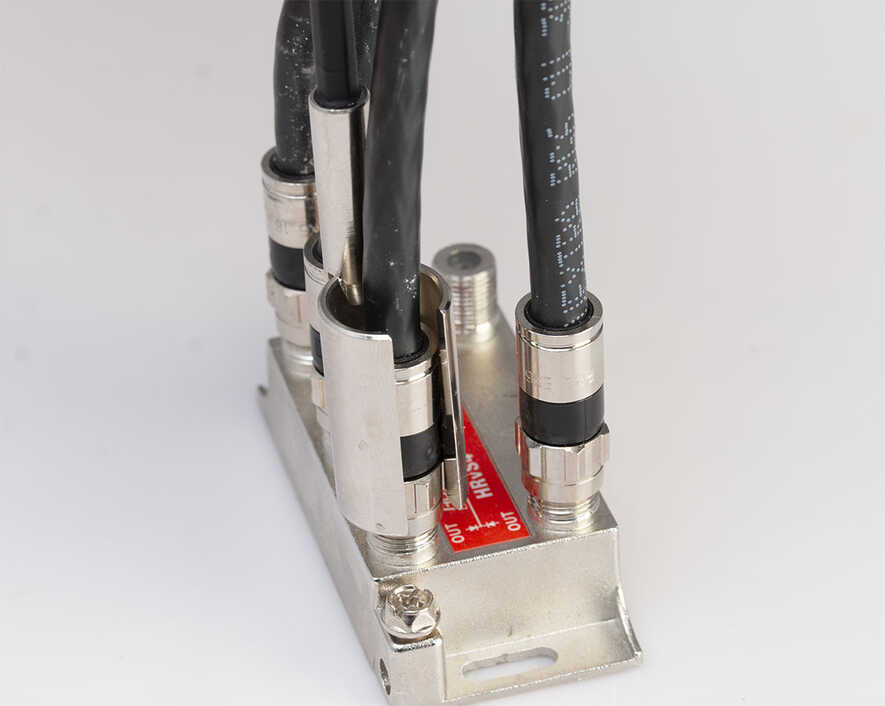

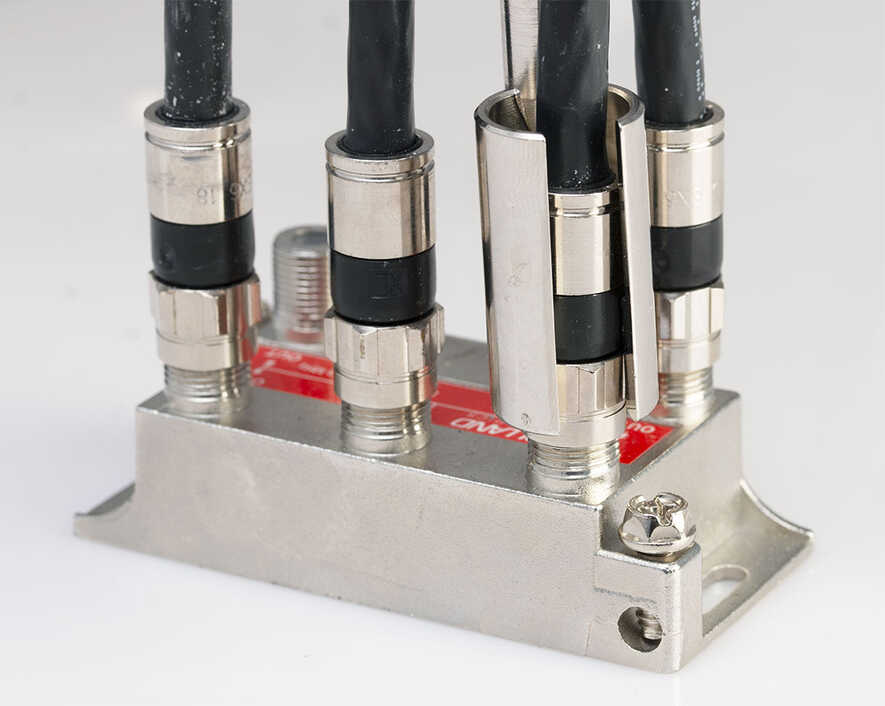

  • Ideal for use in high-density locations such as headends
  • Handle has audible click sound that lets you know when the connector is fully torqued to 30 in-lb
  • Turn clockwise to tighten the connector and counterclockwise to remove
  • Preset calibration to 30 in-lb (3.4 N-m) to meet most manufacturers' recommended torque requirements for their F connectors so no adjustments are needed
  • 12" shaft provides extra length in hard to reach locations
  • Shaft made of chrome vanadium steel for high durability and long life
  • Handle has ergonomic rubberized grip for increased comfort and improved leverage
  • Can also be used with a 8" shaft (CTW-7168) sold separately



This torque wrench includes:

  • CTW-71612 F Connector Torque Wrench Shaft, 12"
  • CTW-H F Connector Torque Wrench Handle
Specifications
Connector TypeF Connector
Dimensions13" x 1.3" x 1.3" (33.0 cm x 3.3 cm x 3.3 cm)
Shaft Length12" (30.48 cm)
Assembled Length13" (33.0 cm)
Shaft MaterialChrome Vanadium Steel
Weight0.33 lb (149.82 g)
UPC #811490018426
