Jonard - DFB224 - Wrap/Unwrap Bit & Sleeve Set, 22-24 Awg
Part number:
DFB224
Price:

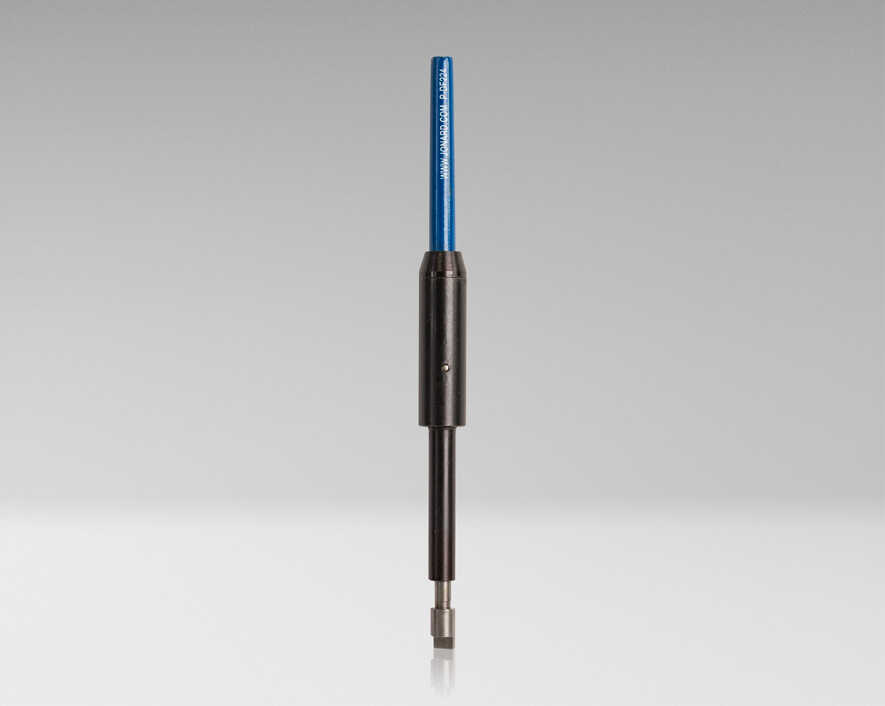

This patented wire 22-24 AWG wrapping/unwrapping bit and sleeve set offers a revolutionary way to approach wire wrapping by combining both wire wrapping and unwrapping functions into one bit/sleeve set. This bit and sleeve set features the following:
Features:
- Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
- Easily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping Tool
- Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
- Retractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shorting
The kit includes:

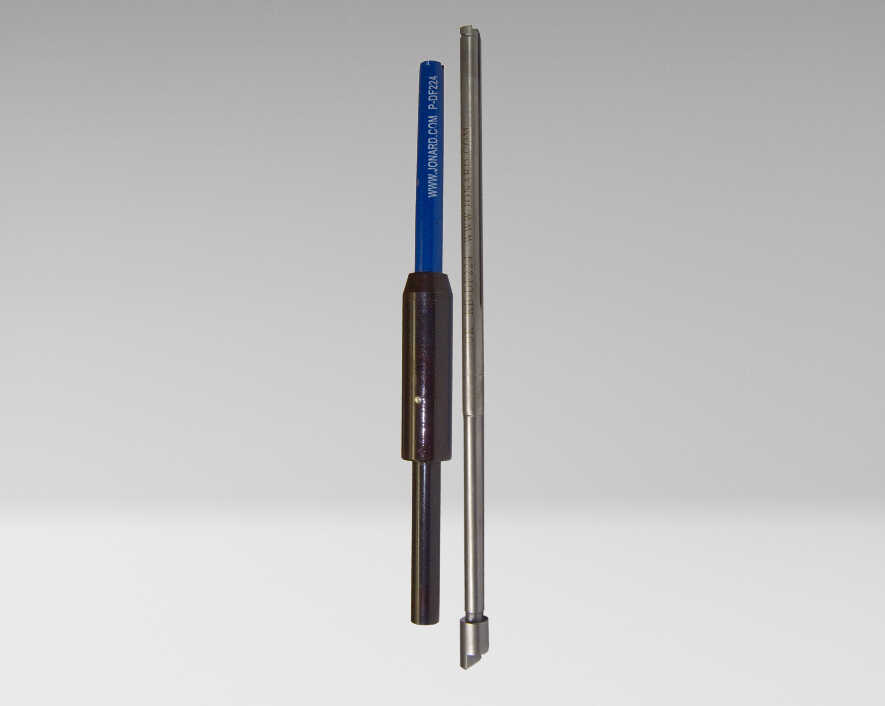

- KB-DF224 Wrap/Unwrap Bit (22-24 AWG)
- P-DF224 Replacement Sleeve Assembly (DFB224, 22-24 AWG)
| SPECIFICATIONS | _ |
| WRAP FUNCTION | Wrap, Unwrap |
| WIRE GAUGE | 22-24 AWG (0.65 mm-0.50 mm) |
| MINIMUM TERMINAL DIAGONAL | 0.054” (1.37 mm) |
| MAXIMUM TERMINAL DIAGONAL | 0.073” (1.85 mm) |
| TERMINAL HOLE DEPTH | 0.50” (12.70 mm) |
| TERMINAL HOLE DIAMETER | 0.075” (1.9 mm) |
| EFFECTIVE RADIUS | 0.111” (2.82 mm) |
| WRAP POST SIZE | 0.045” (1.14 mm) |
| LENGTH | 5” (127 mm) |
| WEIGHT | 0.134 lbs (60.72 g) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
