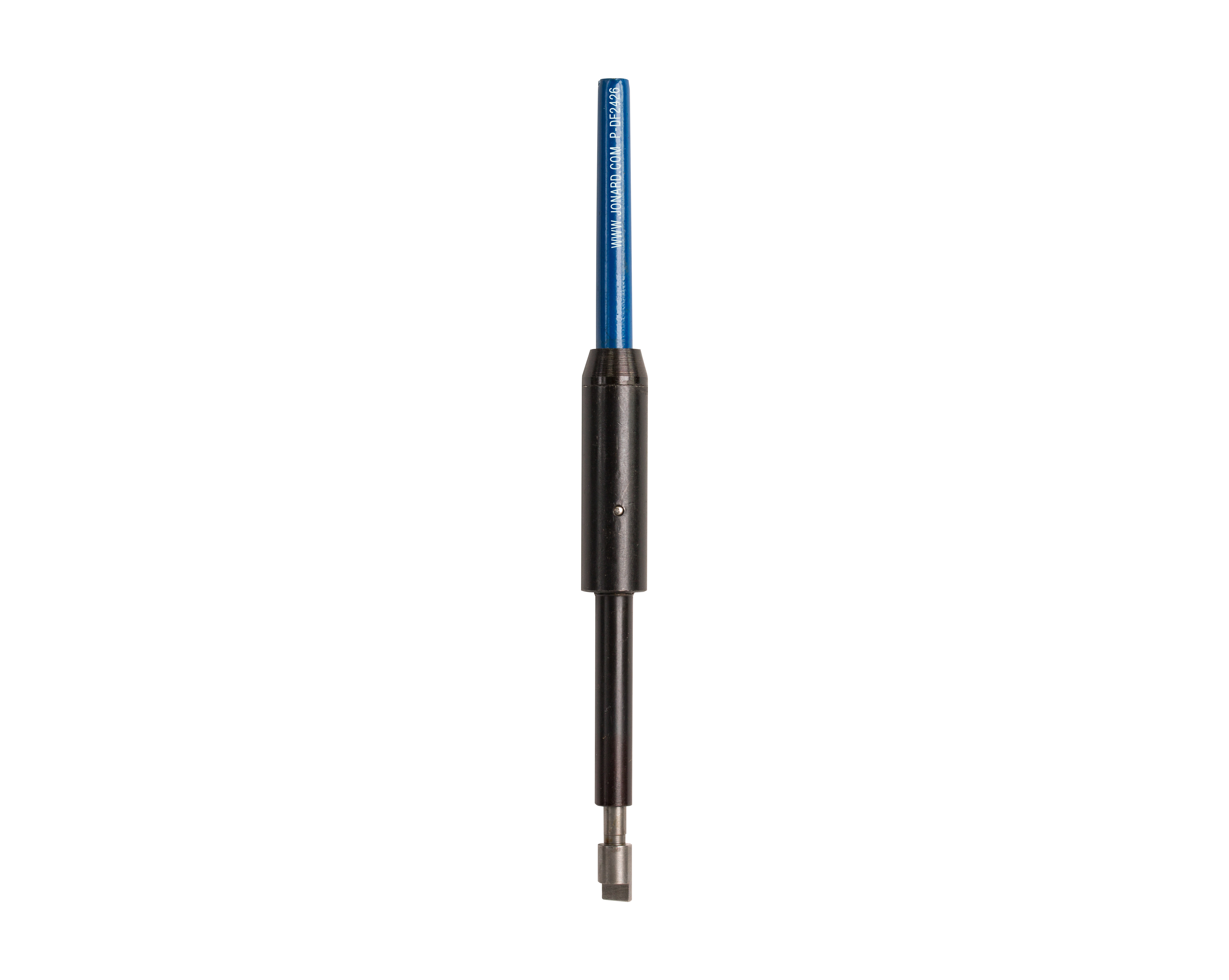

Jonard - DFB2426 - Wrap/Unwrap Bit & Sleeve Set, 24-26 Awg
Part number:
DFB2426
Price:

This patented wire 24-26 AWG wrapping/unwrapping bit and sleeve set offers a revolutionary way to approach wire wrapping by combining both wire wrapping and unwrapping functions into one bit/sleeve set. This bit and sleeve set features the following:



Features:

  • Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
  • Easily switch between wrap and unwrap mode by retracting or extending the sleeve and flipping the switch on a PTX Wire Wrapping/Unwrapping Tool
  • Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
  • Retractable wire wrapping sleeve is coated with a durable 1000V dielectric material to prevent pin-to-pin shorting



The kit includes:

  • KB-DF2426 Wrap/Unwrap Bit (24-26 AWG)
  • P-DF2426 Replacement Sleeve Assembly (DFB2426, 24-26 AWG)
Specifications
Wrap FunctionWrap, Unwrap
Wire Gauge24-26 AWG (0.50-0.40 mm)
Minimum Terminal Diagonal0.054” (1.37 mm)
Maximum Terminal Diagonal0.065” (1.65 mm)
Terminal Hole Depth0.50” (12.70 mm)
Terminal Hole Dia.0.066” (1.67 mm)
Effective Radius0.098” (2.48 mm)
Wrap Post Size0.045” (1.14 mm)
Length5” (127mm)
Weight0.133 lbs
Name
Description
Size
Downloads
File
Datasheet
0.3mb
