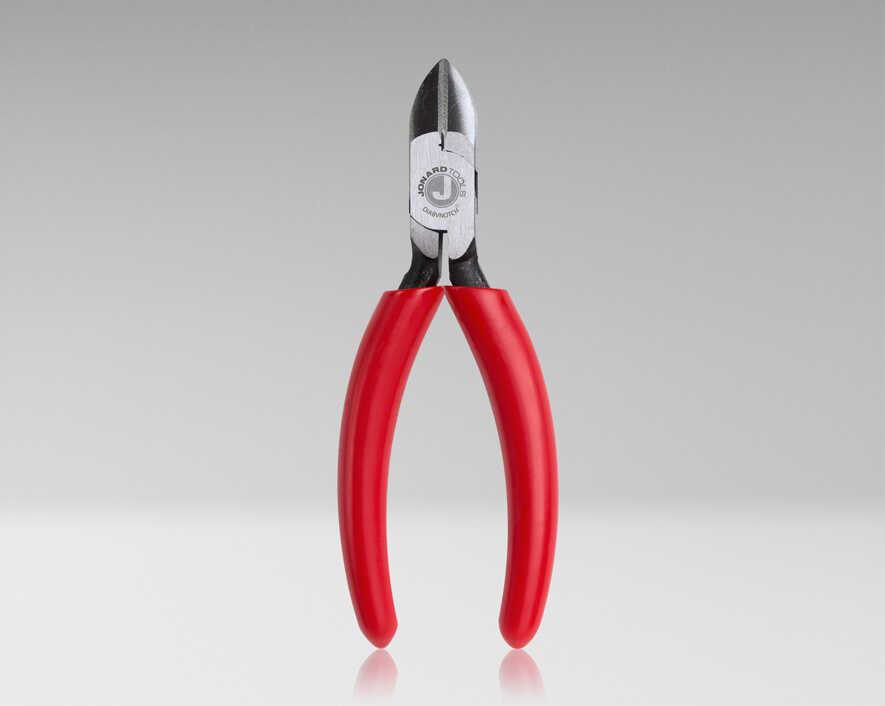

Jonard - DIABVNOTCH - Diagonal Pliers Crushing Slitting
Part number:
DIABVNOTCH
Price:

Jonard’s diagonal cutting pliers are made of polished chrome vanadium steel and are heat-treated for maximum strength and durability. These diagonal cutting pliers feature the following:



Features:

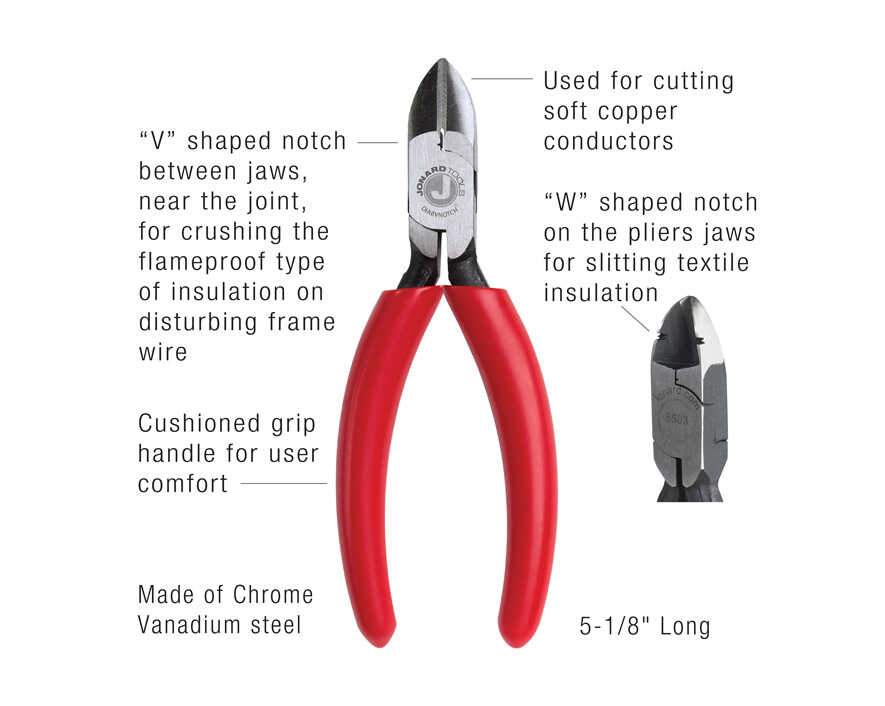

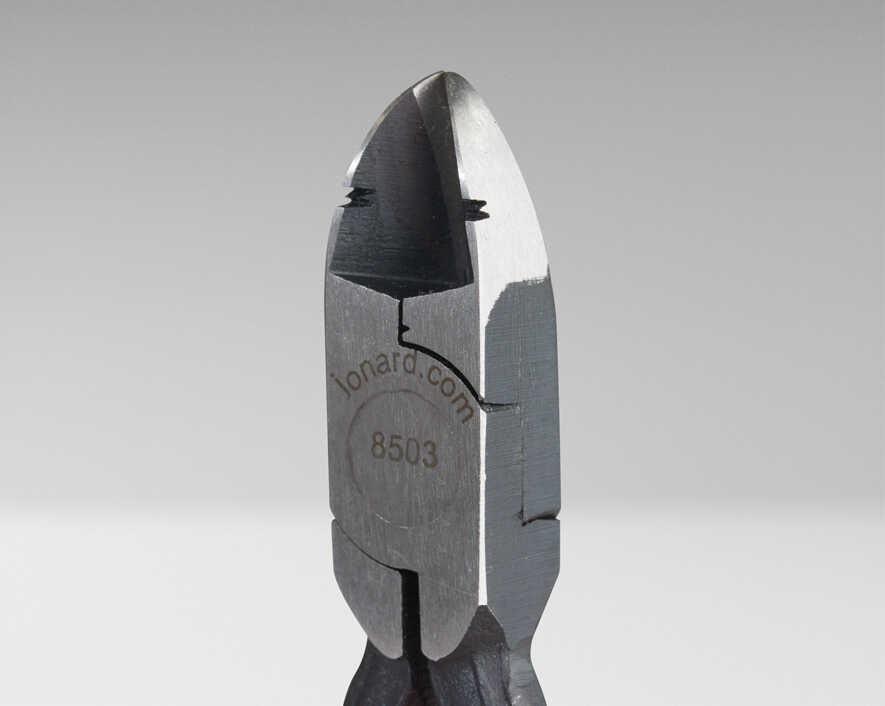

  • Induction-hardened cutting edge to provide a clean cut every time

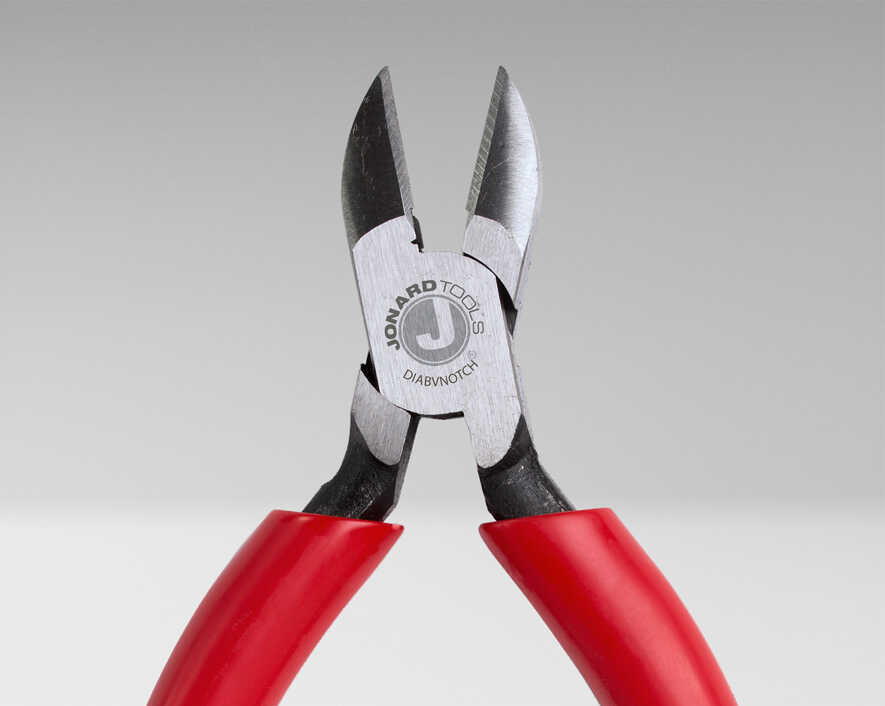

  • V-shaped notch between jaws for crushing flameproof insulation on distributing frame wire
  • Two W-shaped notches on jaws for slitting textile insulation
  • Ergonomically designed handle with dipped plastic grip for greater comfort and torque
  • This product complies with ASME B107.11 and ISO 5749 standards
SPECIFICATIONS-
CUT TYPEDiagonal
JAW LENGTH3/4” (19.05mm)
JAW THICKNESS11/32” (8.73mm)
JAW WIDTH1/2” (12.70mm)
MATERIALChrome Vanadium Steel
STANDARDSASME B107.11 and ISO 5749
LENGTH5-1/8” (130.18mm)
WEIGHT0.271 lbs (122.92g)
