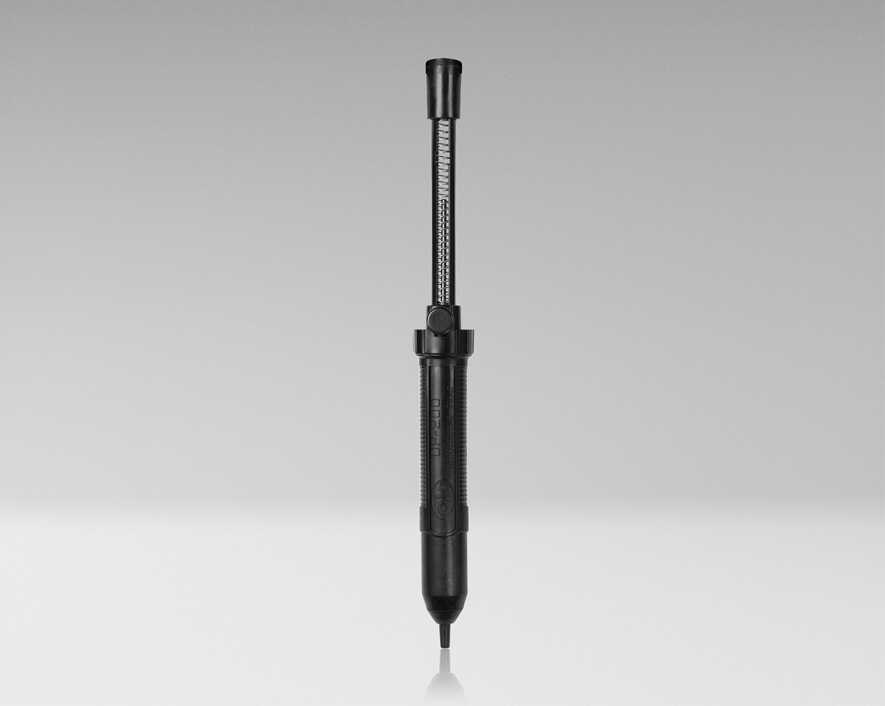

Jonard - DP-200 - Antistatic Desolder Pump
Part number:
DP-200
Price:

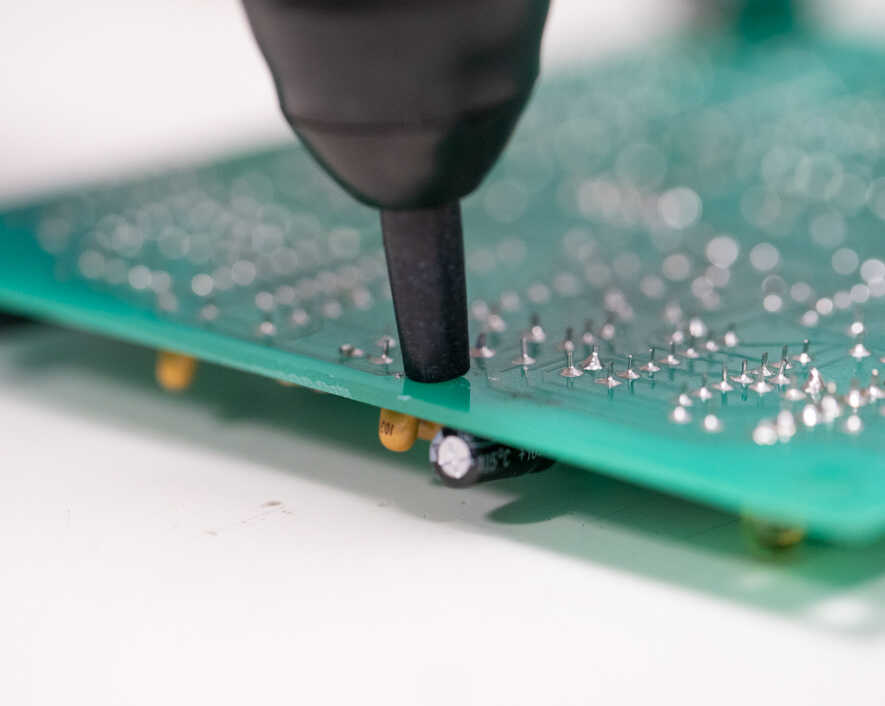

Fitted with an ESD safe Teflon tip and 13" long ESD safe housing, the DP-200 ESD Safe Desolder Pump provides high-vacuum suction to remove solder with high precision. This desolder pump also features the following:



Features:

  • ESD Safe construction prevents electrostatic discharge from occurring
  • Durable plastic housing and plated springs provide excellent corrosion resistance
  • Precision metal plunger and insulated vacuum pulse remove solder with ease
  • 1 ms (30%) regulated return and uniform reset pressure (11 in-lb 20%) provide consistent repeatable operation
  • Cushioned shock reduction minimizes board damage when solder is removed
  • Shorter length makes it easier to use and store
SPECIFICATIONS
MATERIALESD Safe
OVERALL LENGTH1 3" (330mm)
WEIGHT0.298 lbs (1 35.1 7g)
REPLACEMENT TIPDPT-200
REPLACEMENT TIPHigh Vacuum Desoldering Pump, ESD Safe
