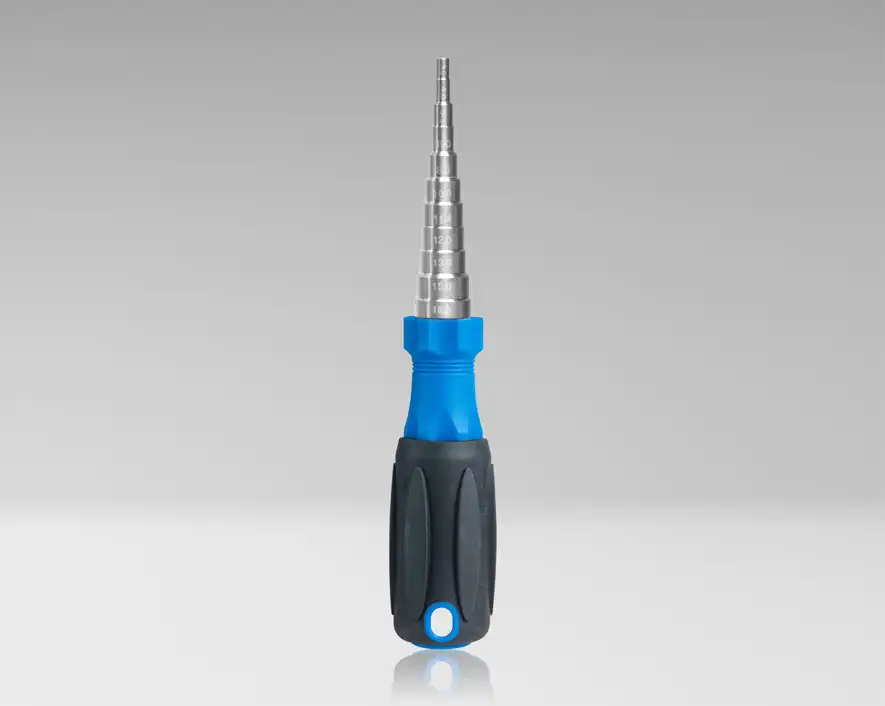

Jonard - DRT-316 - Duct Reforming Tool 3.5 mm - 16 mm
Part number:
Price:
- • Reforms microducts with an inside diameter of 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0 or 16.0 mm.
- • Chamfered edges on each step to allow easy insertion into microducts with minimal force.
- • Suitable for thin- and thick-walled microducts in accordance with the DIN EN 50411-6-1 and DIN EN 60794-5 standards.
- • The comfort grip handle is ergonomic, making it easy to use.
| Step Diameters | 3.5, 4.0, 5.5, 6.0, 8.0, 10.0, 11.4, 12.0, 15.0, 16.0 mm |
| Dimensions | 6.5 in x 1.22 in x 1.22 in (16.51 cm x 3.1 cm x 3.1 cm) |
| Weight | 0.12 lb (55.388 g) |
Name
Description
Size
Downloads
File
Data_Sheet_Duct_Reforming_Tool_DRT-316.pdf
0.5mb

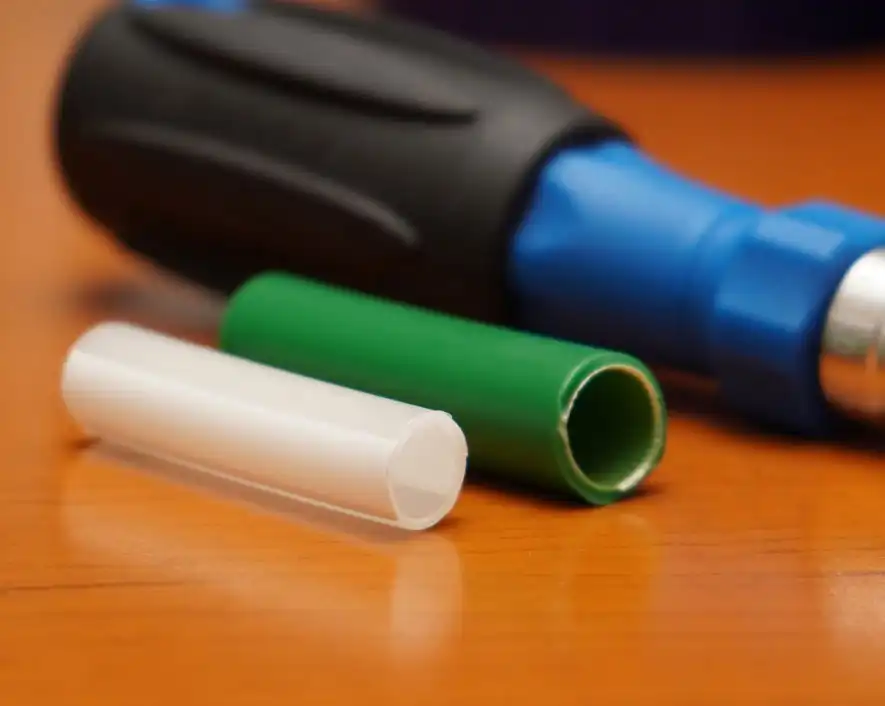

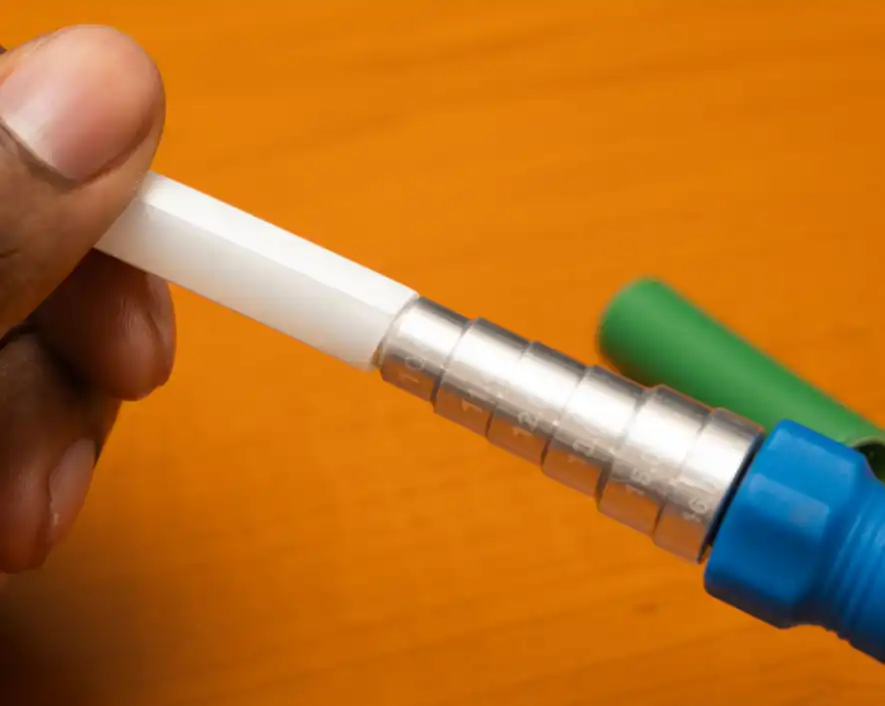

This duct reforming tool is designed to reform microducts after they have been cut. It is perfect for reshaping the geometry of microducts to prevent blowout stops when they are connected.
