Jonard Tools - DTR-1 - Wedgelock Removal Tool, DT and AT Series Connectors
Part number:
Price:
• Engineered to prevent damage to both the connector and wire, ensuring easy and safe separation of wires from terminals
during repairs or maintenance.

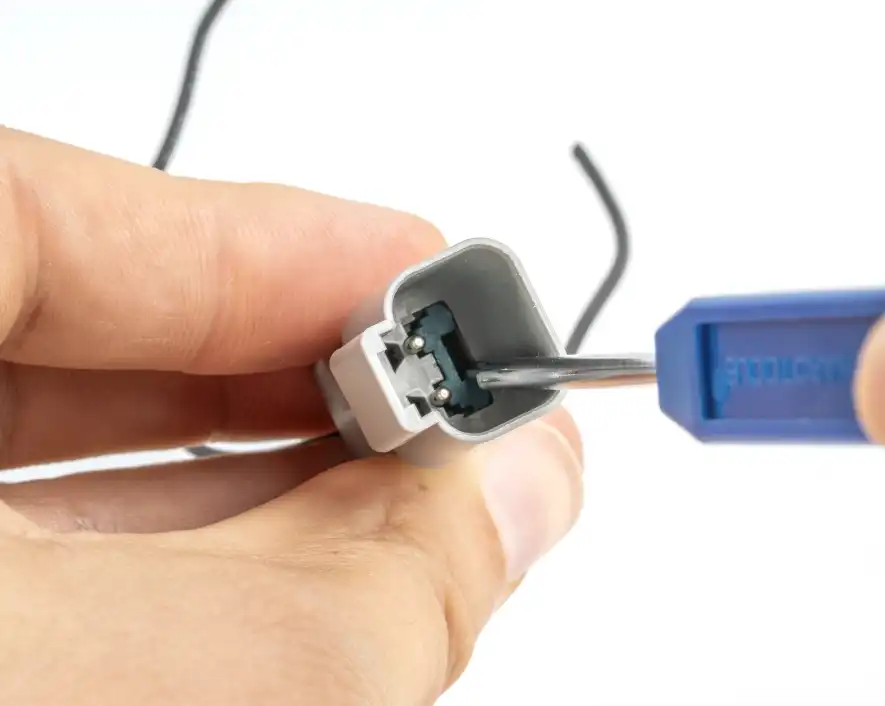

• Screwdriver Tip: Ideal for lifting and removing the receptacle wedge-lock cap, as well as releasing the pin contact.

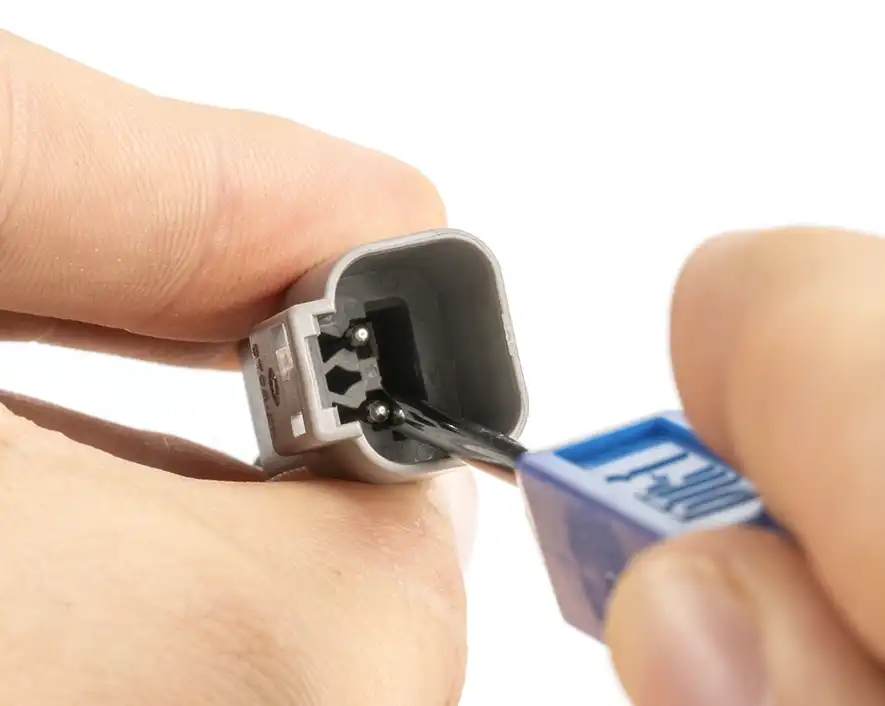

• Hook Tip: Designed to grasp and pull the internal plug wedgelock from the connector.
• Ergonomic Handle for comfort and ease of use, providing a secure, comfortable grip during operation.
| Double-endedFunction | Contact Release / Wedgelock Removal |

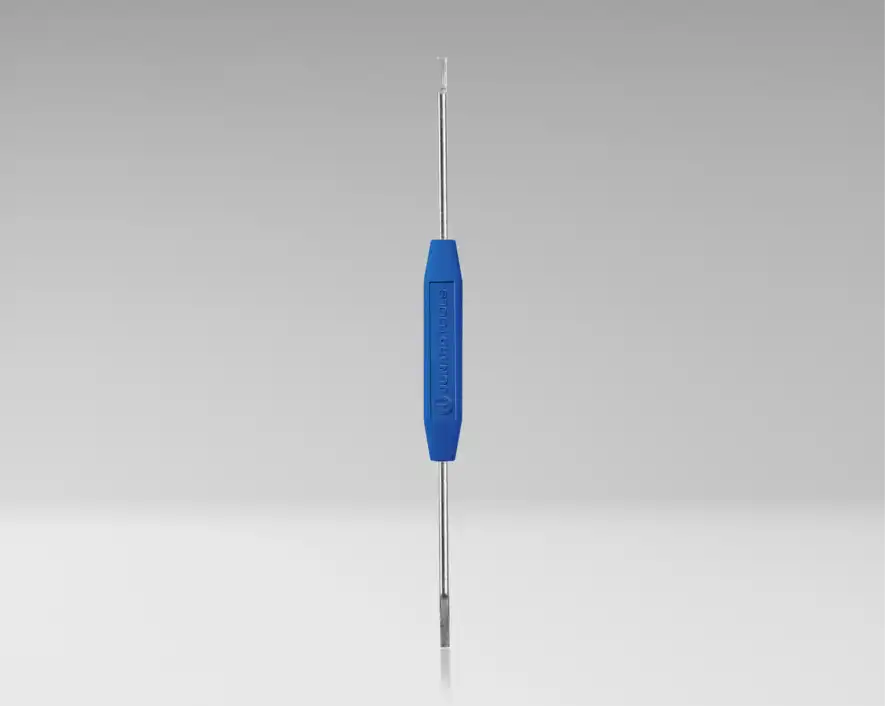

| Configuration | Double ended removal tool with a hook tip and a screwdriver tip |
| Compatible Connector Type | Deutsch DT Series Connectors (DT, DTM, DTP, DTV, DRB, DRCP, and Strike Connectors) and Amphenol AT Series Connectors (AT, ATM, ATP Connectors) |
| Hook Length | 2.25" |
| Screwdriver Length | 2.25" |
| Total Length | 7.25" |
| Dimensions | 7.25" x 0.5" x 0.5" (18.41 cm x 1.27 cm x 1.27 cm) |
| Weight | 0.04 lb (16.34 g) |
