Jonard - EP-QTH38B - Termination & Removal Tool
Part number:
EP-QTH38B
Price:
Designed for use on quick-clip terminals, this termination tool is perfect for terminating, bridging, and removing wires from 2-beam or 3-beam, and insulation-slicing terminal blocks. This termination and removal tool features the following:
Features:

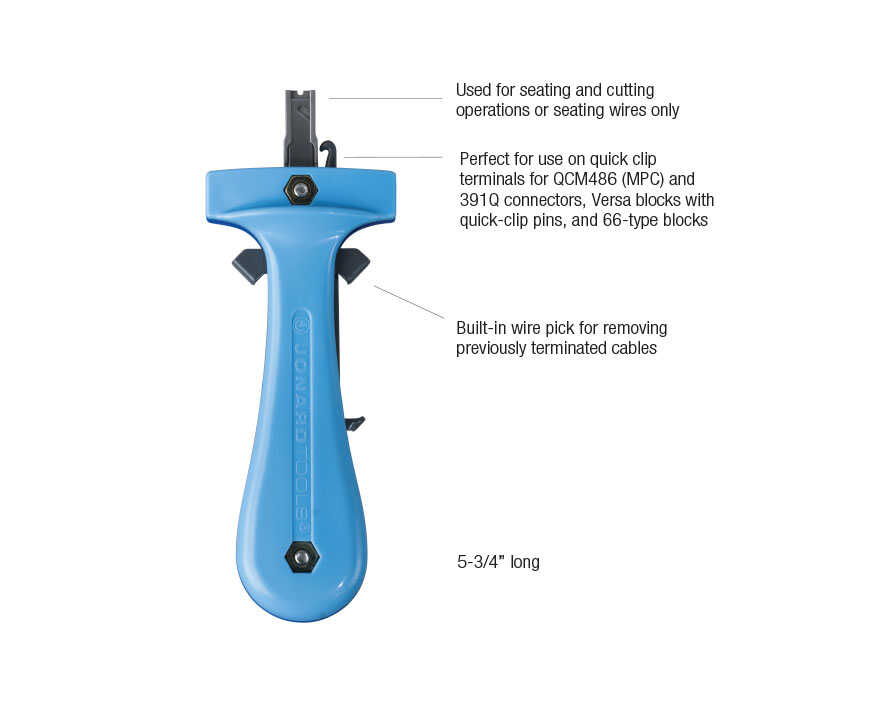

- Perfect for use on quick clip terminals for QCM486 (MPC) and 391Q connectors, Versa blocks with quick-clip pins, and 66-type blocks
- Used for seating and cutting operations or seating wires only
- Built-in wire pick for removing previously terminated cables
| Specifications | |
| Block Type | 66, CO/Quick Clip |
| Functions | Terminating, bridging, and removing wires |
| For Use With | 2-beam, 3-beam, quick clip terminals on QCM468, 391Q connectors, Versablocks quick-clip pins |
| Dimensions | 5.73 in x 2.06 in x 1.09 in (14.55 cm x 5.24 cm x 2.76 cm) |
| Weight | 0.15 lb (67.192 g) |
| UPC # | 811490016705 |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
