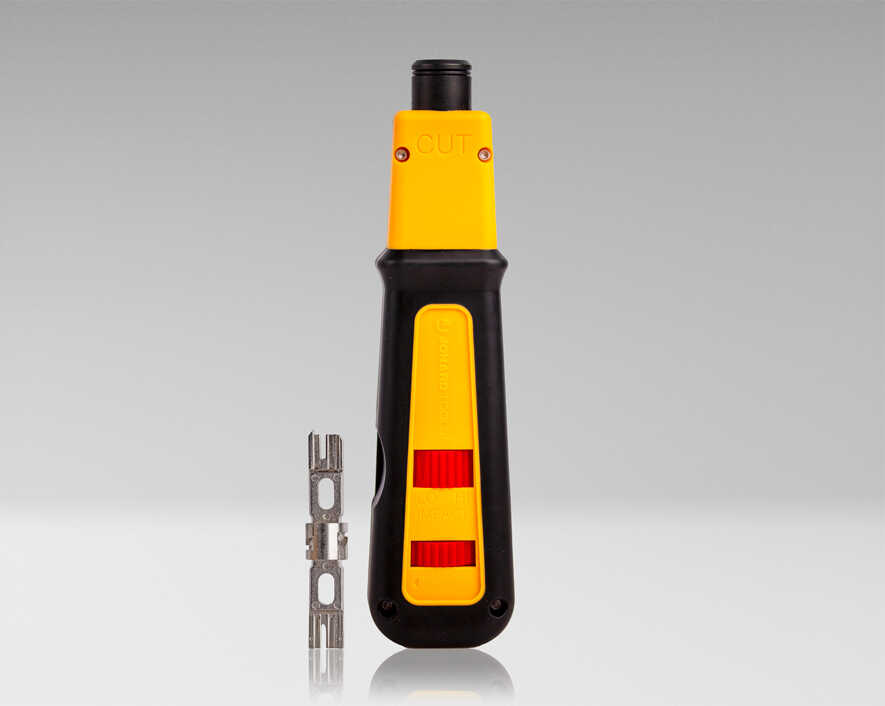

Jonard - EPDS-914KR - Punchdown Tool with Grip and Krone Blade
Part number:
EPDS-914KR
Price:

Designed for use with our EPB-series blades or other similar brands, this punchdown tool is perfect for any telecom or data communications installer. This punchdown tool features the following:



Features:

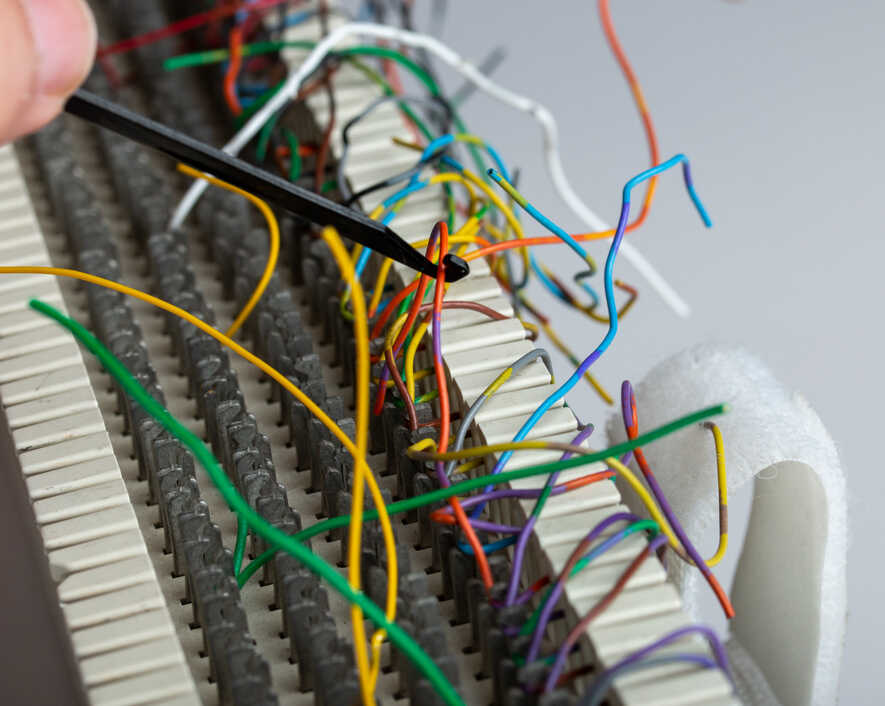

  • Cleanly terminates and trims wires in Krone termination blocks
  • Comfortable molded rubber grip on handle eliminates slipping and reduces hand fatigue
  • Hi/Lo impact settings (Hi: 40 lb / 178 N, Lo: 30 lb / 133 N) terminate 22-28 AWG (0.08 - 0.34 mm2) solid or stranded wire
  • Combination Hook/Spudger stored in the chassis

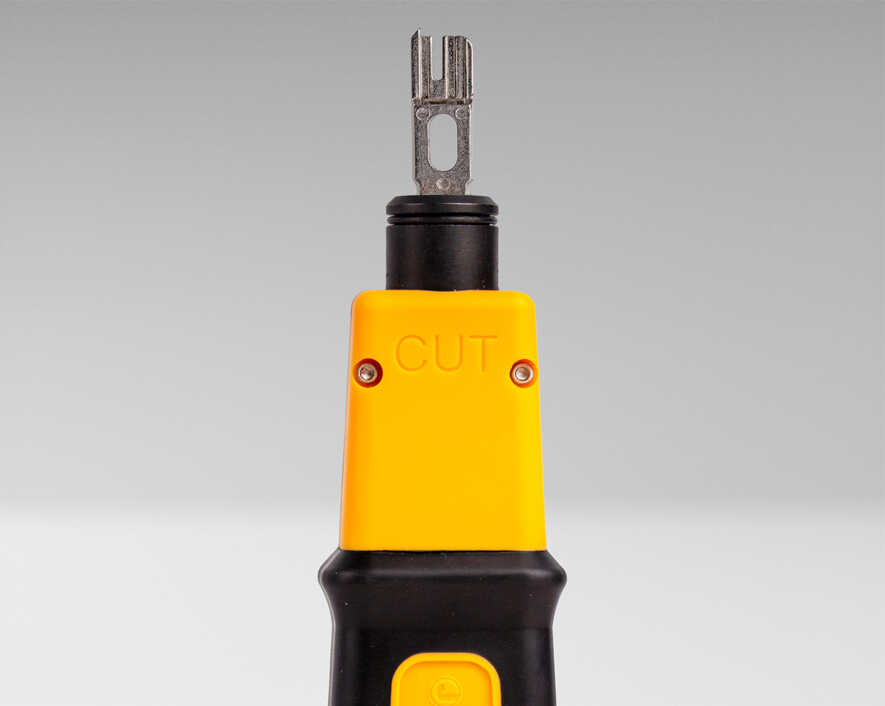

  • Color coded body is half yellow (cut side) and half blue for ease of use
  • Enlarged blade storage compartment for easy storage
  • Tested up to 100,000 cycles at high impact setting, ensuring long life during use
  • Compatible with all our EPB-series blades and other similar brands (sold separately)
  • Lifetime Warranty
Specifications
Block TypeKrone
ColorYellow & Blue
Dimensions7.09" x 1.52" x 1.06" (18 cm x 3.85 cm x 2.7 cm)
Weight0.21 lb (95.34 g)
UPC #810053350966
