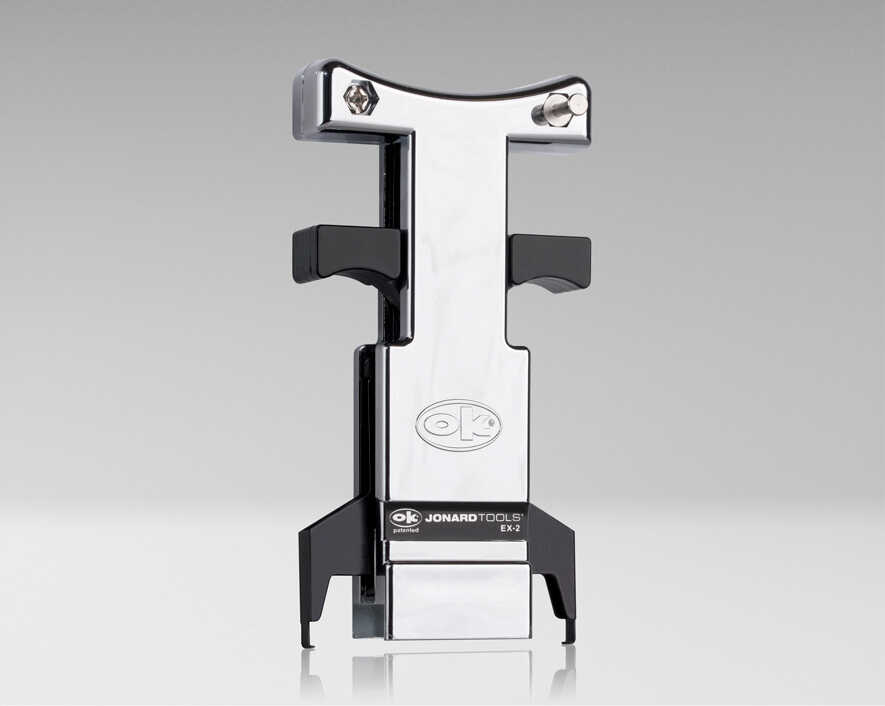

Jonard - EX-2 - DIP/IC Extractor (24-40 Pins)
Part number:
EX-2
Price:

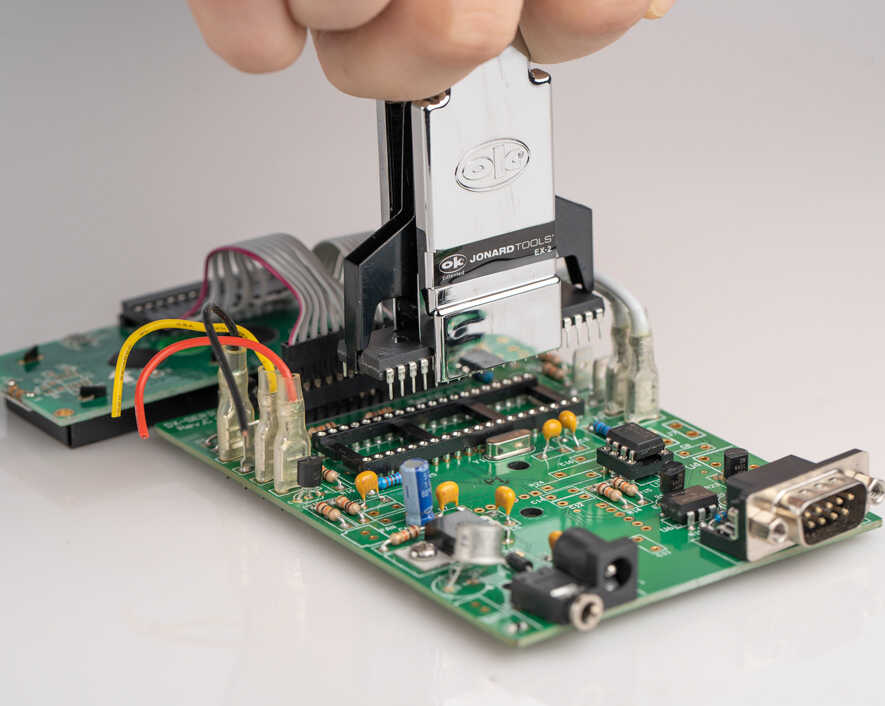

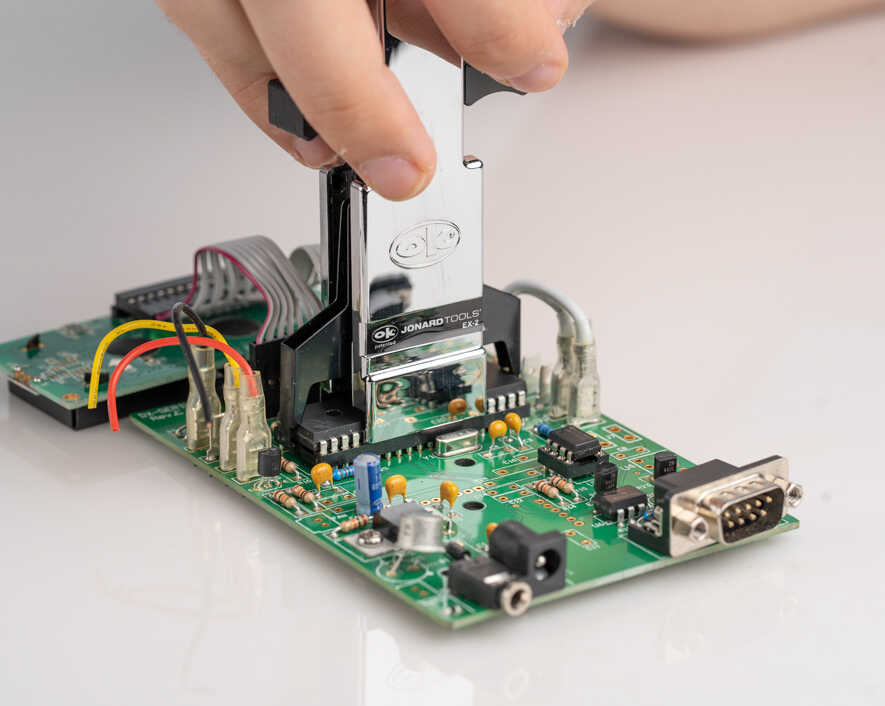

Designed to extract internal components from DIP Sockets as well as LSI, MSI, and SSI Devices, this DIP/IC Extractor is perfect for removing chips with 24-40 pins. This DIP/IC Extractor features the following:



Features:

  • Built-in grounding lug helps protect from short circuiting or static discharge
  • Specially designed hooks firmly grasp chips without damaging them.
Specifications
FunctionExtraction
Chip Package TypeDIP
Pin Count24-40
Pitch0.60" (15.24 mm)
Length4(10.16cm)
Weight1.8 lb (817.2 g)
UPC #811490010673
