Jonard - FC-600 - One Step Fiber Optic Cleaver with Auto-Rotating Blade
Part number:
FC-600
Price:

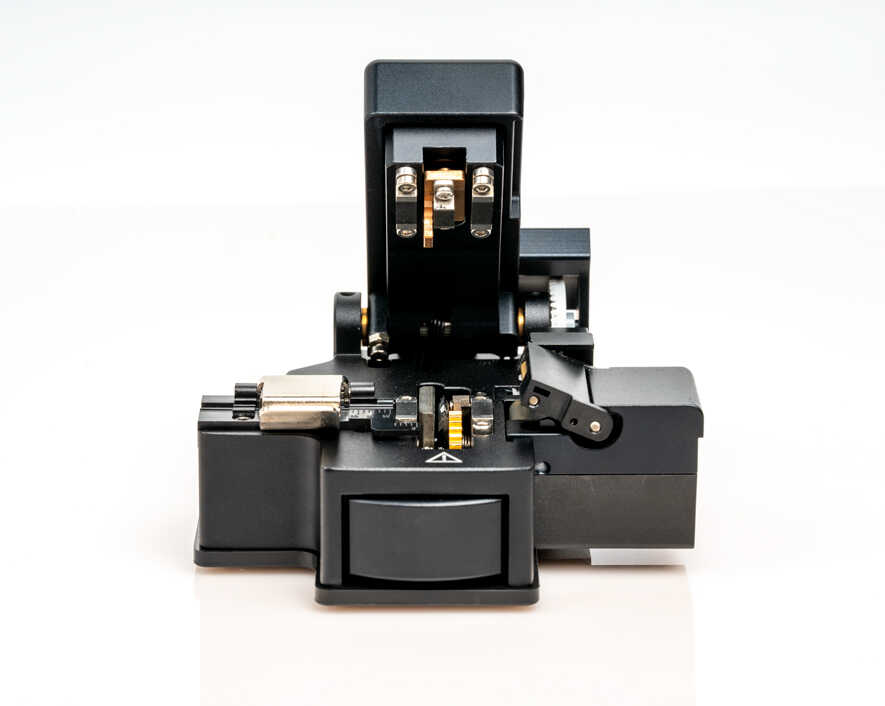

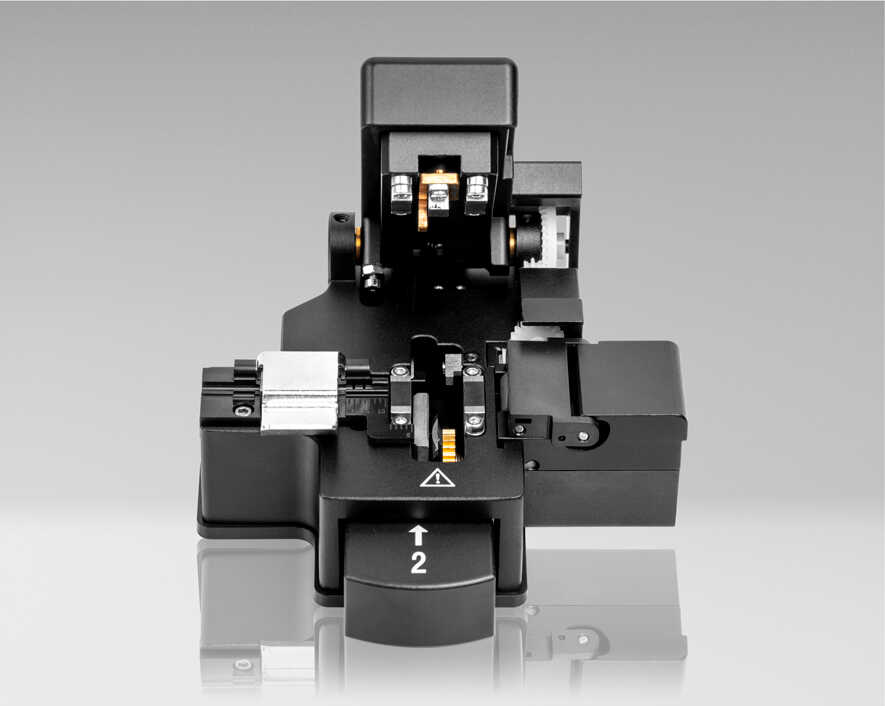

The Jonard Tools FC-600 precision fiber cleaver is designed to provide a precise, one step cleave to prepare fiber to be fusion spliced. This fiber cleaver features the following:



Features:

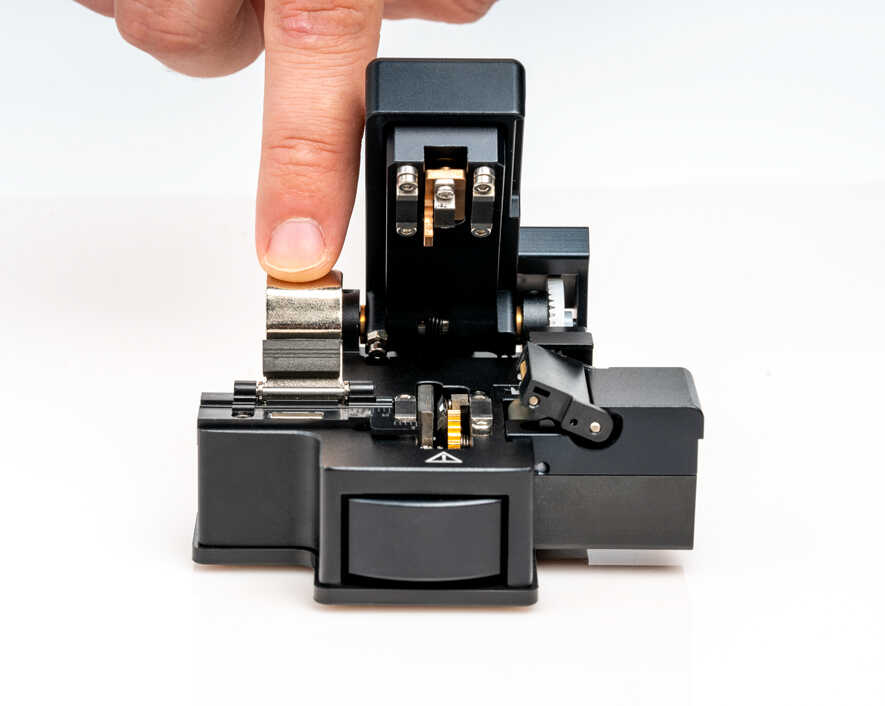

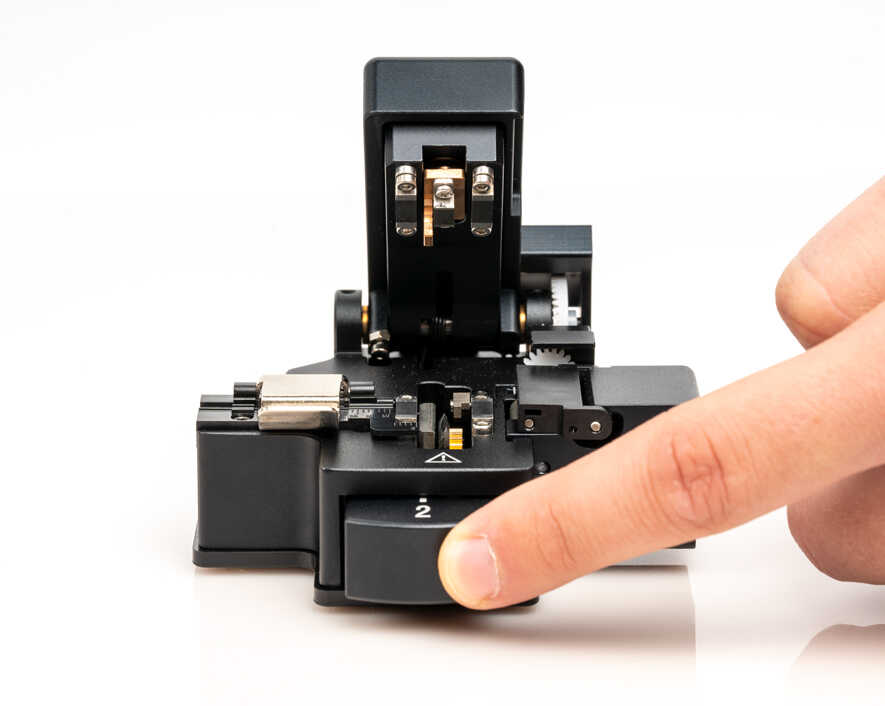

  • One step design automatically cleaves the fiber, rotates the blade, and collects fiber scraps
  • Provides a cleave with a cutting angle of less than 0.5° for optimal fiber preparation for fusion splicing
  • Blade automatically rotates after each cleave, and can be used for 52,000 cleaves before needing to be replaced
  • Lightweight and rugged design for long term durability
  • Holds 250 µm and 900 µm fiber and comes with built in fiber trash can
  • Scaled holder for accurate cleave lengths from 5 to 20 mm (0.20" to 0.79")
  • Ideal for fiber technicians, fiber splicers, and anyone that needs to cleave a fiber optic cable prior to performing a fusion splice
Specifications
Cleave Length5 mm-20 mm (Single Fiber 0.25 mm Coating), 12 mm-20 mm (Single Fiber 0.9 mm Coating)
Cleave AngleLess than 0.5°
Blade Life52,000 cleaves
Dimensions4 in x 4 in x 2.13 in (10.16 cm x 10.16 cm x 5.4 cm)
Weight0.98 lb (445.828 g)
UPC #810053351413
Name
Description
Size
Downloads
File
Datasheet
0.6mb
