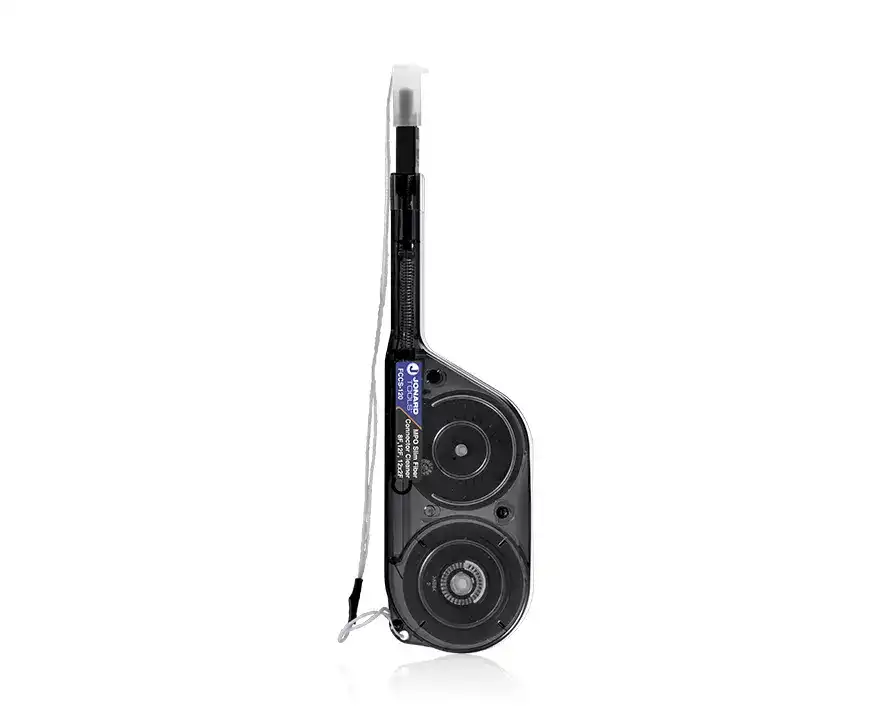

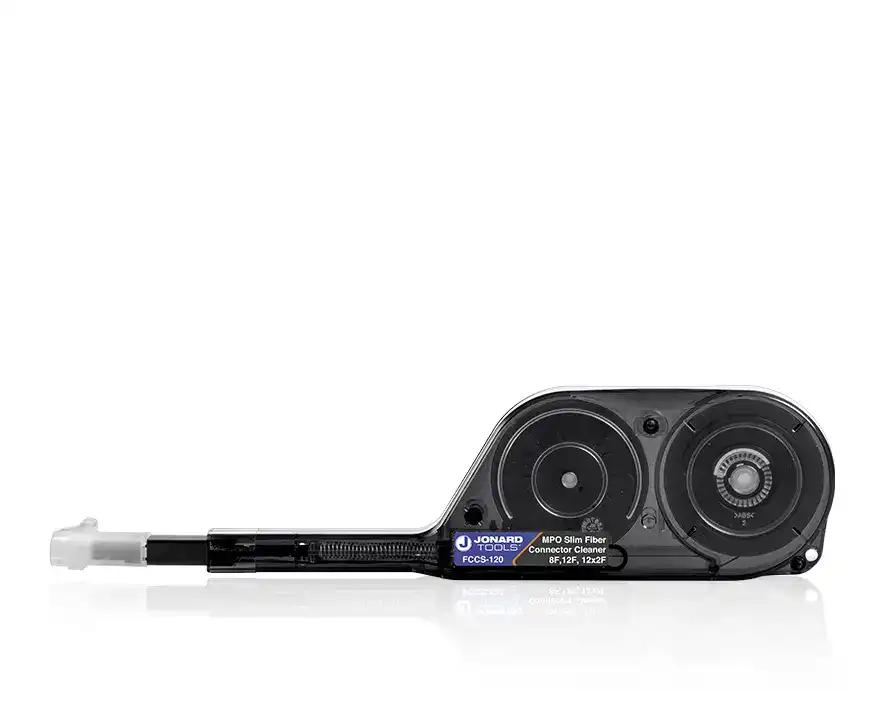

Jonard Tools - FCCS-120 - Slim Fiber Connector Cleaner, MPO 12 Core
• Compatible with MPO/MTP 8, 12, 24 (12x2) connectors, both UPC & APC polish types, and male (pinned) & female
(unpinned) pin configurations.
• One-push operation provides quick, consistent cleaning for more than 600 cleaning cycles.

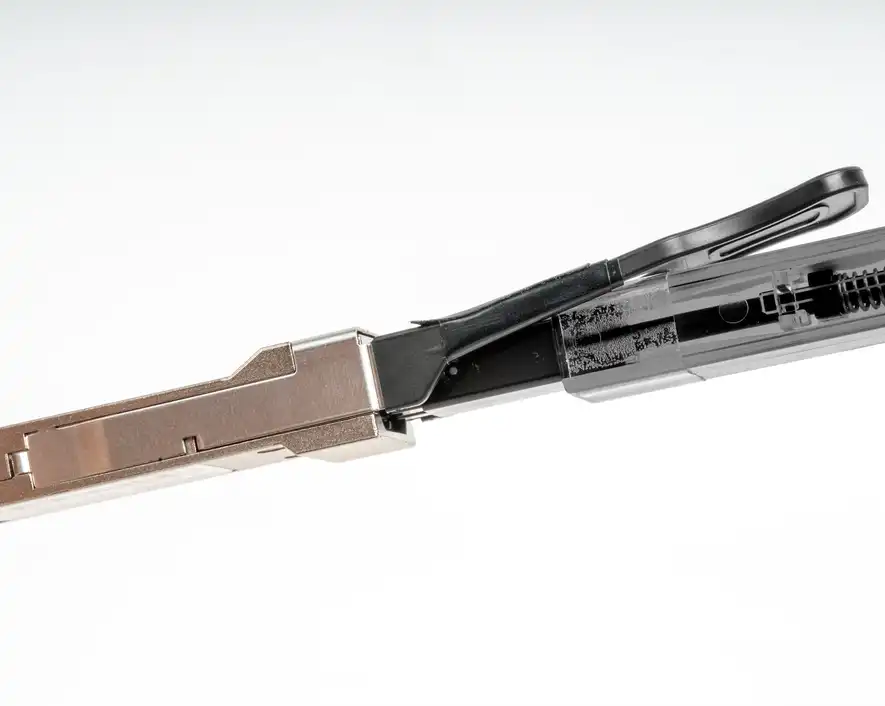

• Slim profile ideal for recessed MPO adapters, cassette modules, and high-speed backbone links.
• Flip-open adapter cap with tether for secure switching between plug and port cleaning.
• Transparent housing to monitor remaining tape; color-coded label for connector identification.
• ESD-safe microfiber cloth and housing for use in hyperscale data centers, meets IEC 61300-3-35.
• Limited Warranty
| Fiber Type / Application | Multi-Fiber, Simplex |
| Connector Type | MPO, MTP Connectors: 8, 12, 24 (12x2) |
| Polish Type | PC, UPC, APC |
| Pin Configuration | Male (with pins) or Female (no pins) |
| Number of Cleans | 600+ |
| Cleaning Motion | 180°, Push Forward |
| Guide Type | Standard |
| Cleaning Depth | 3.525" (89.54 mm) |
| Standards | IEC 61300-3-35 |
| Cleaning Fabric | Static-Free Micro Fiber |
| Dimensions | 8 in x 2 in x 0 in (20.32 cm x 5.08 cm x 0 cm) |
| Weight | 0.1 lb (45.4 g) |
| UPC # | 810132439254 |
Designed to deliver exceptional cleaning performance, the FCCS-120 Slim Fiber Connector Cleaner uses ultra-fine microfibre to remove dust, oil and debris from MPO and MTP 8, 12 and 24 fibre connectors. Its slim design allows it to access recessed adapters, cassette modules and high-density fibre environments in hyperscale data centres, enterprise networks and backbone infrastructure, where performance is critical.
