Jonard - FLS-55 - Fiber Optic Light Source Multimode & Singlemode with FC/LC/SC (PC/UPC) Adapters
Part number:
FLS-55
Price:

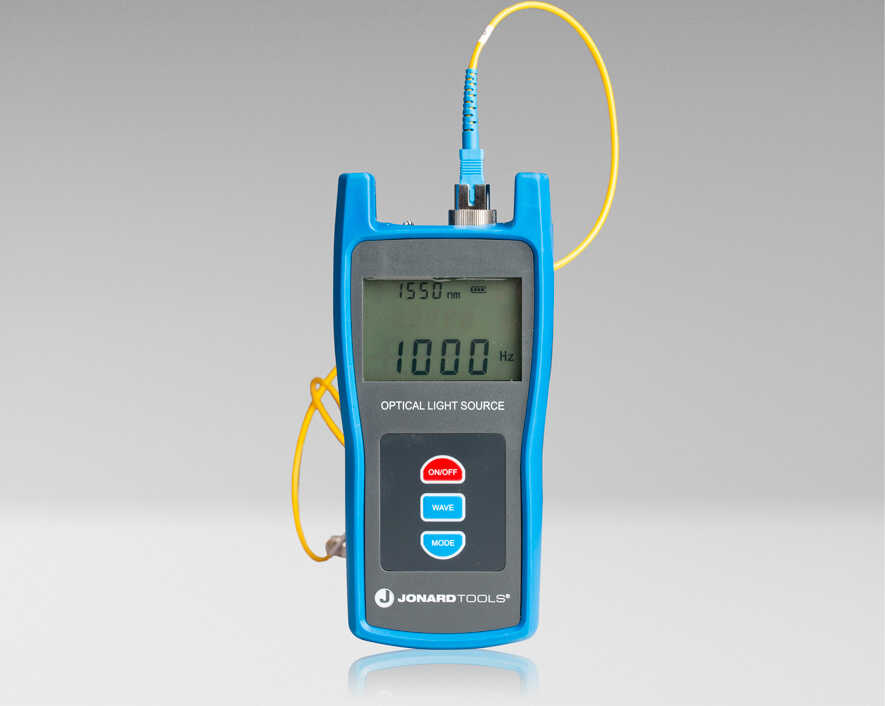

Designed to provide 850/1300 nm or 1310/1550 nm wavelengths, this optical light source is the perfect tool for providing a stable light source for multimode or single mode fiber measurements. This optical light source features the following:
Features:
- Includes FC, SC, and LC adapters to directly connect to UPC/PC FC, SC, and LC fiber connectors
- Highly stable output power and wavelengths
- Has four different modulation outputs (CW, 270 Hz, 1 kHz, 2 kHz) at 850/1300 nm (multimode) and 1310/1550 nm (singlemode) wavelengths

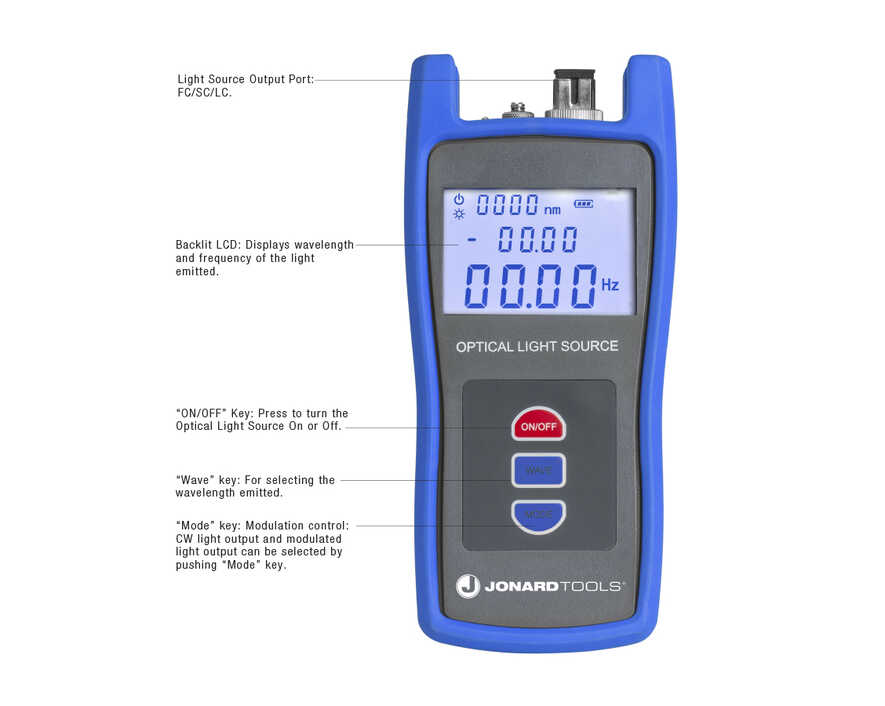

- Flush button design makes it easy to use and prevents dust from entering the unit
- Shatter-resistant sleeve protects the light source from falls or other damage
- Backlit LCD screen provides a clear display, ideal for dark places

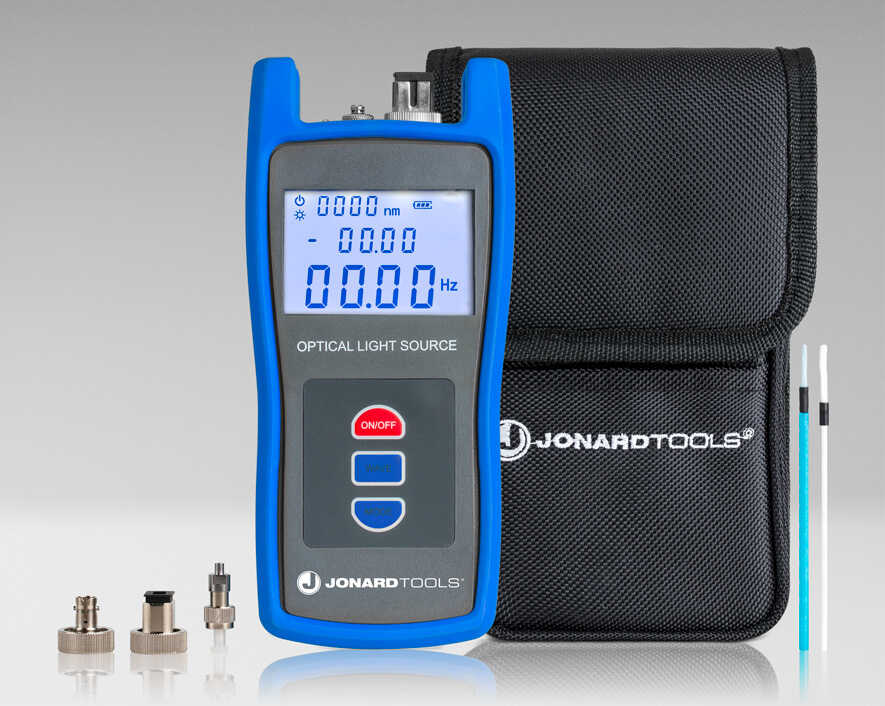

Includes:
- Fiber Optic Light Source (MM/SM)
- FC Adapter
- LC Adapter
- SC Adapter
- (2) Cleaning Swabs
- (3) AA Batteries (required for operation)
- Storage Pouch
| SPECIFICATIONS | FPM-55 |
| CONNECTOR TYPES | FC, SC (APC/PC/UPC) & LC (PC/UPC) |
| MEASUREMENT RANGE | -50 dBm to +26 dBm |
| DATA STORAGE | Yes |
CALIBRATED WAVELENGTHS (nm) | 850, 980, 1300, 1310, 1490, 1550, 1625, 1650 |
| DETECTOR TYPE | InGaAs |
| SINGLE MODE RANGE | 980, 1310, 1490, 1550, 1625, 1650 nm, ≤ ± 0.25 dB |
| MULTI MODE RANGE | 850, 1300 nm, ≤ ± 0.8 dB |
| RESOLUTION | 0.01 dB |
| OPERATING TIME | ≥130 hours |
| BATTERY TYPE | (3) AA batteries |
| DIMENSIONS | 7” x 3.25” x 1.5” (17.78 cm x 8.26 cm 6.89” x 3.54” x 1.75” (175 mm x 90 x 2.54 cm) mm x 44.5 mm) |
| WEIGHT | 1.50 lb (680 g) 0.66 lb (300 g) |
