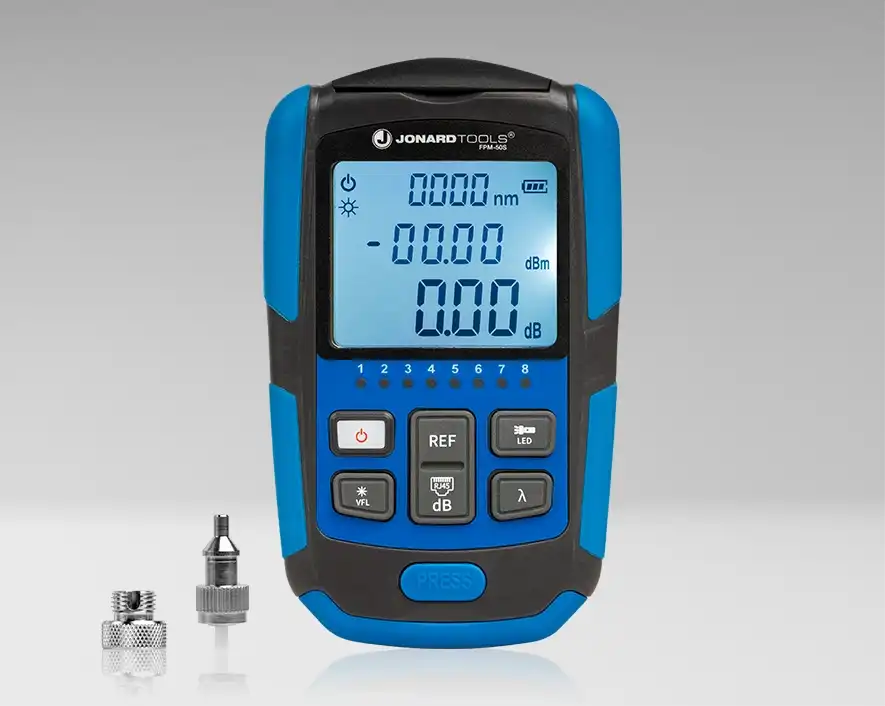

Jonard - FPM-50S - Mini Optical Power Meter (-50 to +26dBm)
Part number:
Price:
- • Measures power using a wide variety of wavelengths from 800-1650 nm, with a mere 0.01 dB resolution
- • Measures 10 preset calibrated wavelengths with high precision to determine absolute or relative power
- • LED screen is backlit for viewing in low light locations and a 10 minute auto-off helps preserve battery life
- • Built-in 2 mW visual fault locator (VFL) identifies faults in fiber cable in a pinch

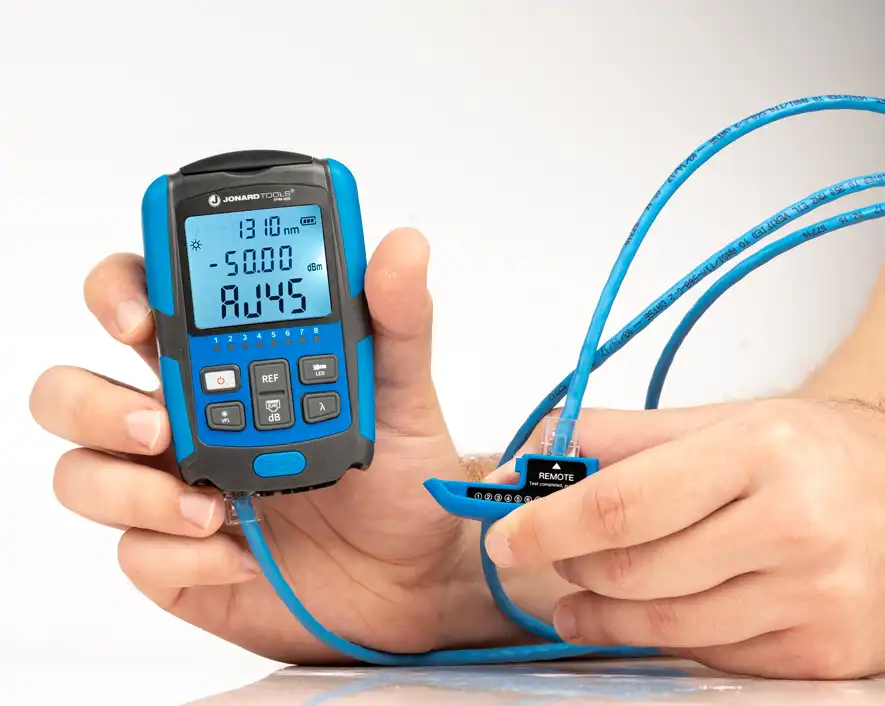

- • Tests RJ45 connectorized network cables using built-in remote
- • Comes with FC and LC adapters so that fiber connectors can be directly connected to the tool
- • The FC/SC adapters are for APC/PC/UPC connectors
- • The LC adapter is for PC/UPC connectors only
This product includes:
- • Mini Optical Power Meter
- • Instructional Manual
- • (3) AAA Batteries (required for operation)
- • FC Adapter
- • LC Adapter
| Connector Types | FC (APC/PC/UPC) & LC (PC/UPC) |
| Calibrated Wavelengths (nm) | 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650 nm, ≤ ± 0.2 dB |
| Detector Type | InGaAs |
| Measurement Range | -50 dBm to +26 dBm |
| Single Mode Range | 980, 1270, 1310, 1490, 1550, 1577, 1625, 1650 nm |
| Multi Mode Range | 850, 1300 nm |
| XGSPON Range | 1270, 1577 nm |
| Resolution | 0.01 dB |
| Operating Time | ≥ 120 hours |
| Battery Type | (2) AAA batteries |
| Dimensions | 4 in x 2 in x 1 in (10.16 cm x 5.08 cm x 2.54 cm) |
| Weight | 0.3 lb (136.2 g) |
