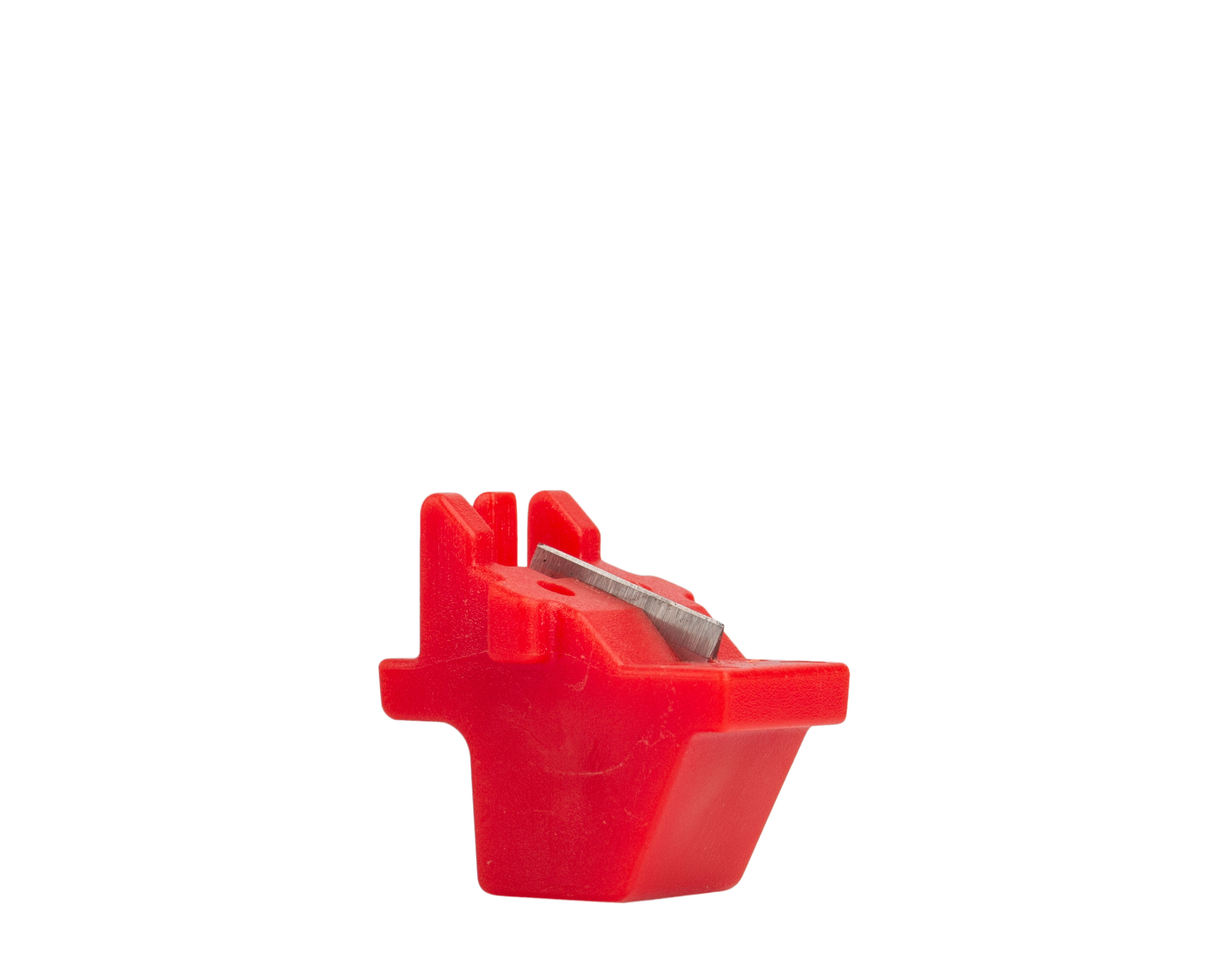

Jonard - FS-1080RB - Replacement Blade for FS-1080 Thin-walled Microduct Scoring Tool
Part number:
FS-1080RB
Price:

This product is the replacement blade cartridge for the FS-1080 Microduct Scoring Tool. This replacement blade cartridge features the following:



Features:

  • Allows you to score and ring 10/8, 12/10, and 14/12 fiber optic microducts without any adjustments to the tool
  • Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.0 mm-1.3 mm
  • Compatible with both our FS-1080 and FS-1416 Microduct Scoring Tools
  • Included pin allows you to keep the tool open to replace the blade cartridge
SPECIFICATIONSFS-1080RB
MICRODUCT WALL THICKNESS

1.0 mm-1.3 mm

(0.039”-0.051”)

MICRODUCT DIAMETER RANGE5.0-16.0 mm (0.20”-0.63”)
BLADE DEPTH1 mm (0.039”)
LENGTH1” (4.2164 cm)
WEIGHT0.01 lb (5.448 g)
