Jonard - FS-1416RB - Replacement Blade for FS-1416 Thick-walled Microduct Scoring Tool
Part number:
FS-1416RB
Price:

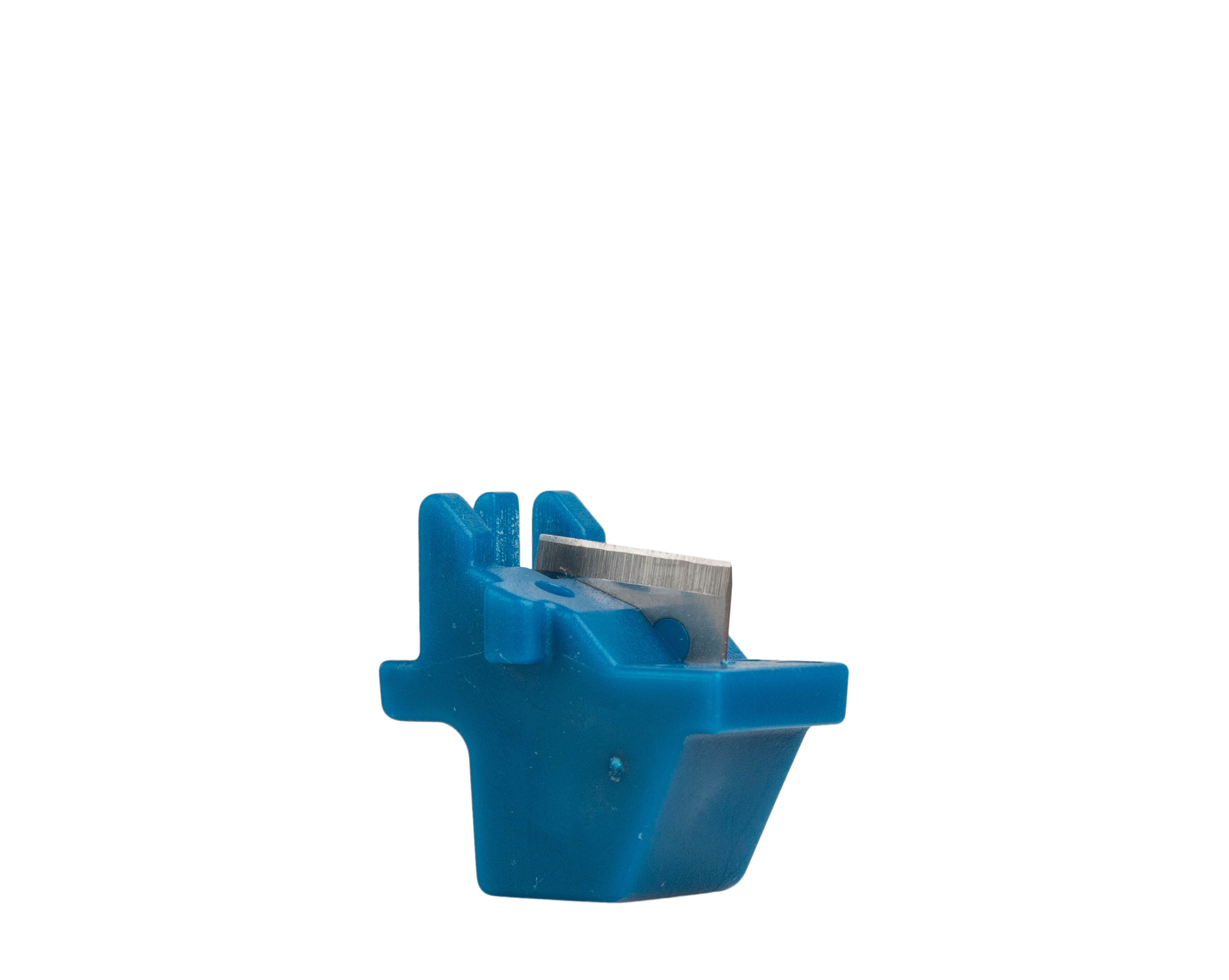

This product is the replacement blade cartridge for the FS-1416 Microduct Scoring Tool. This replacement blade cartridge features the following:



Features:

  • Allows you to score and ring microducts 14/10 and 16/10 fiber optic microducts without any adjustments to the tool
  • Perfect for microducts 5 mm-16 mm (0.20"-0.63") in diameter with a wall thickness of 1.5 mm-3.0 mm (0.059"-0.118")
  • Compatible with both our FS-1080 and FS-1416 Microduct Scoring Tools
  • Included pin allows you to keep the tool open to replace the blade cartridge
SPECIFICATIONSFS-1416RB
MICRODUCT WALL THICKNESS

1.5 mm-3.0 mm

(0.059”-0.118”)

MICRODUCT DIAMETER RANGE5.0-16.0 mm (0.20”-0.63”)
BLADE DEPTH3.08 mm (0.12”)
LENGTH1” (4.2037 cm)
WEIGHT0.01 lb (5.448 g)
