Jonard - FS-2025 - Precision Microduct Scoring Tool 5–16 mm
Part number:
Price:

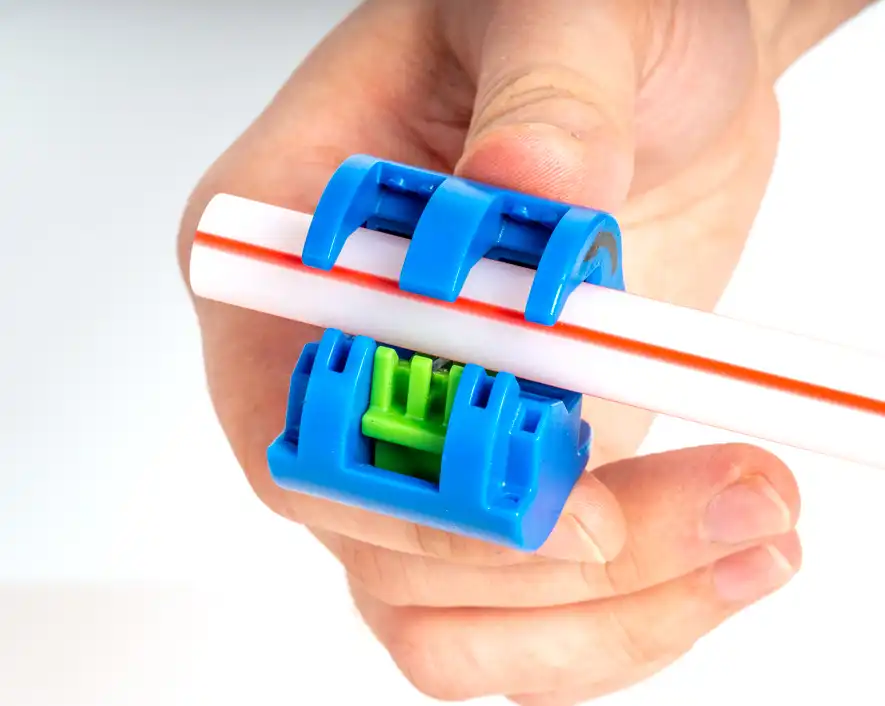

• Unique design allows you to score and ring fiber optic microducts without any adjustments to the tool
• Wide jaws curls around the microducts, holding them in place while scoring

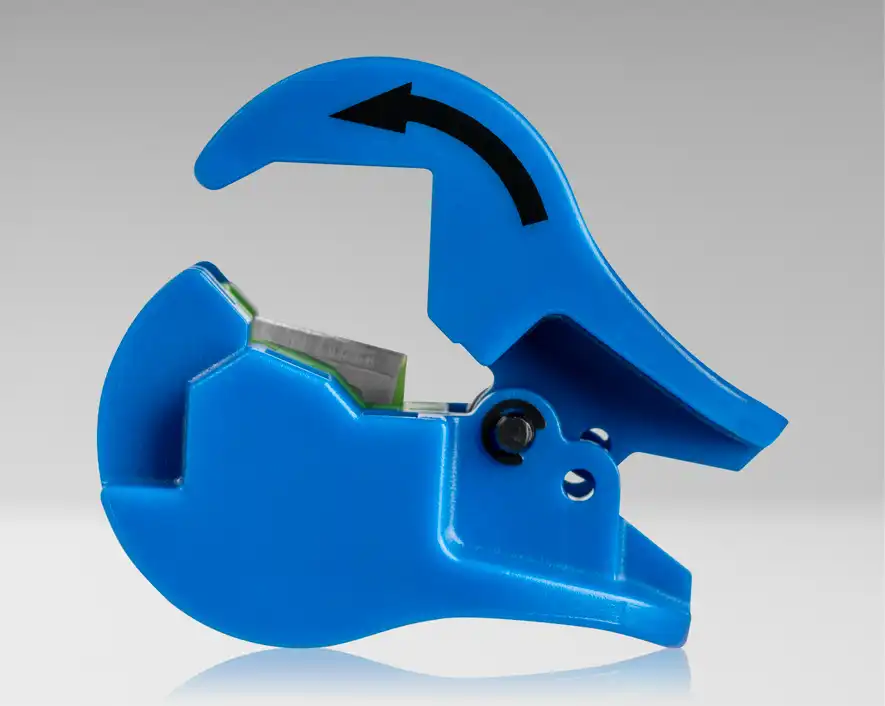

• Spring-loaded butterfly clip makes it easy to open and position it perfectly on microducts
• Interchangeable replacement blades available: FS-1080RB, FS-1416RB, FS-2025RB
• FS-2025 includes the FS-2025RB blade for 14/10 and 16/10 cables
| Microduct Wall Thickness | 2.0-2.5 mm (0.079"-0.098") |
| Microduct Diameter Range | 7.0-16.0 mm (0.20"-0.63") |
| Blade Depth | 2.0 mm (0.079") |
| Dimensions | 1.79 in x 1.38 in x 1.29 in (4.53 cm x 3.49 cm x 3.28 cm) |
| Weight | 0.07 lb (29.964 g) |
Name
Description
Size
Downloads
File
FS - Microduct Scoring Tools & Replacement Blades - Data Sheet.pdf
0.6mb
