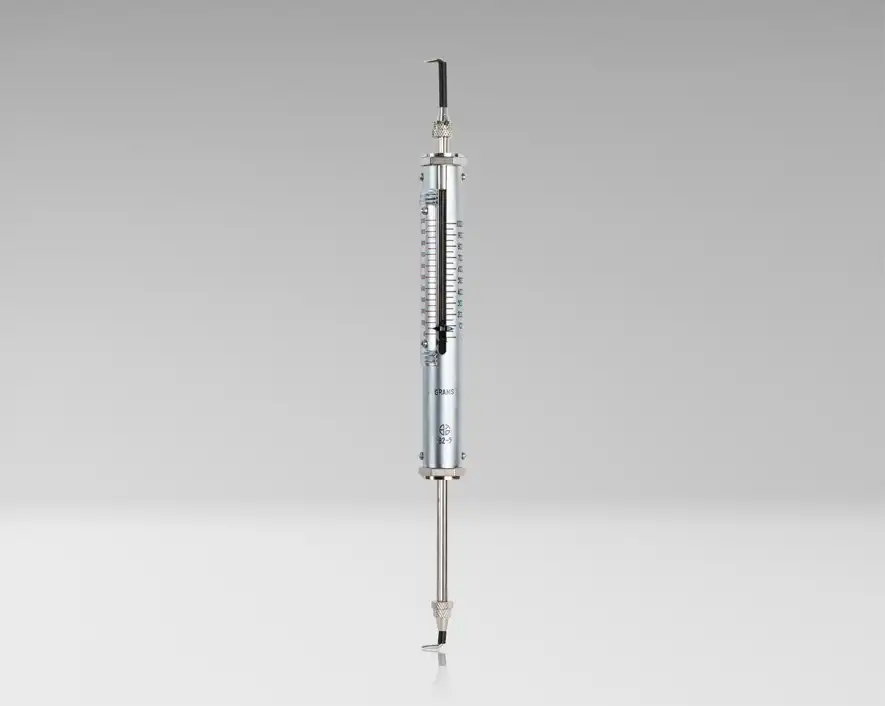

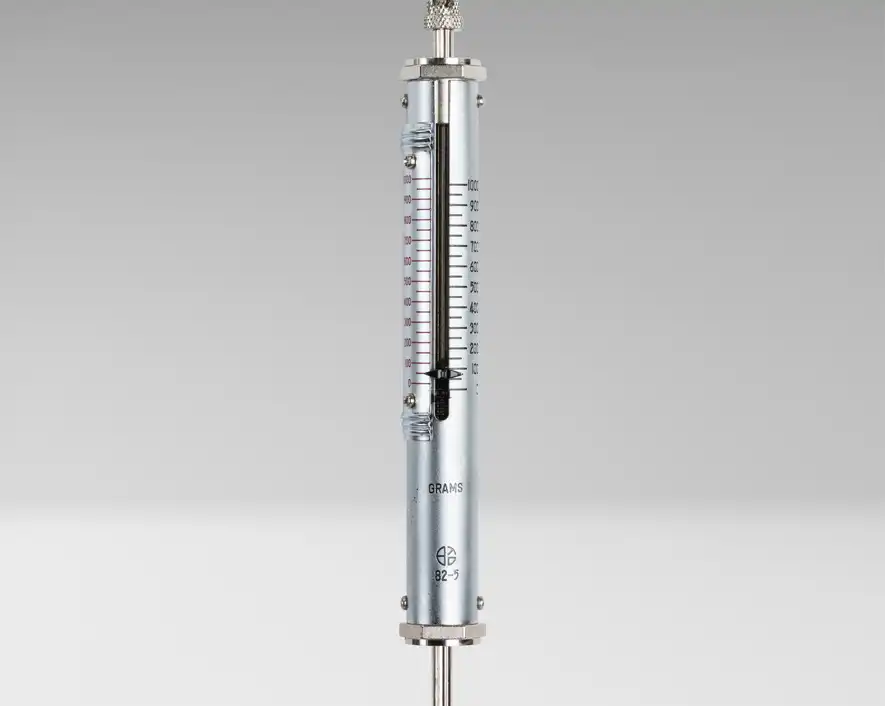

Jonard - GPP-1 - Metric Push-Pull Force Gauge
Part number:
Price:
The GPP-1 Push-Pull Force Gauge is a compact, precision, tubular-type mechanical force gauge with a slender design that allows it to be used in confined spaces for measuring push-pull forces. Graduated in grams, this Push-Pull Force Gauge measures up to 1000 g (35.27 oz). The precision springs are individually calibrated and checked with dead weights. Full-scale accuracy and factory calibration are held to ±1 graduation. These force gauges can also be used to test belt tension in ATMs.
- • These force gauges can also be used to test belt tension in ATMs
| Gauge Face | Cylindrical |
| Tip Widths | 0.650" (1.65 mm) |
| Tip Thicknesses | 0.0472" (1.20 mm) |
| Accuracy | +- 1 graduation |
| Graduation | 50 g |
| Range | 0-1000 g |
| Max Capacity | 1000 g (35.27 oz) |
| Material | Brass with Satin Chrome |
| Diameter | 5/8" (15.875 mm) |
| Dimensions | 9.25 in x 0.69 in x 0.69 in (23.5 cm x 1.75 cm x 1.75 cm) |
| Weight | 0.3 lb (136.2 g) |
Name
Description
Size
Downloads
File
Data Sheet - Push-Pull Force Gauges.pdf
0.2mb
