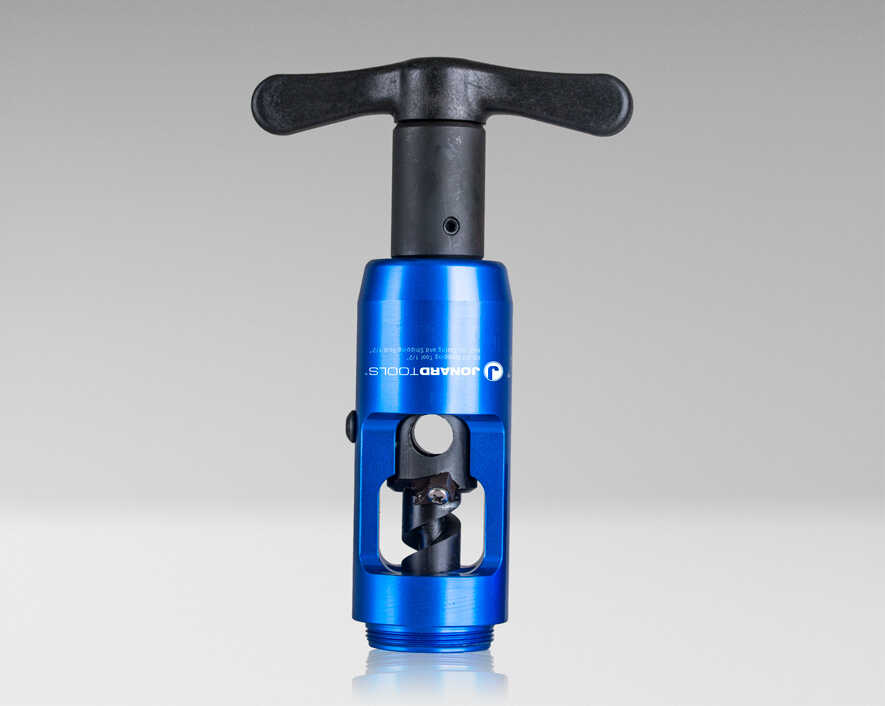

Jonard - HC-50 - Hardline Coring Tool .500"
Part number:
HC-50
Price:

The HC-50 hardline coring tool is designed to core 1/2" diameter T10500 Times Fiber T10 COAX cable, Commscope P3, and other similar .500" cables. This coring tool features the following:



Features:

  • Heavy duty aluminum body with coring bits and blades made of heat treated high carbon steel for long life and durability
  • T handle is a ratcheting handle for increased comfort and faster coring
  • T handle can be removed, allowing the user to attach a drill to make coring even easier
  • Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
  • Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
  • Bevels the outer conductor and chamfers the center conductor
  • Adjustable to expose the center conductor to preset lengths of 13/18", 7/8", 15/18", or 1”
  • Includes hex keys for replacing stripping blades and removing the T handle
Specifications
MaterialAluminum
Cable Size1/2" (.500" or 12.7 mm)
Dimensions6.5 in x 4.32 in x 1.85 in (16.51 cm x 10.97 cm x 4.7 cm)
Weight1.26 lb (572.04 g)
UPC #811490018884
