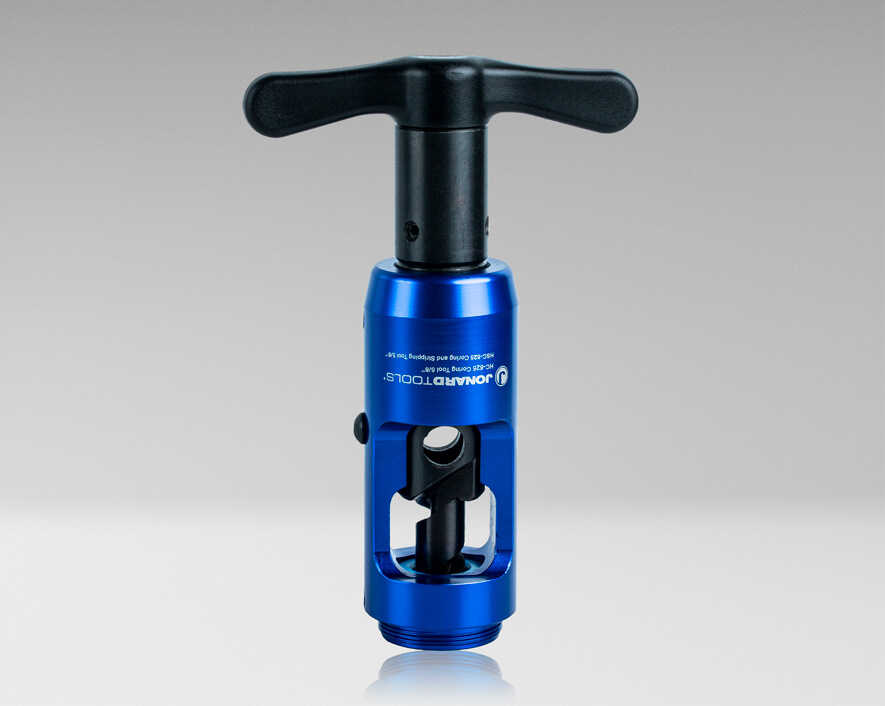

Jonard - HC-625 - Hardline Coring Tool .625"
Part number:
HC-625
Price:

The HC-625 hardline coring tool is designed to core Times Fiber T10625, Commscope P3, and other similar .625" Hardline Coax cables. This coring tool features the following:



Features:

  • Heavy duty aluminum body with coring bits and blades made of heat treated high carbon steel for long life and durability
  • Center conductor length is adjustable from 1/2" to 1 1/4"
  • T handle is a ratcheting handle for increased comfort and faster coring
  • T handle can be removed, allowing the user to attach a drill to make coring even easier
  • Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
  • Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
  • Bevels the outer conductor, chamfers the center conductor, and opens to a center conductor length of 1”
  • Includes hex keys for replacing stripping blades and removing the T handle
Specifications
MaterialAluminum
Cable Size5/8" (.625" or 15.9 mm)
Product MaterialAluminum
Dimensions6.5 in x 4.25 in x 2 in (16.51 cm x 10.8 cm x 5.08 cm)
Weight1.28 lb (581.12 g)
UPC #811490019706
Name
Description
Size
Downloads
File
Datasheet
0.6mb
