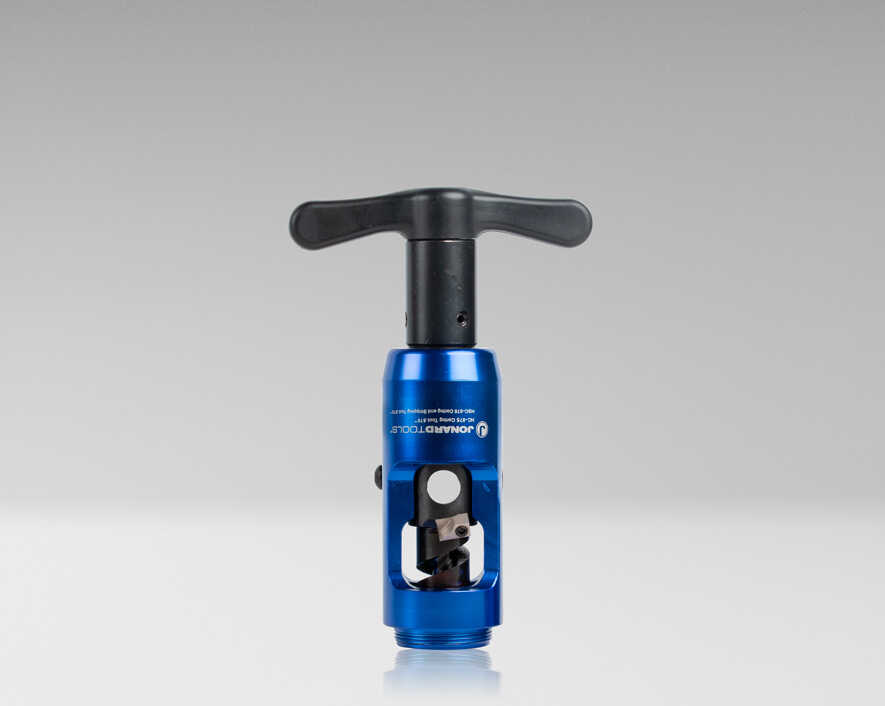

Jonard - HC-875 - Hardline Coring Tool .875"
Part number:
HC-875
Price:

The HC-875 hardline coring tool is designed to core Times Fiber T10625, Commscope P3, and other similar .875" Hardline Coax cables. This coring tool features the following:



Features:

  • Heavy duty aluminum body with coring bits and blades made of heat treated high carbon steel for long life and durability
  • Center conductor length is adjustable from 1/2" to 1 1/4"
  • T handle is a ratcheting handle for increased comfort and faster coring
  • T handle can be removed, allowing the user to attach a drill to make coring even easier
  • Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
  • Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings

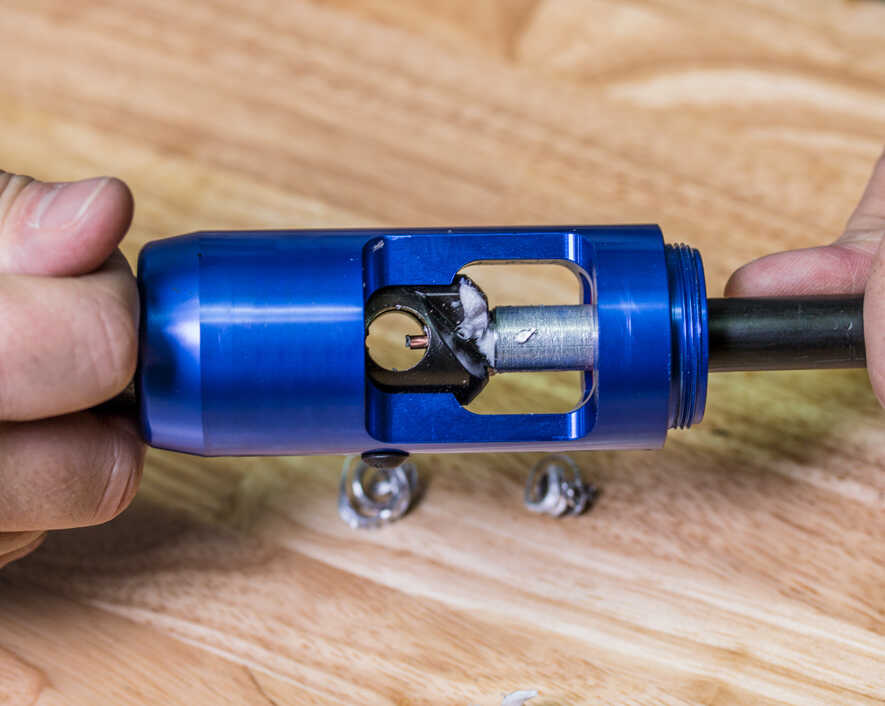

  • Bevels the outer conductor, chamfers the center conductor, and opens to a center conductor length of 1”
  • Includes hex keys for replacing stripping blades and removing the T handle
Specifications
MaterialAluminum
Cable Size7/8" (.875" or 22.23 mm)
Dimensions4.33 in x 1.7 in x 6.5 in (11 cm x 4.32 cm x 16.51 cm)
Weight1.32 lb (599.28 g)
UPC #810053350621
