Jonard - HSC-75 - Hardline Coring and Stripping Tool for .750"
Part number:
HSC-75
Price:

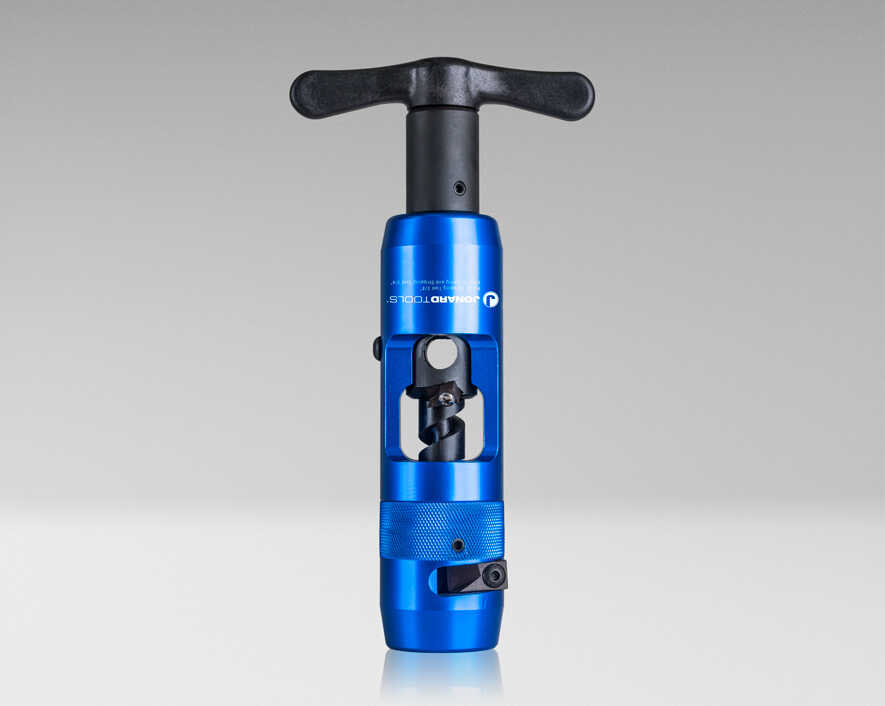

The HSC-75 hardline coring and stripping tool is designed to core and strip 750 Series COAX Cables (3/4”), such as the Times Fiber T10 and Commscope P3 cables. This coring and stripping tool features the following:



Features:

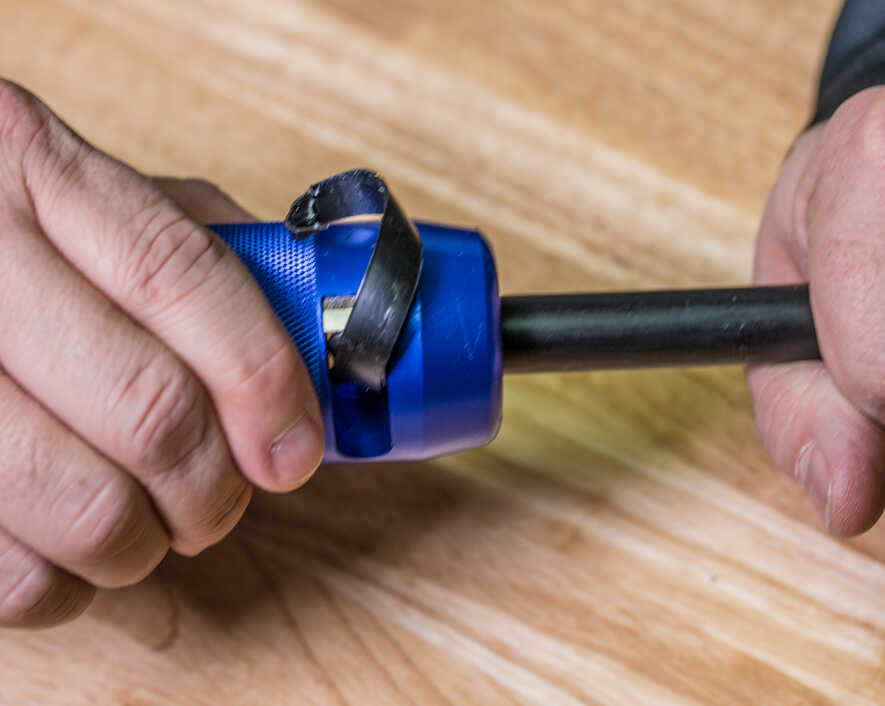

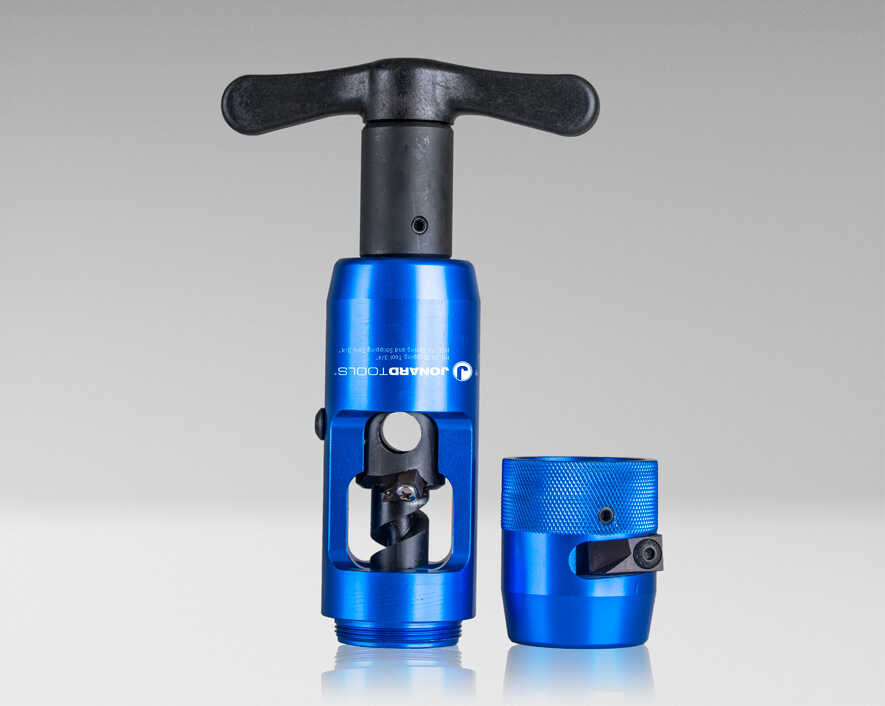

  • Performs both coring and stripping all in one tool, stripper can be easily removed to help deal with flooded cables
  • Heavy duty aluminum body with stripping and coring blades made of high carbon steel and heat treated for long life
  • T handle is a ratcheting handle for increased comfort and faster coring and the tool can perform both coring and stripping simultaneously, T handle can also be removed allowing the user to attach a drill to make coring even easier
  • Replacement blades and coring bits can be purchased separately (no need to ever replace the entire tool, see below for replacement part numbers)
  • Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
  • The tool bevels the outer conductor, chamfers the center conductor, and opens to a center conductor length of 1”
  • Total core and strip length is 3.50”

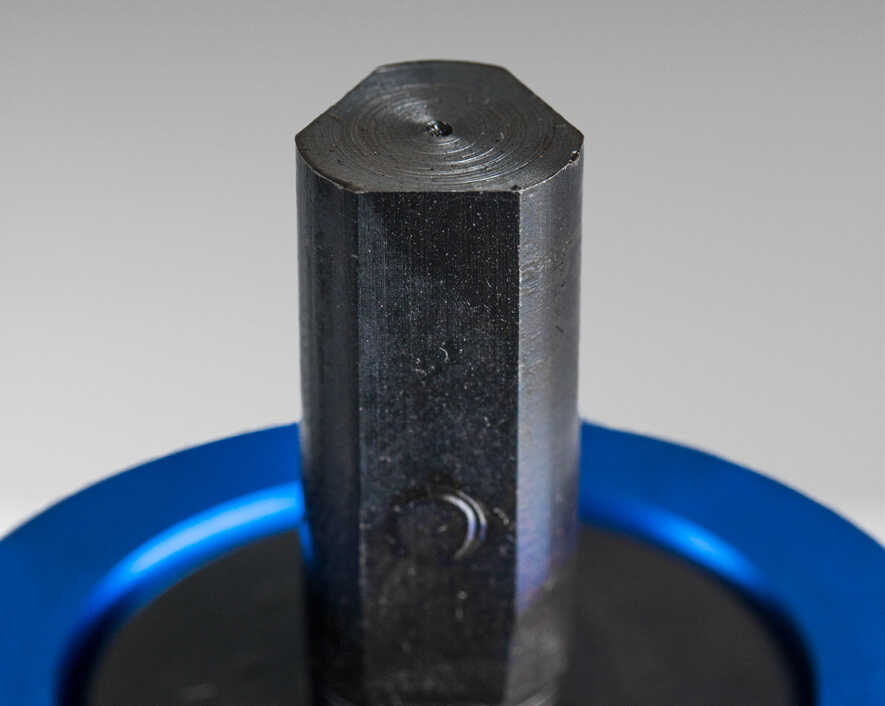

  • The coring bit, coring blade, and jacket stripping blade are made from hardened steel for long life.
  • Includes hex keys for replacing stripping blades and removing the T handle and an instruction manual
  • Lifetime Warranty
Specifications
Cable Size3/4" (.750" or 19.05 mm)
MaterialAluminum
Product MaterialAluminum
Dimensions8.25 in x 4.34 in x 1.72 in (20.96 cm x 11.01 cm x 4.37 cm)
Weight1.56 lb (710.056 g)
UPC #811490018877
