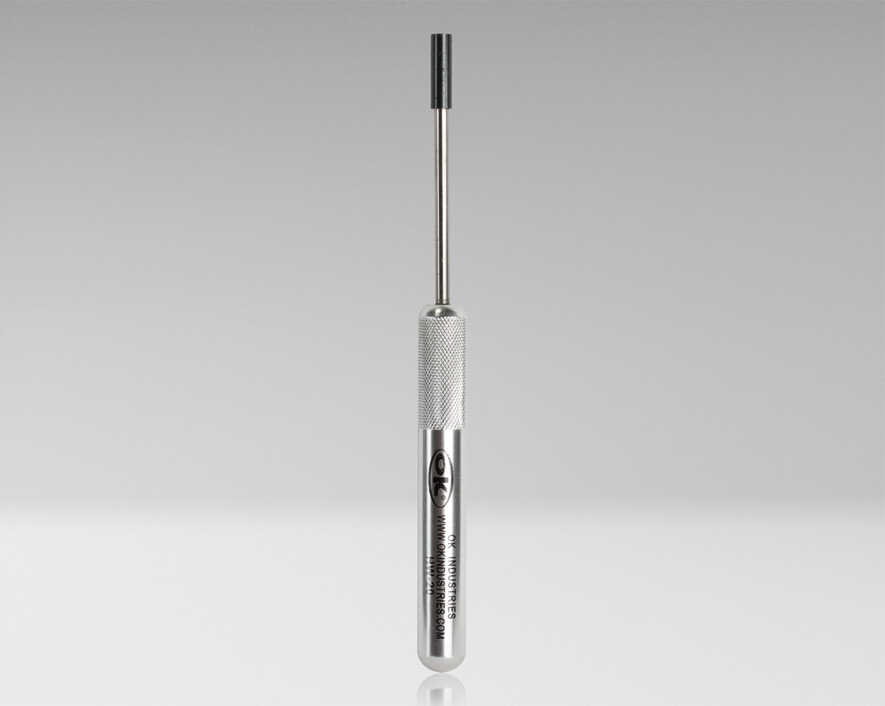

Jonard - HW-20 - Hand Wrap Tool, 20 Awg
Part number:
HW-20
Price:
Designed to produce perfect wire wrap connections every time, this hand wrap tool is perfect for wrapping 20 AWG (0.8 mm diameter) wire around binding posts. This hand wrap tool also features the following:
Features:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
| Wrap Type | Regular |
| Wire Gauge | 20 AWG (0.80 mm) |
| Terminal Hole Diameter | 0.075" (1.90 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Outside Diameter | 0.218" (6.35 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 6(16.51cm) |
| Weight | 0.09 lb (39.498 g) |
