Jonard - HW-UW-20 - Wrap-Unwrap Tool, 20 Awg
Part number:
HW-UW-20
Price:

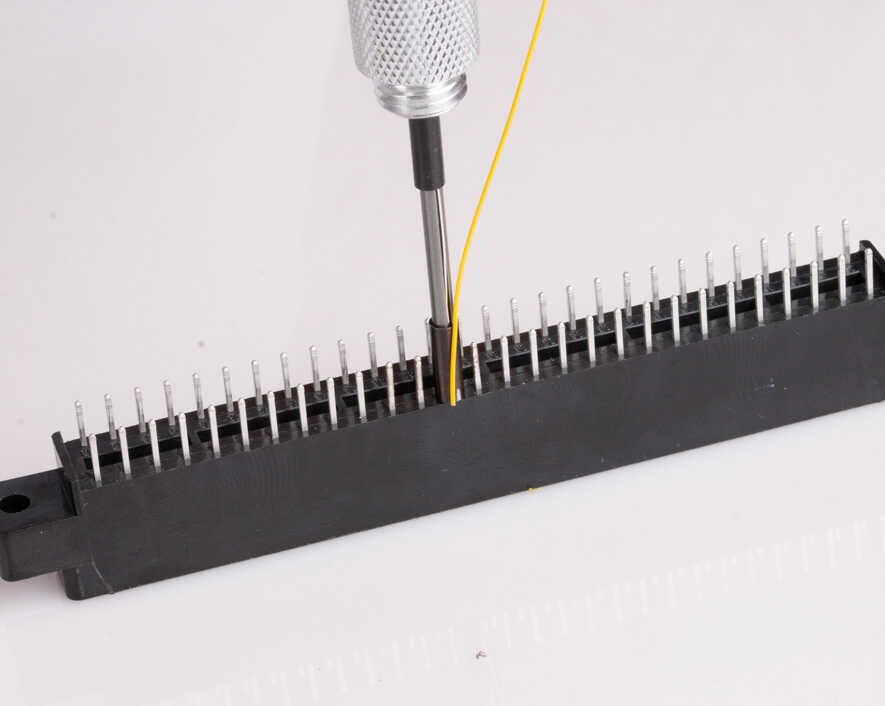

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 20 AWG (0.8 mm diameter) wire. This hand wrap tool also features the following:
Features:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from wrapping to unwrapping quickly by changing the cap from one end to the other
| Wrap Type | Regular |
| Wrap Wire Gauge | 20 AWG (0.8 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 1" (25.40 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Aluminum |
| Length | 7(17.78cm) |
| Weight | 0.08 lb (35.866 g) |
