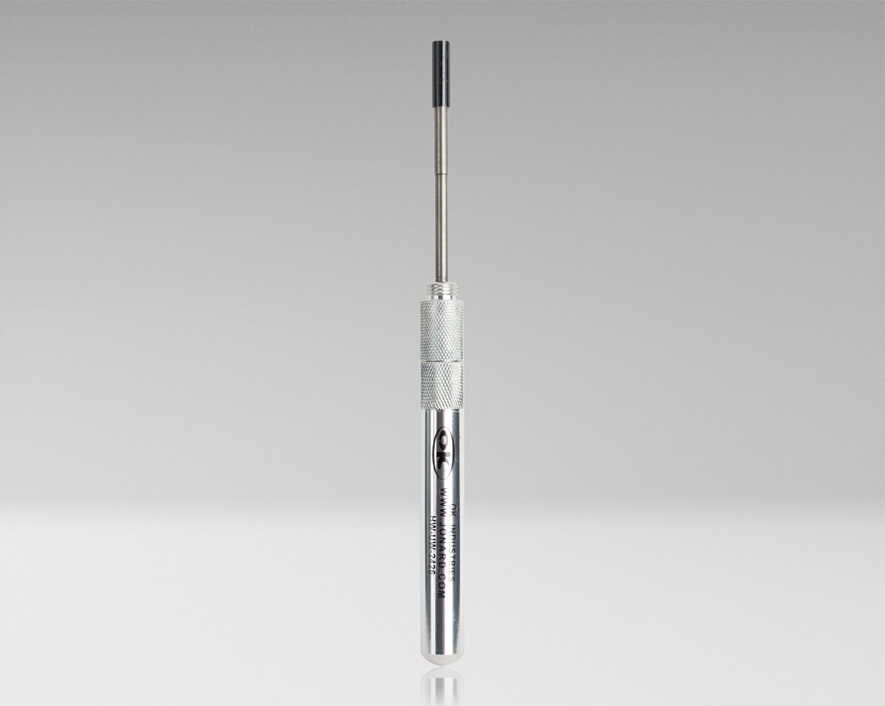

Jonard - HW-UW-2426 - Wrap-Unwrap Tool, 24-26 Awg
Part number:
HW-UW-2426
Price:

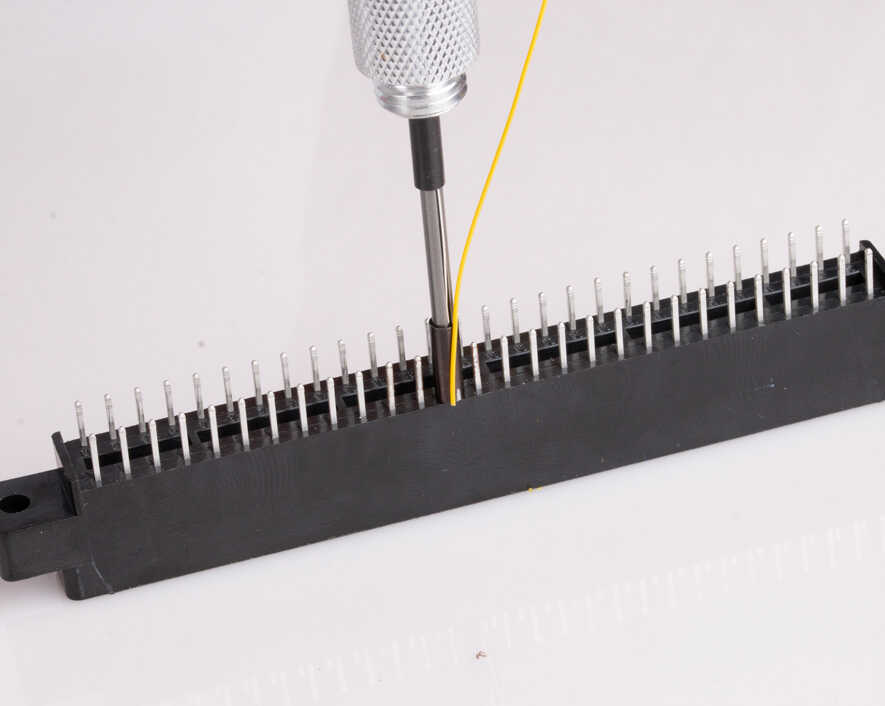

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 24-26 AWG (0.50 mm - 0.40 mm diameter) wire. This hand wrap tool also features the following:
Features:
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
| Wrap Type | Regular |
| Wrap Wire Gauge | 24-26 AWG (0.50-0.40 mm) |
| Wrap Terminal Hole Diameter | 0.075" (1.90 mm) |
| Wrap Terminal Hole Depth | 0.75" (19.05 mm) |
| Wrap Outside Diameter | 0.218" (5.54 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Unwrap Wire Gauge | 20-26 AWG (0.80-0.40 mm) |
| Unwrap Terminal Hole Diameter | 0.070" (1.77 mm) |
| Unwrap Terminal Hole Depth | 1" (25.40 mm) |
| Unwrap Outside Diameter | 0.156" (3.96 mm) |
| Handle Type | Aluminum |
| Length | 7(17.78cm) |
| Weight | 0.8 lb (363.2 g) |
