Jonard - HW-UW-26SM - Wrap-Unwrap Tool, 26 Awg
Part number:
HW-UW-26SM
Price:

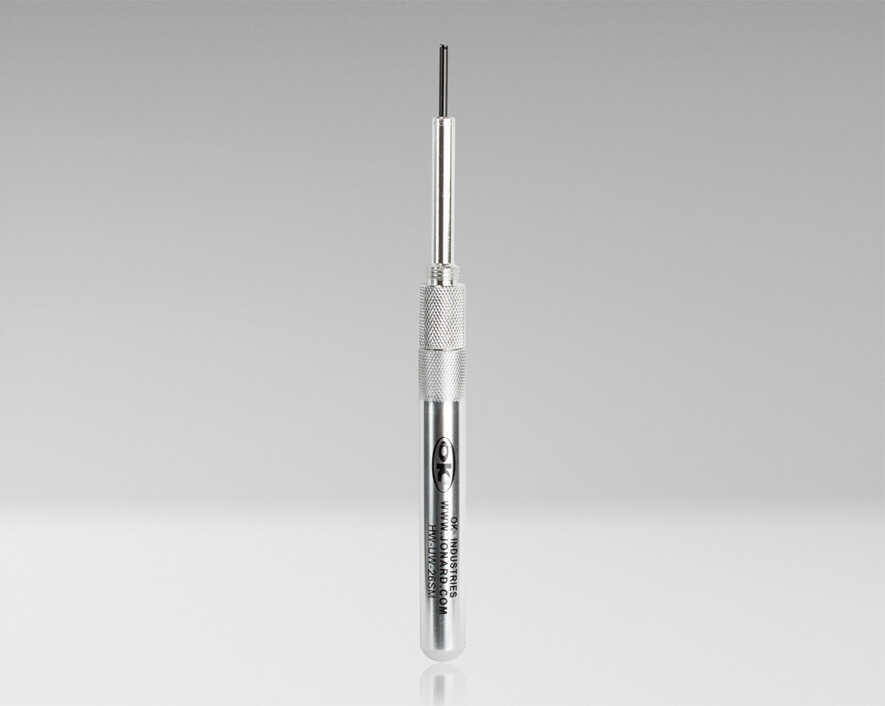

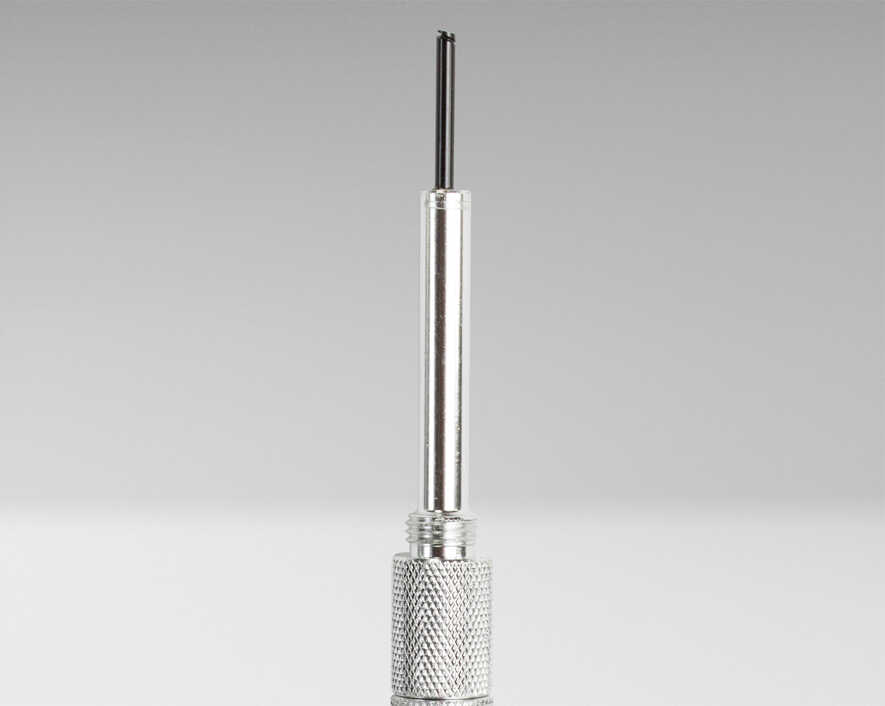

Designed to wrap or unwrap wire on binding posts, this hand wrap tool is perfect for use on 26 AWG (0.40 mm diameter) wire. This hand wrap tool also features the following:
Features:
- For use on 0.025" (0.63 mm) square terminals whose center-to-center of the pins are 0.100" (2.54 mm)
- Compact and convenient for making precise wire wraps where power wire wrapping tools are impractical
- Switch from Wrapping to Unwrapping quickly by changing the cap from one end to the other
| Specifications | |
| Wrap Type | Modified |
| Wire Gauge | 26 AWG (0.40 mm) |
| Wrap Terminal Hole Diameter | 0.031” (0.79 mm) |
| Wrap Outside Diameter | .040” (1.02mm) |
| Wrap Terminal Hole Depth | .75” (19.05mm) |
| Wrap Outside Diameter | .125” (3.17mm) |
| Wrap Post Size | 0.025” (0.63 mm) |
| Unwrap Wire Gauge | 24-32 AWG (0.5-0.20 mm) |
| Unwrap Terminal Hole Diameter | .038” (0.96mm) |
| Unwrap Terminal Hole Depth | 1” (25.40mm) |
| Features | Provides 1.5 to 2 turns of insulation |
| For Use With | .025” (0.63 mm) square terminals on .100” (2.54 mm) center to center of the pins. |
| Handle Type | Aluminum |
| UPC No | 811490013148 |
