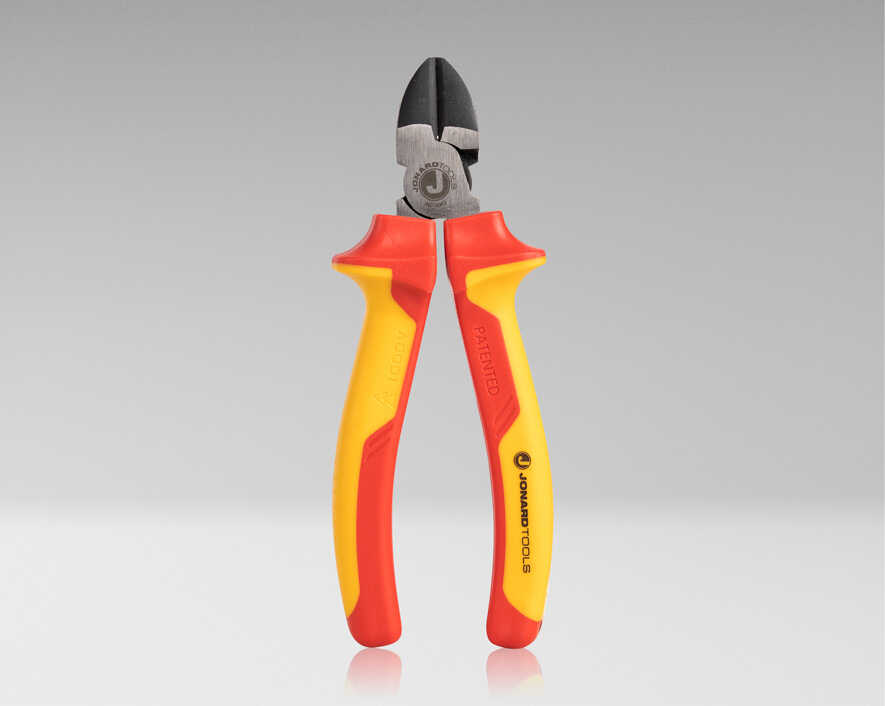

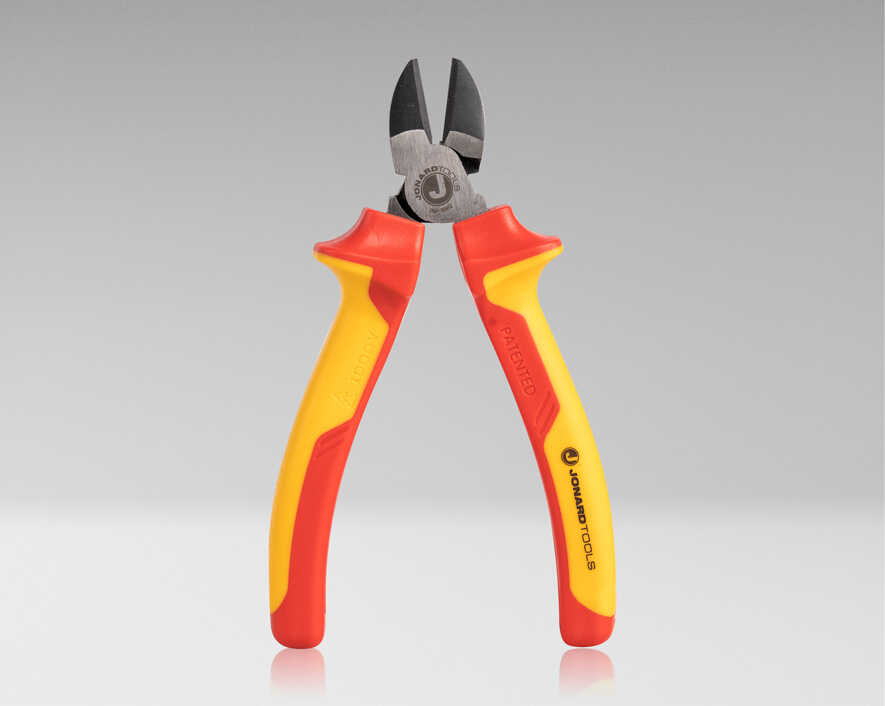

Jonard - INP-3062 - Diagonal Plier 6 1/4' Insulated
Part number:
INP-3062
Price:

Jonard's insulated pliers are made of chrome vanadium steel with induction hardened cutting edges and are heat treated for maximum strength and durability. These pliers feature the following:



Features:

  • Meets and exceeds IEC 60900, ASTM F1505-01, and VDE standards for high voltage protection
  • High leverage design enables superior cutting performance
  • Guards are integrated into the soft TPE handles to prevent contact with conductive parts
  • Tested to 10,000 VAC and rated to 1,000 VAC live use
Cut TypeDiagonal
Jaw Length0.93" (23.62 mm)
Jaw Thickness3/8" (9.53 mm)
Jaw Width7/8" (22 mm)
Tested To10,000 VAC
Rated To1,000 VAC Live
StandardsIEC 60900, ASTM F1505-01, VDE
MaterialChrome Vanadium Steel
Handle Grip MaterialTPE
Handle Grip ColorRed/Yellow
Product MaterialChrome Vanadium Steel
Handle MaterialTPE
Dimensions7.38 in x 2.3 in x 1.13 in (18.73 cm x 5.84 cm x 2.87 cm)
Weight0.64 lb (289.652 g)
