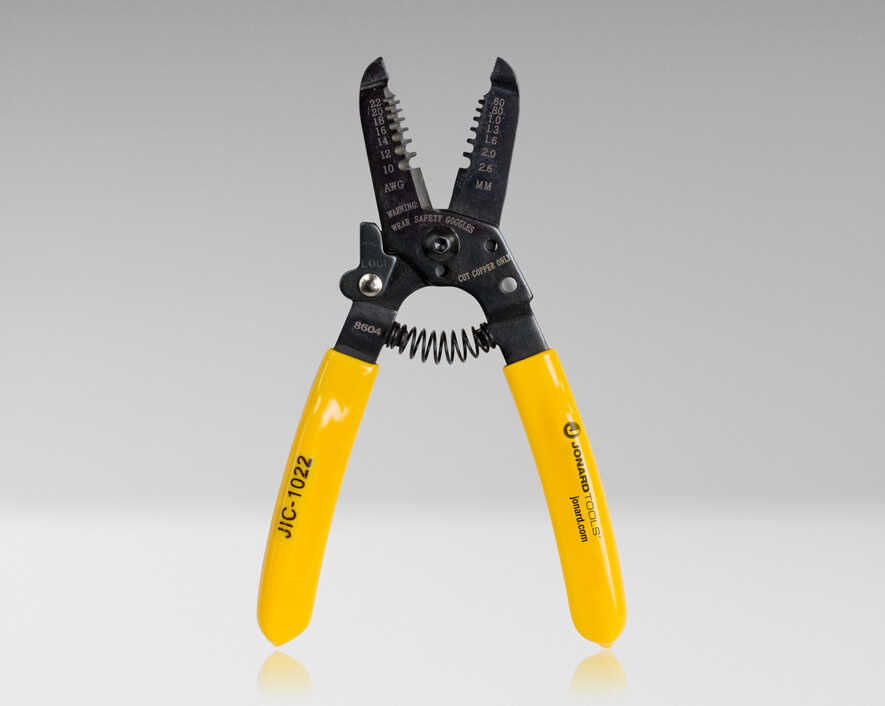

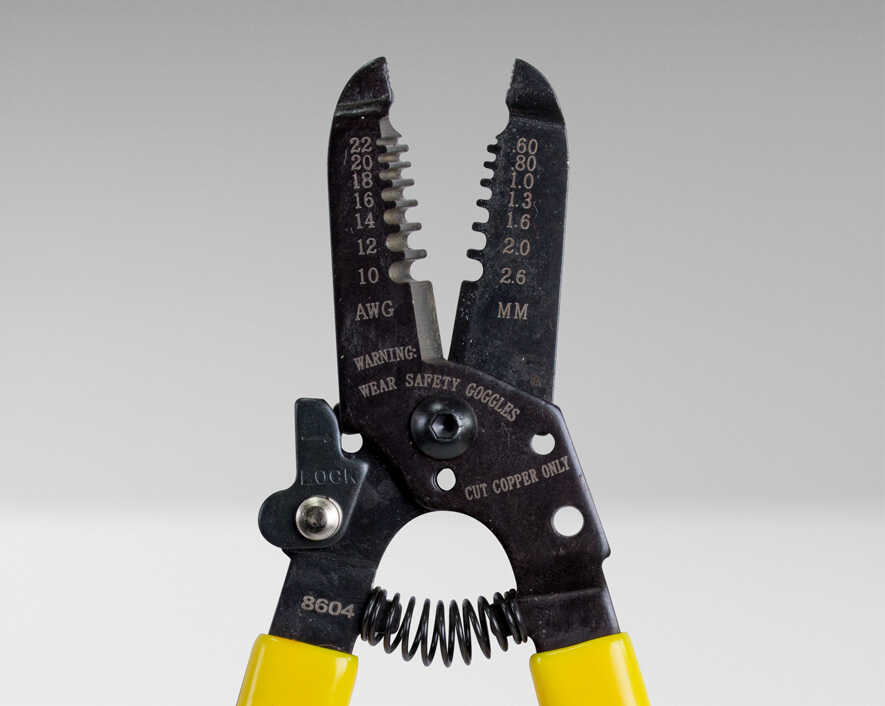

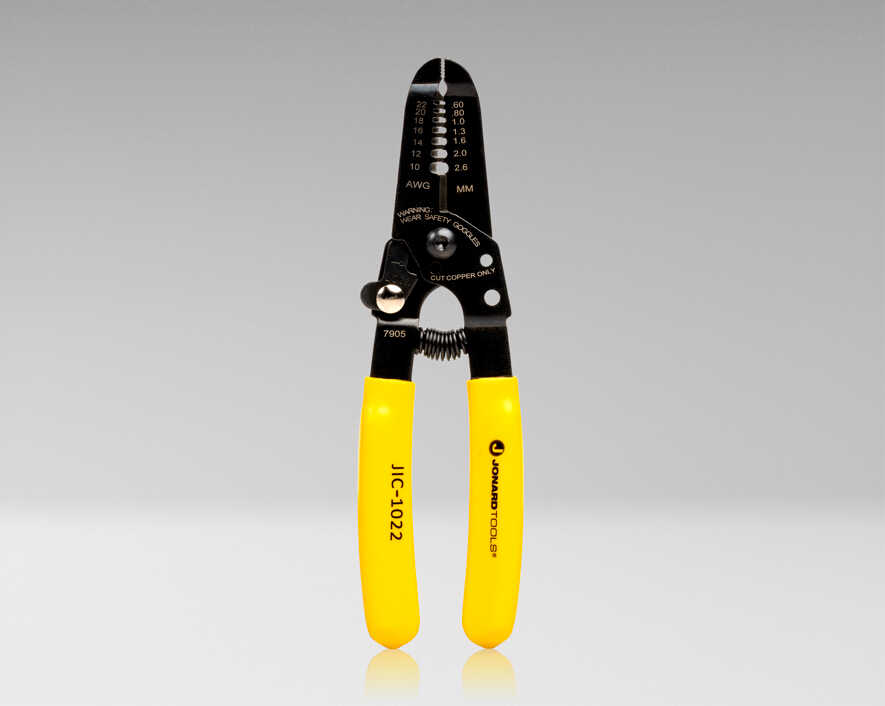

Jonard - JIC-1022 - Wire Stripper, 10-22 Awg
Part number:
JIC-1022
Price:

Designed to cut and strip the most commonly used stranded and single conductors, this wire stripper is the perfect tool for cutting and stripping wires 10 to 22 AWG (2.60 to 0.64 mm) and 2 mm-3 mm fiber jackets. This wire stripper features the following:



Features:

  • Perfect for stripping 2 mm-3 mm fiber jackets off of fiber optic cables without damaging the fiber
  • Coil spring reduces hand fatigue when using the tool for extended periods of time
  • Conveniently located bending holes makes wire looping quick and easy
  • Black oxide coated for corrosion resistance
  • Cutting edges are hardened, tempered, and ground for superior cutting and stripping​​​​​​
Cut TypeCut & Strip
Wire Gauge10-22 AWG (2.6 to 0.60 mm) Copper Wire, 2 to 3 mm Diameter Fiber Jackets
Product Main ColorYellow
Length6(16.51cm)
Weight0.26 lb (119.856 g)
Name
Description
Size
Downloads
File
Datasheet
0.2mb
