Jonard Tools - JIC-375 - Fiber Optic Stripper - Three Hole
Part number:
JIC-375
Price:

The Jonard Tools JIC-375 Three Hole Fiber Optic Stripper performs all common fiber stripping functions. This fiber optic stripper features the following:



Features:

  • Strips the 1.6 mm-3.0 mm fiber cable jacket, 600-900 micron buffer coating, and 250 micron acrylate coating to expose the 125 micron glass fiber
  • First hole strips the 1.6 mm-3.0 mm jacket exposing the optical fiber and Kevlar strength members
  • Second hole strips the buffer coating, exposing the acrylate coating on the optical fiber
  • Third hole strips the acrylate coating exposing the glass fiber without nicking or scratching the fiber
  • Angled jaw guides fiber into the 3rd hole to prevent accidental cutting of the fiber

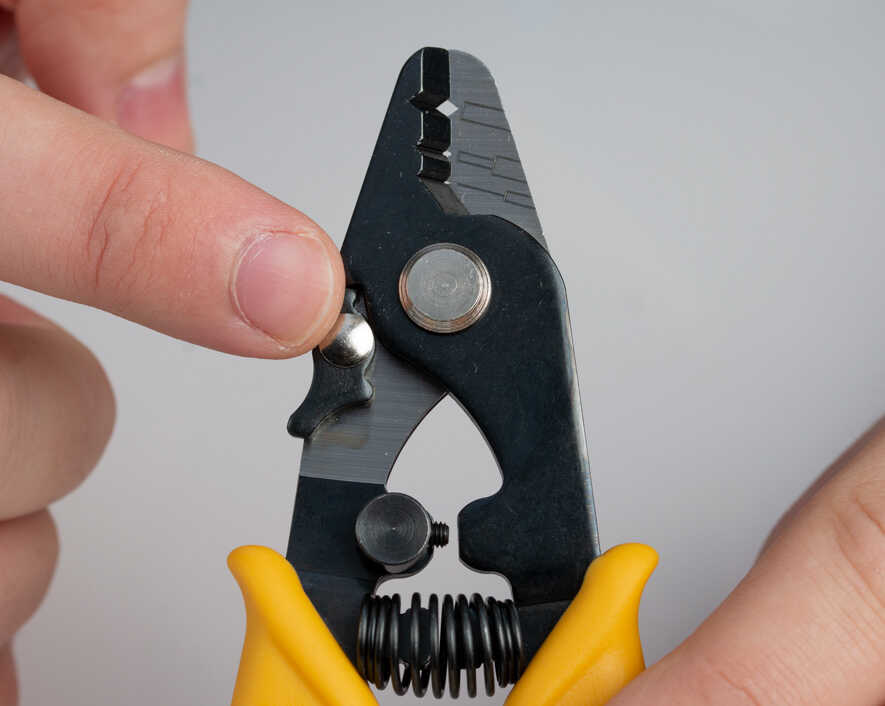

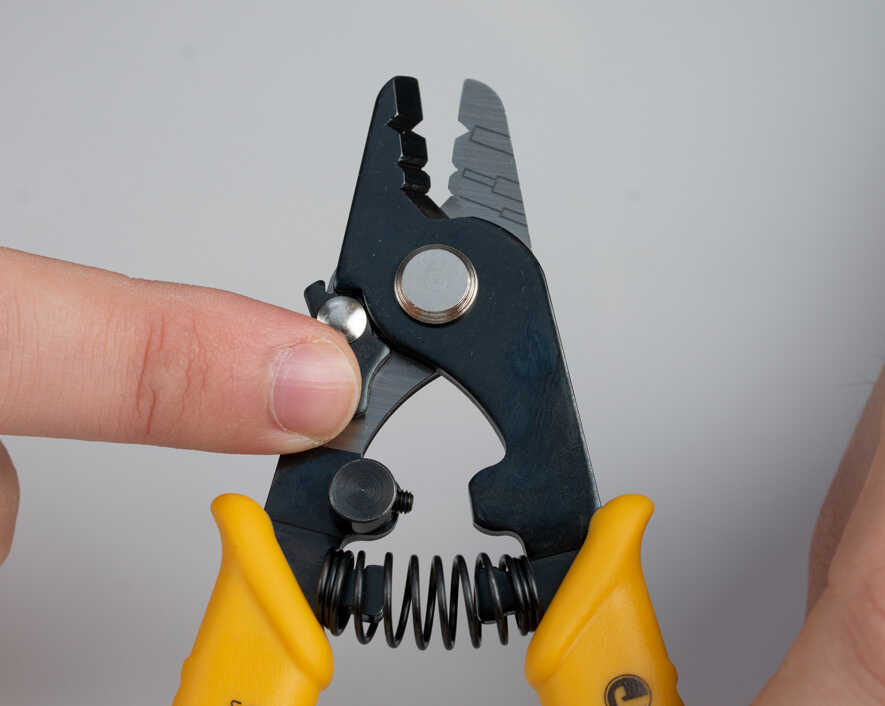

  • Safety lock allows the tool to be easily stored when not in use
  • Tool is made of strong high carbon steel and handle is made of TPR (thermoplastic rubber) for high durability and greater comfort
Specifications
Cut TypeStrip
Cable TypeJacket, Buffer, Fiber Optic
Strip Diameter250 micron, 600-900 micron, 1.6 mm-3.0 mm
Handle Grip MaterialTPR (Thermoplastic Rubber)
Handle ColorYellow
Product Main ColorYellow
Handle MaterialTPR (Thermoplastic Rubber)
Length6(15.24cm)
Weight0.22 lb (99.88 g)
UPC #811490010949
Name
Description
Size
Downloads
File
Datasheet
0.8mb
