Jonard - JIC-63020 - 9" Curved Jaw Cable Cutter
Part number:
JIC-63020
Price:

Jonard’s cable cutters are made of chrome vanadium steel with induction-hardened cutting edges for maximum strength and durability. These cable cutters feature the following:



Features:

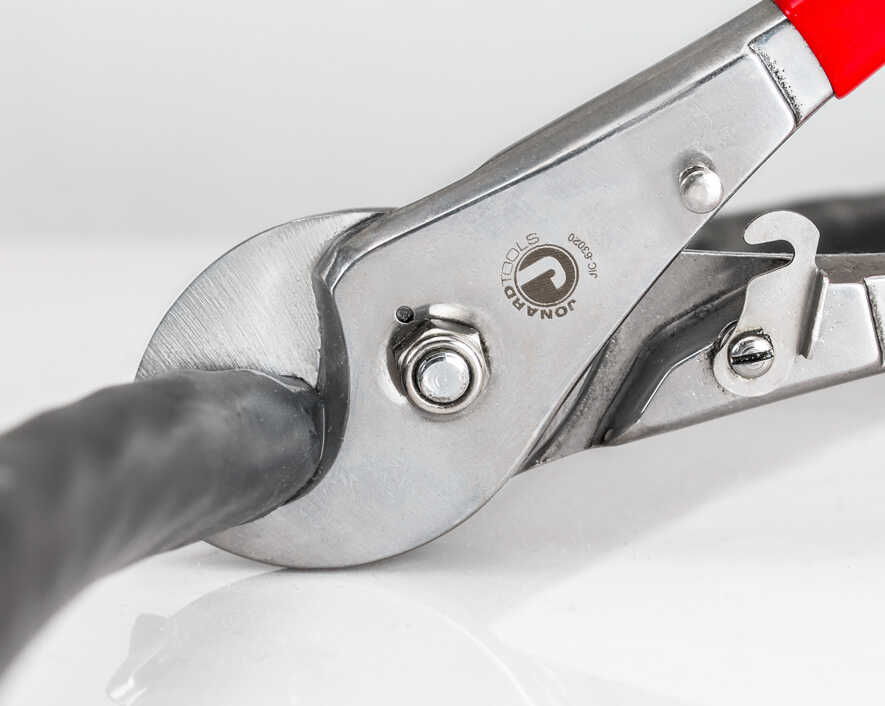

  • Curved jaw to provide superior holding for a cleaner and more concentric cut
  • Shear-type jaw for easily cutting through up to 100-pair 24 AWG cable
  • Unique locking mechanism allows simple unlocking of handles by pressing them together
  • Ergonomically designed handle with dipped plastic grip for greater comfort and torque
  • This product is not for use on steel or ACSR type cable
  • Jaws open up to 7/8” (22.22 mm), perfect for 2/0 Copper, 4/0 Aluminum, and 100-pair (24 AWG) Cable
  • Lifetime Warranty
Specifications
Conductor MaterialAluminum, Copper
Maximum Cable Diameter2/0 Copper, 4/0 Aluminum, 100-pair Cable (24 AWG)
Overall Length9" (228.6 mm)
Jaw Length1" (25.4 mm)
Jaw Thickness7/16" (11.11 mm)
Jaw Width7/8" (22 mm)
Product MaterialChrome Vanadium Steel
Weight0.86 lb (388.624 g)
UPC #811490018983
