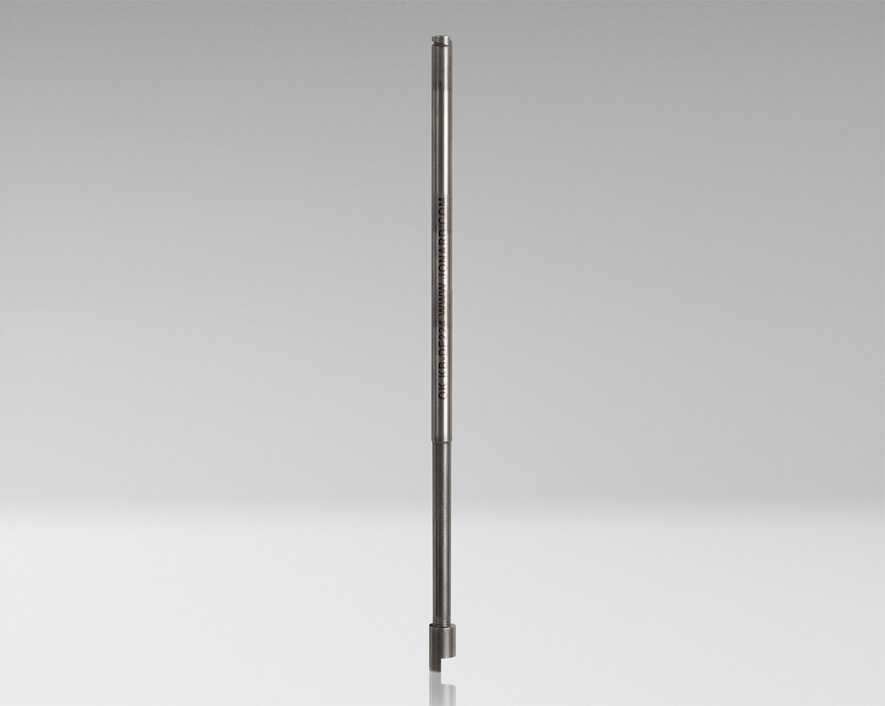

Jonard - KB-DF224 - Wrap/Unwrap Bit, 22-24 AWG
Part number:
KB-DF224
Price:

Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 22-24 AWG wire. This bit features the following:



Features:

  • Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
  • Maximizes the efficiency of wire wrapping and unwrapping 22-24 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
Specifications
Wrap FunctionWrap, Unwrap
Wire Gauge22-24 AWG (0.65-0.50 mm)
Minimum Terminal Diagonal0.054" (1.37 mm)
Maximum Terminal Diagonal0.073" (1.85 mm)
Terminal Hole Depth0.50" (12.70 mm)
Terminal Hole Diameter0.075" (1.9 mm)
Effective Radius0.111" (2.82 mm)
Length5(13.0175cm)
Weight0.03 lb (13.62 g)
UPC #811490013179
