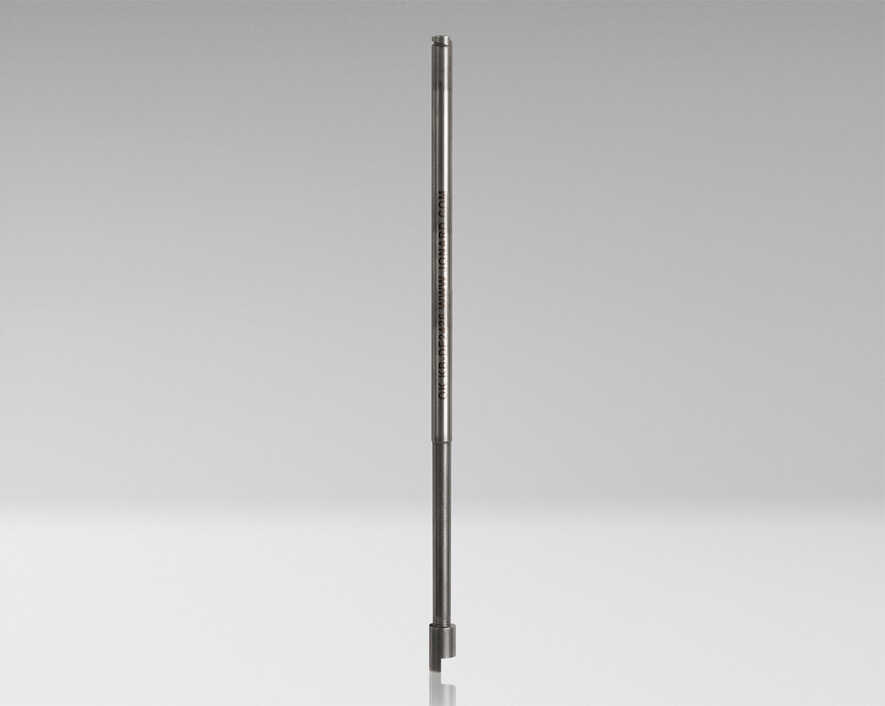

Jonard - KB-DF2426 - Wrap/Unwrap Bit, 24-26 AWG
Part number:
KB-DF2426
Price:

Designed to work with our P-DF2426 Replacement Sleeve Assembly and PTX series tools, this wrap/unwrap bit is perfect for wrapping or unwrapping 24-26 AWG wire. This bit features the following:



Features:

  • Precision machined for high-quality wire wrapping in the clockwise direction and unwrapping in the counterclockwise direction
  • Maximizes the efficiency of wire wrapping and unwrapping 24-26 AWG wires, while eliminating the need to purchase or carry other extra tools for unwrapping
Specifications
Wrap FunctionWrap, Unwrap
Wire Gauge24-26 AWG (0.50-0.40 mm)
Minimum Terminal Diagonal0.054" (1.37 mm)
Maximum Terminal Diagonal0.073" (1.85 mm)
Terminal Hole Depth0.50" (12.70 mm)
Terminal Hole Diameter0.075" (1.90 mm)
Effective Radius0.098" (2.48 mm)
Wrap Post Size0.045" (1.14 mm)
Length5(13.0175cm)
Weight0.03 lb (12.258 g)
UPC #811490013384
