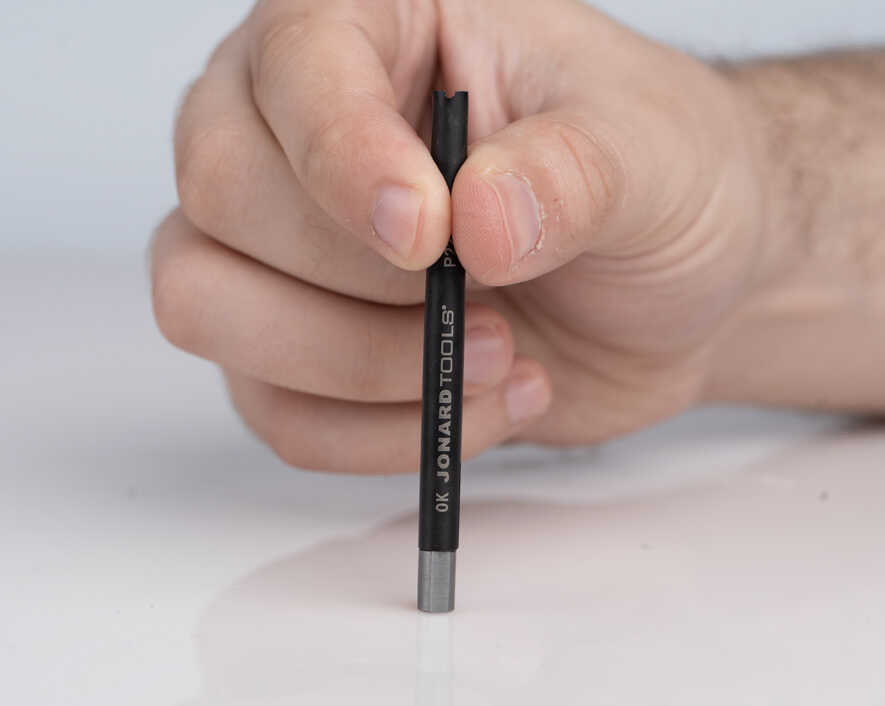

Jonard - KB18 - Wire Wrapping Bit, 18 AWG
Part number:
KB18
Price:
Fully compatible with any make or model of wire wrapping tools, this 3" wire wrapping bit is perfect for wrapping 18 AWG wire around binding posts when used in conjunction with a wire wrapping tool.
| Specifications | |
| Sleeve Part No. | P194LN (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 18 AWG (1 mm) |
| Minimum Terminal Diagonal | 0.060" (1.52 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Terminal Hole Depth | 1" (25.4 mm) |
| Effective Radius | 0.15" (3.81 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 3(7.9375cm) |
| Weight | 0.02 lb (9.08 g) |
| UPC # | 811490013445 |
