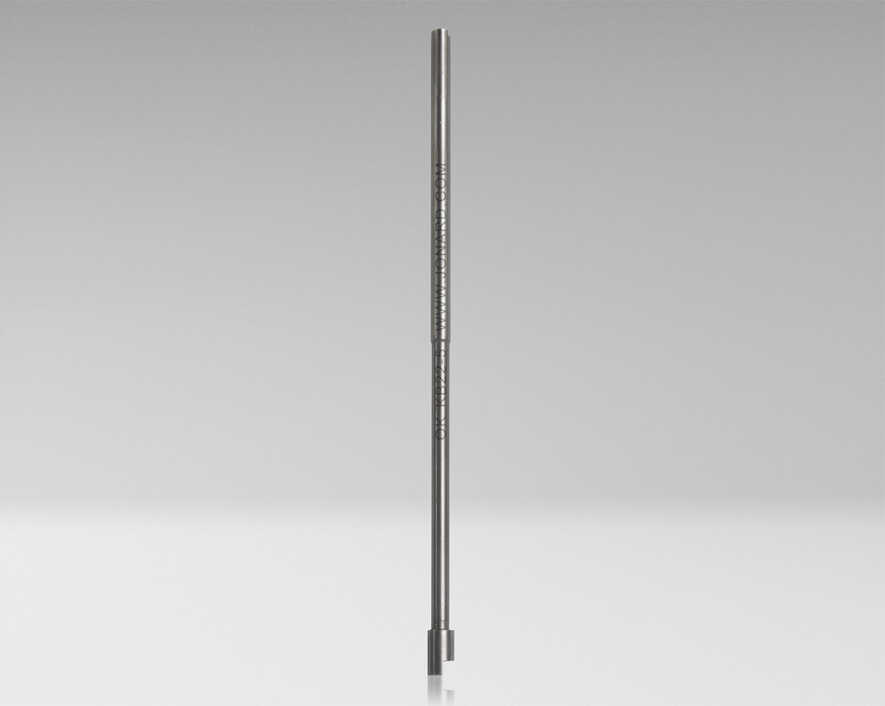

Jonard - KB22-5 - Wire Wrapping Bit, 22 AWG, 5"
Part number:
KB22-5
Price:
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 22 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2224-5 and P2224-5INS
| Specifications | |
| Sleeve Part No. | P2224-5 and P2224-5INS (sold separately) |
| Wrap Function | Wrap |
| Wrap Type | Regular |
| Wire Gauge | 22 AWG (0.65 mm) |
| Minimum Terminal Diagonal | 0.054" (1.37 mm) |
| Maximum Terminal Diagonal | 0.073" (1.85 mm) |
| Terminal Hole Depth | 0.75" (19.05 mm) |
| Terminal Hole Diameter | 0.075" (1.9 mm) |
| Effective Radius | 0.117" (2.97 mm) |
| Wrap Post Size | 0.045" (1.14 mm) |
| Length | 5(13.0175cm) |
| Weight | 0.03 lb (12.712 g) |
| UPC # | 811490013421 |
